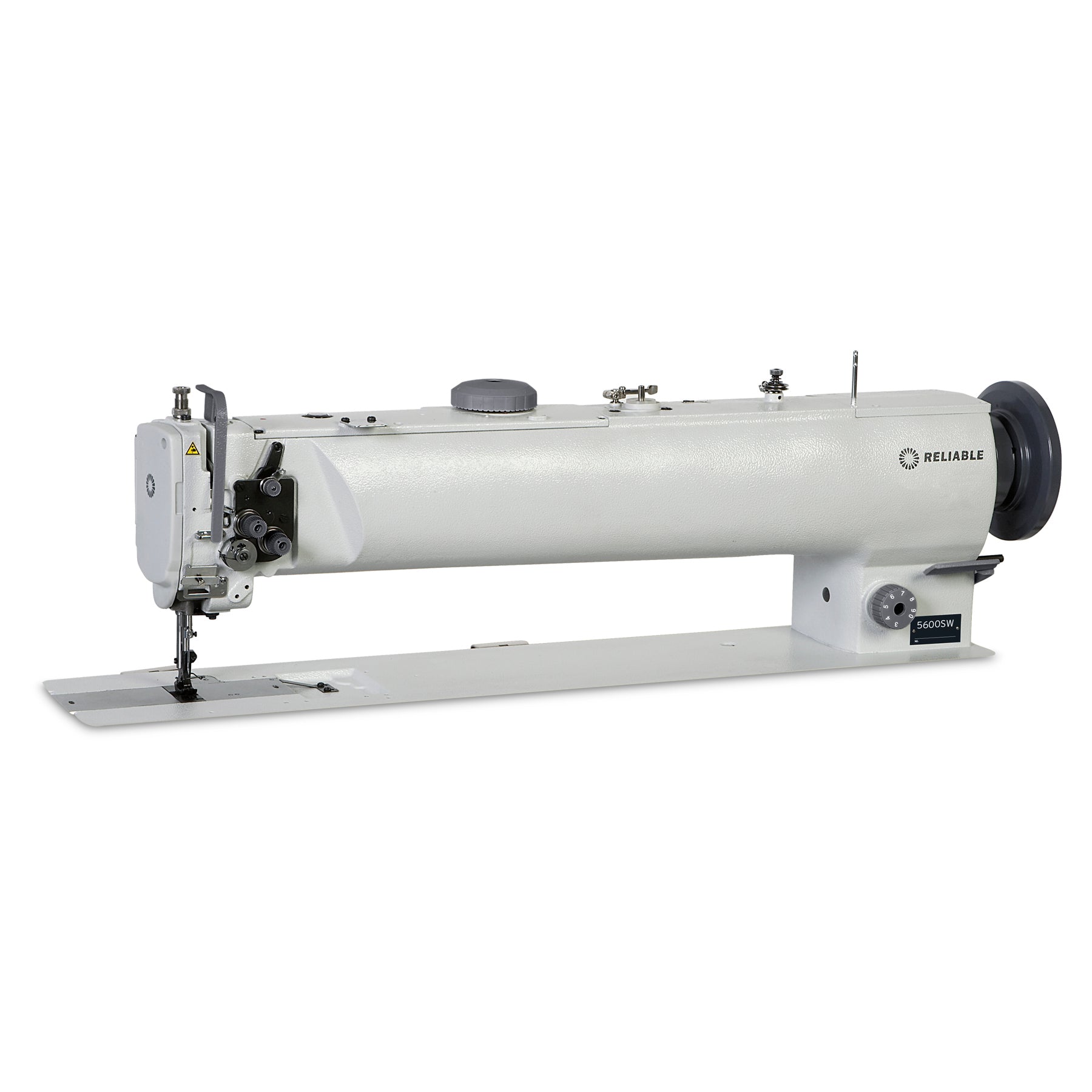

5600SW 25" LONG ARM WALKING FOOT SEWING MACHINE

Regular price $4,299.00 SHIPPED ON PALLET - TERMS & CONDITIONS APPLY.
SEE SHIPPING SECTION FOR DETAILS.
/

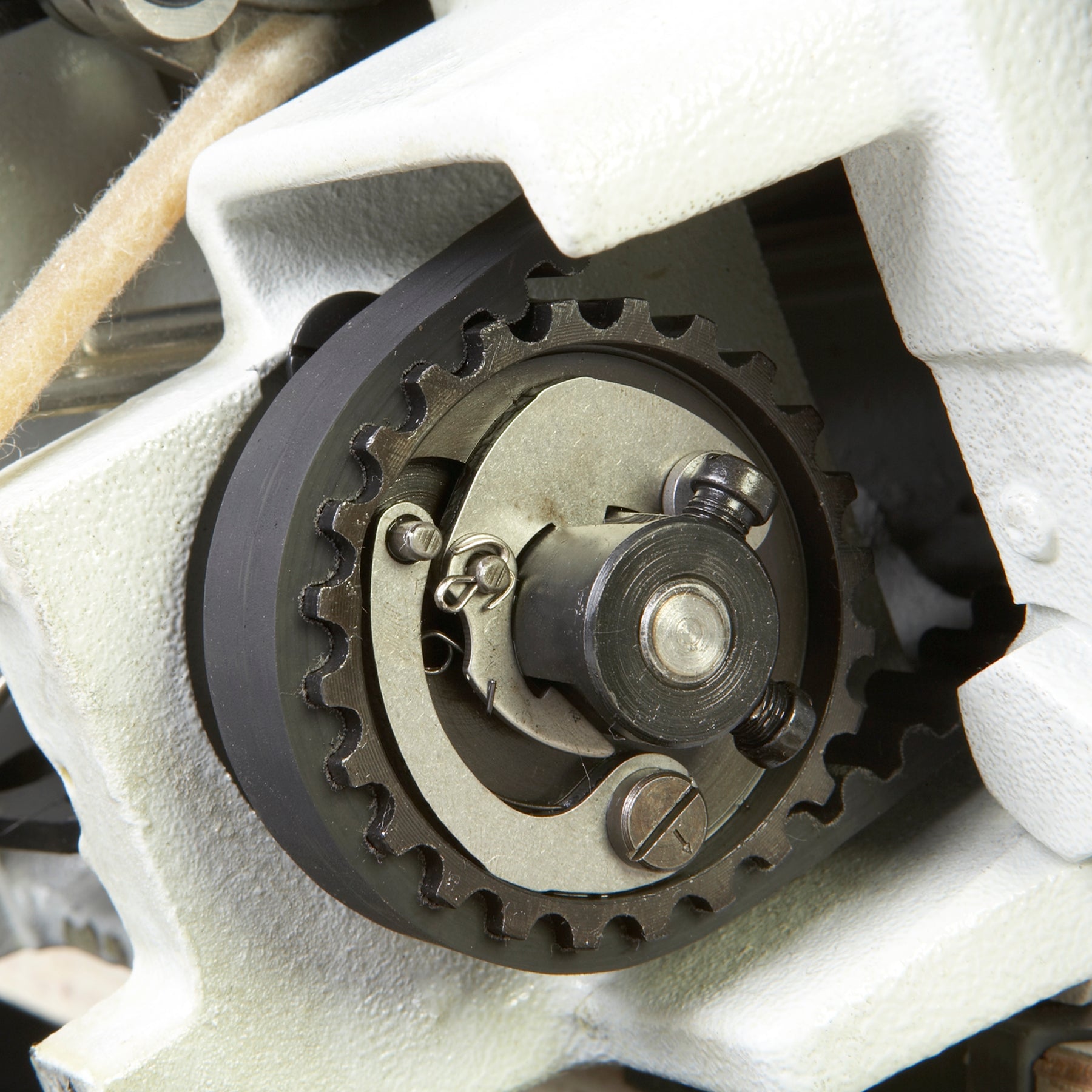

The 5600SW single needle, compound feed machine is a big machine. It’s so large in fact that we’ve added a bit of “Reliable magic” by including our #1 SewQuiet servomotor with the synchronizer so you can have all of the advantages of needle positioning functionality at no extra cost. A safety clutch, upper feed adjustment and a built-in bobbin winder complete this very capable machine for sewing medium to heavy weight leather, upholstery, canvas and synthetics.

*Shipped on a pallet. Freight will be calculated at checkout.

QUALITY YOU CAN COUNT ON

For sewing leather, upholstery, canvas, and synthetics, the 5600SW with safety clutch, drop in bobbin and automatic oiling offers the whole package. Low noise and vibration design, outstanding build quality and reliability.

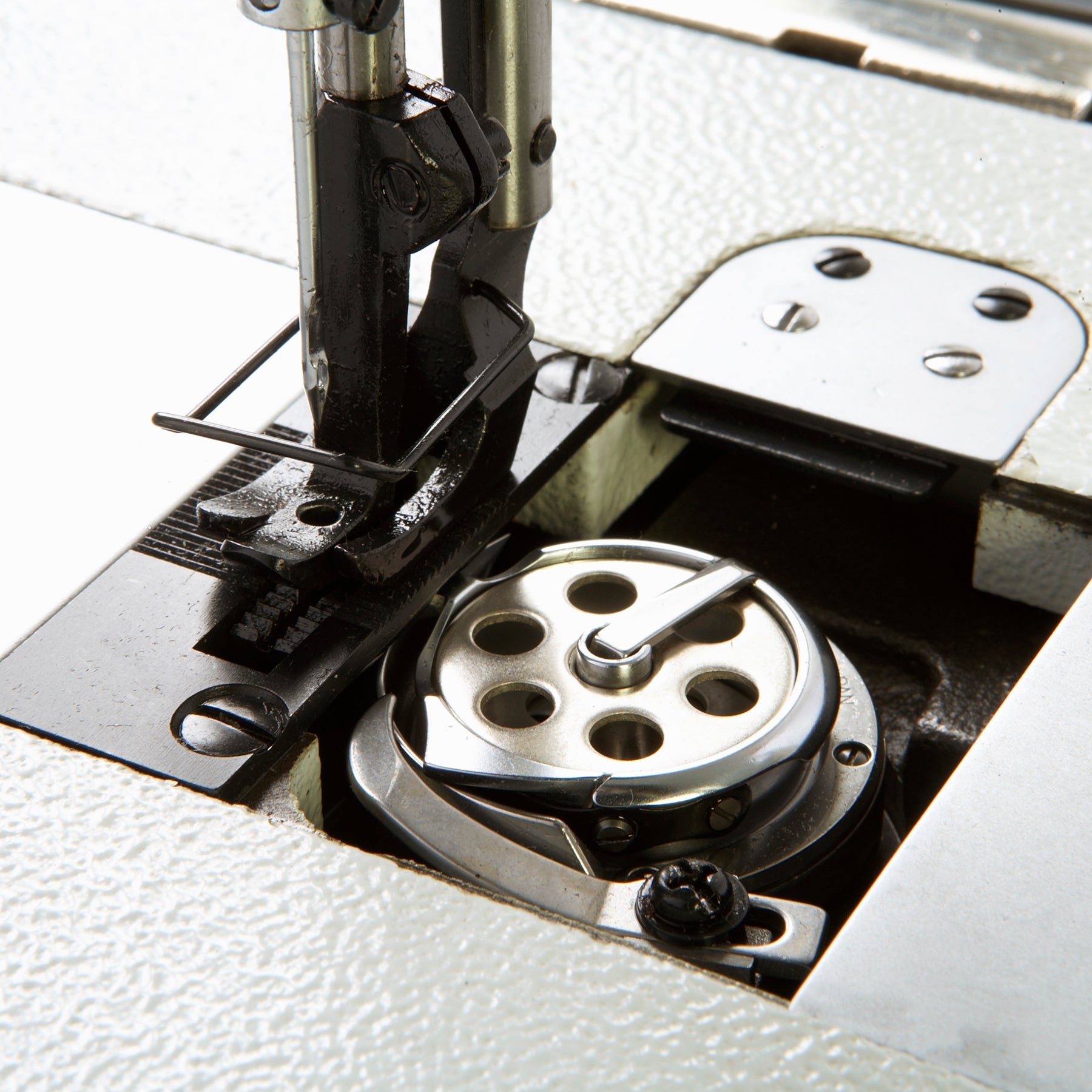

TOP LOAD BOBBIN

To assist with long seams and frequent bobbin changes, the 5600SW is equipped with a top-loading bobbin.

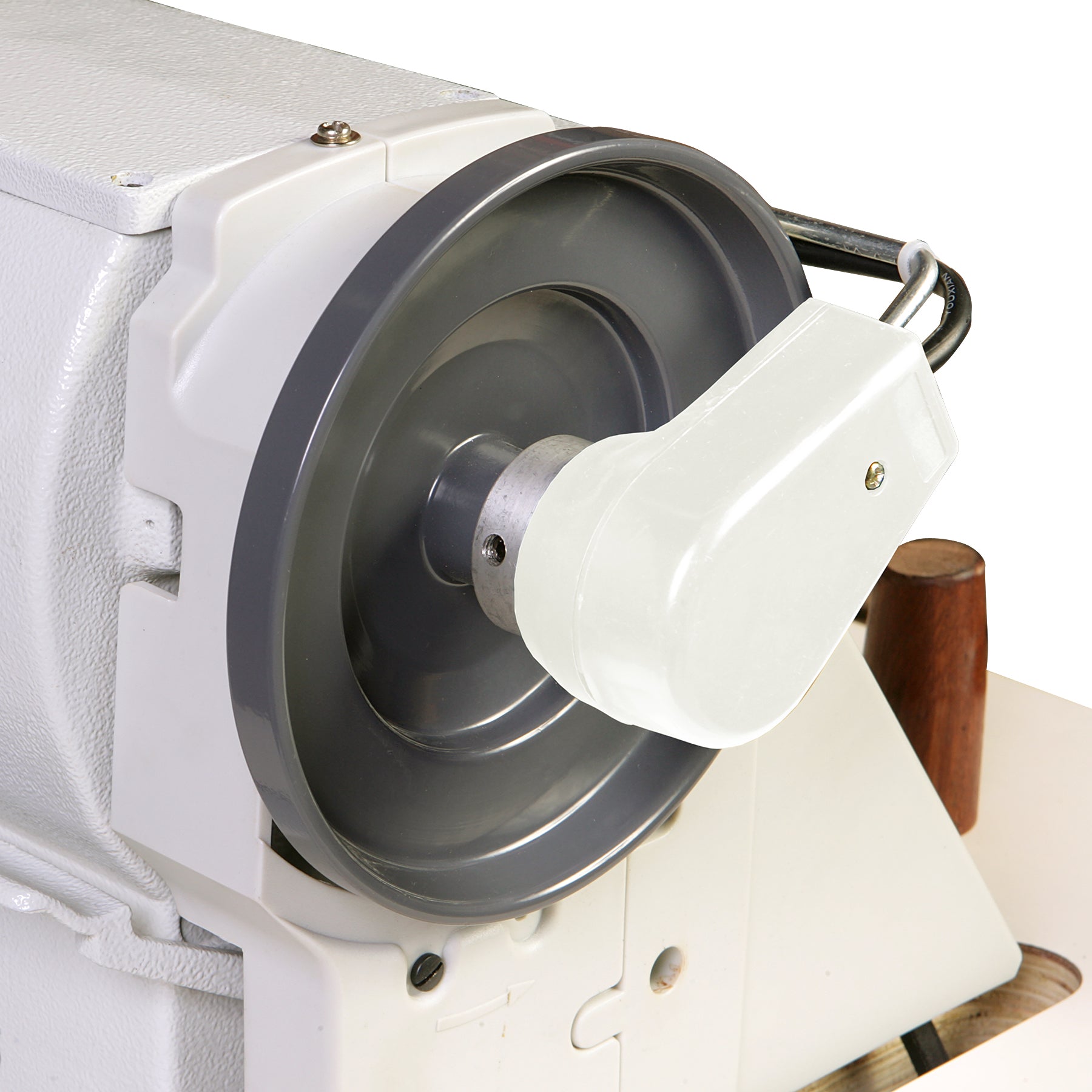

NEEDLE POSITIONER

The needle positioning feature automatically stops the needle in the up or down position, eliminating the need for the operator to manually reach over to turn the handwheel.

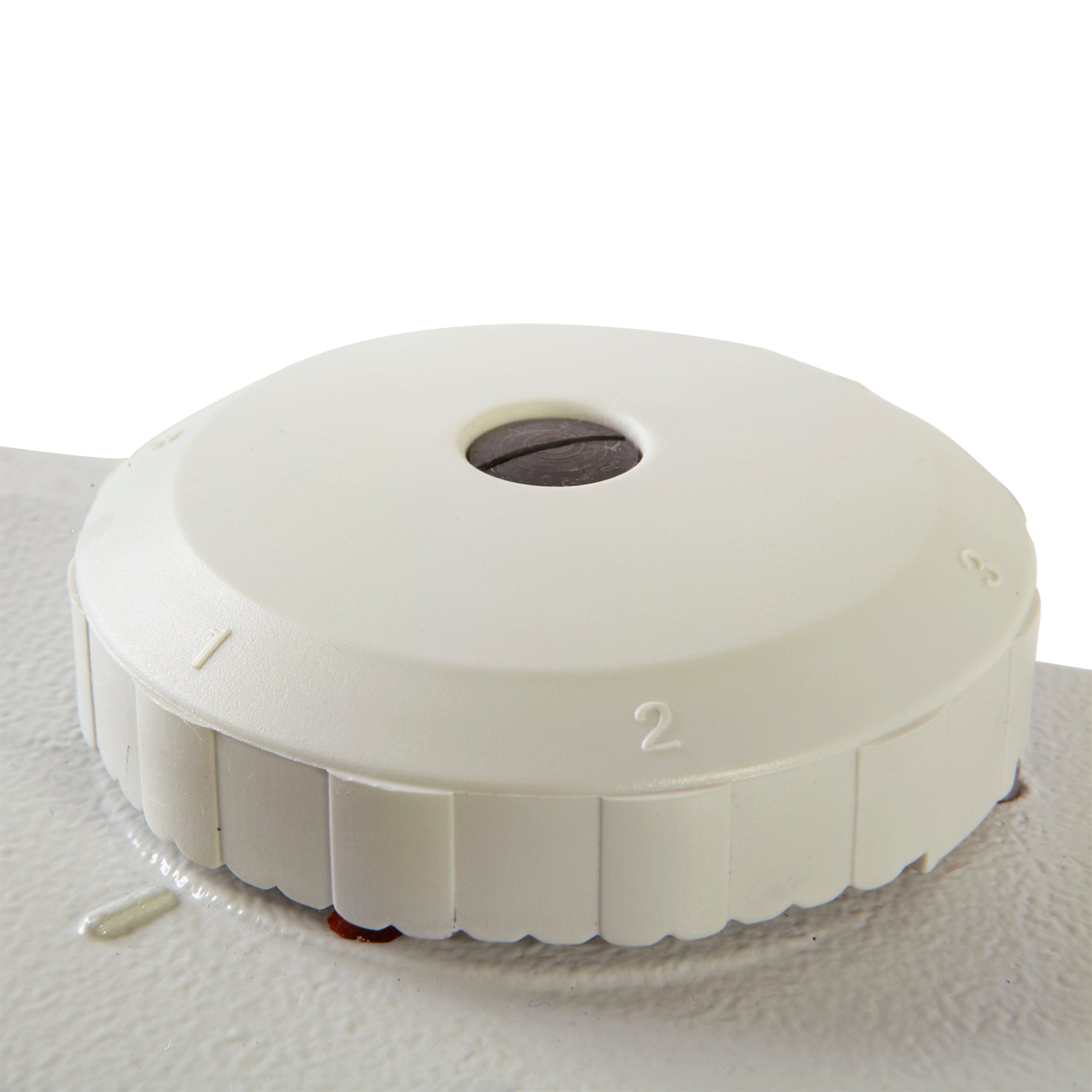

UPPER FEED ADJUSTMENT

For heavier seam clearance, a step adjustment from a minimum of 2mm to a maximum of 6mm.

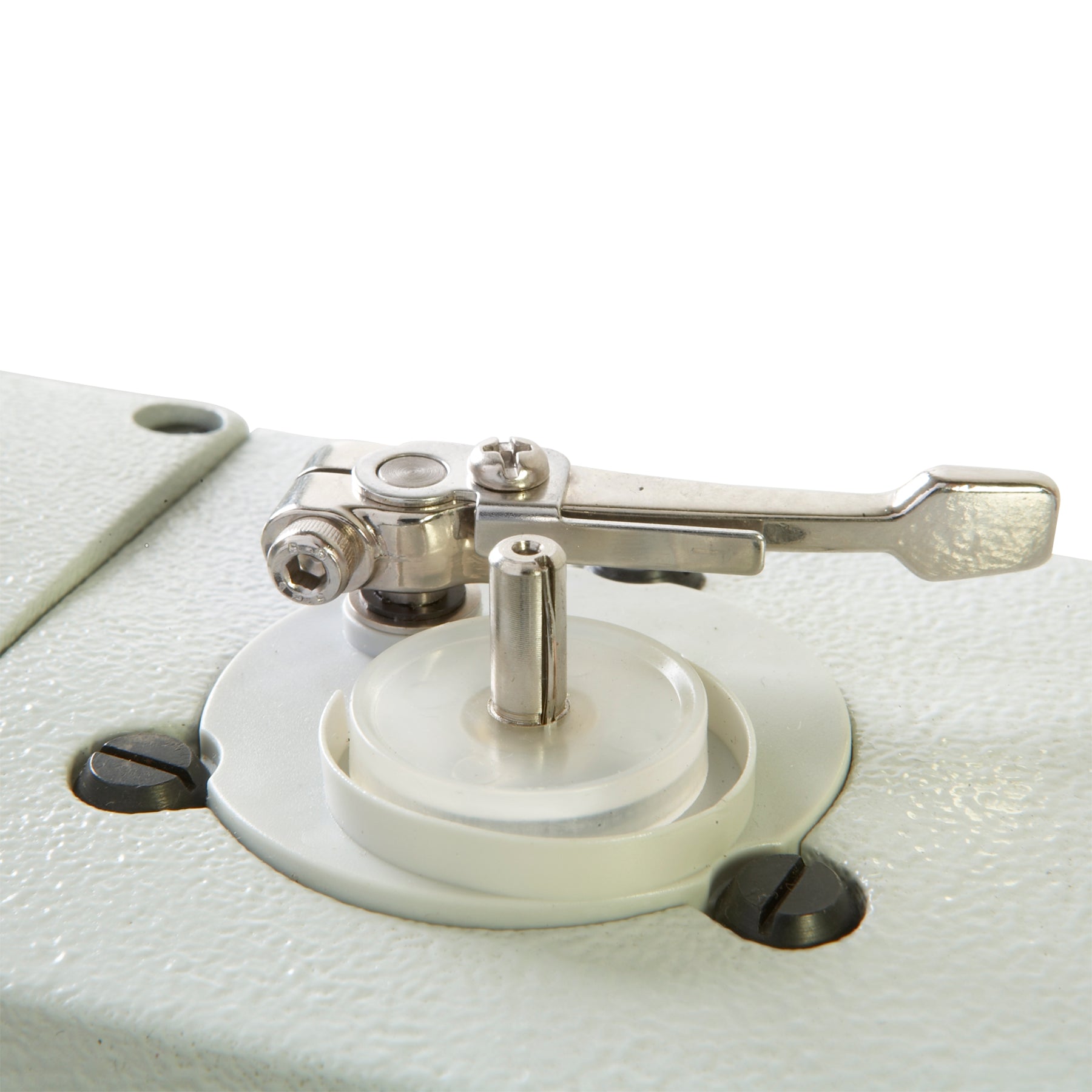

BUILT-IN BOBBIN WINDER

For added convenience, the bobbin winder on the 5600SW' is built-in to the front of the machine head.

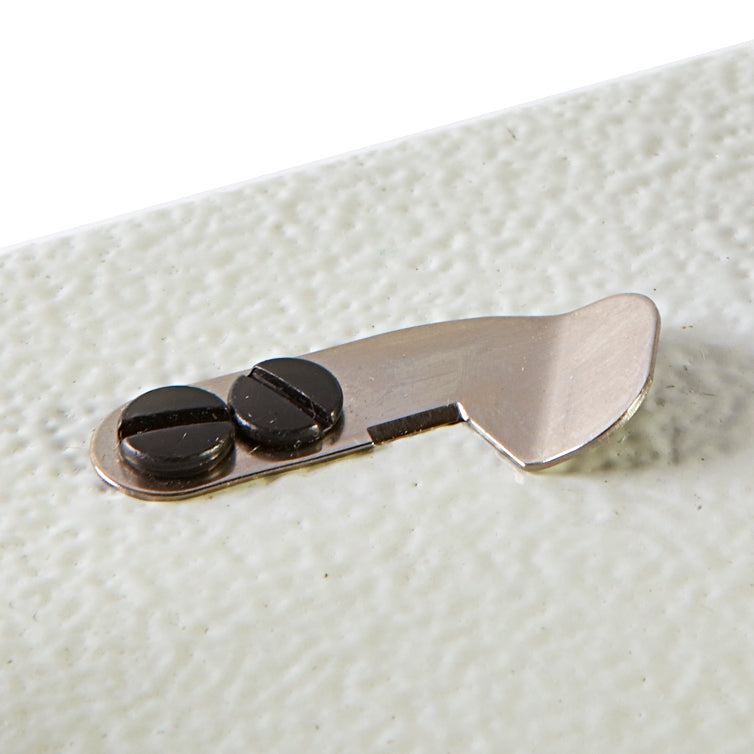

BOBBIN THREAD CUTTER

Conveniently cut the bobbin thread with the supplied thread cutter.

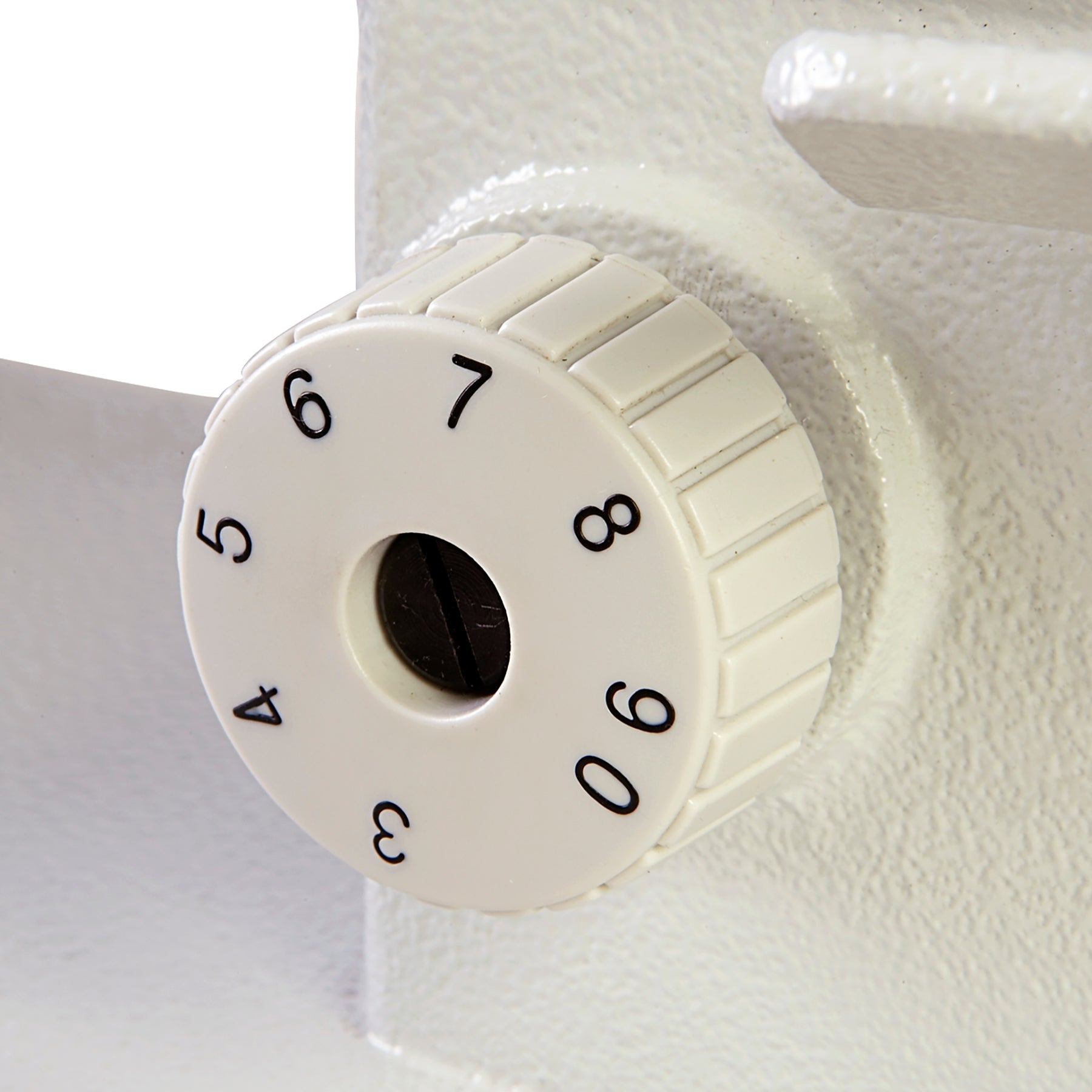

STITCH DIAL REGULATOR

The stitch dial provides a simple adjustment (0-9 mm) for the length of the stitch.

SUPERIOR STAND

Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32" steel.

DETAILS, DETAILS…

Maximum sewing speed 1,800 rpm

Stitch length 0 - 0.35 / 0 – 9 mm

Needle bar stroke 1.41” / 36 mm

Pressure foot lift by hand 0.35 / 9mm by knee 0.63” / 16mm

Needle system #135 x 17

Thread take up stroke 2.76” / 70 mm

Upper feed adjustment dial

Feed dog single row

Hook type rotary – auto lubricated
