Regular price $2,699.00 SHIPPED ON PALLET - TERMS & CONDITIONS APPLY.
SEE SHIPPING SECTION FOR DETAILS.
/

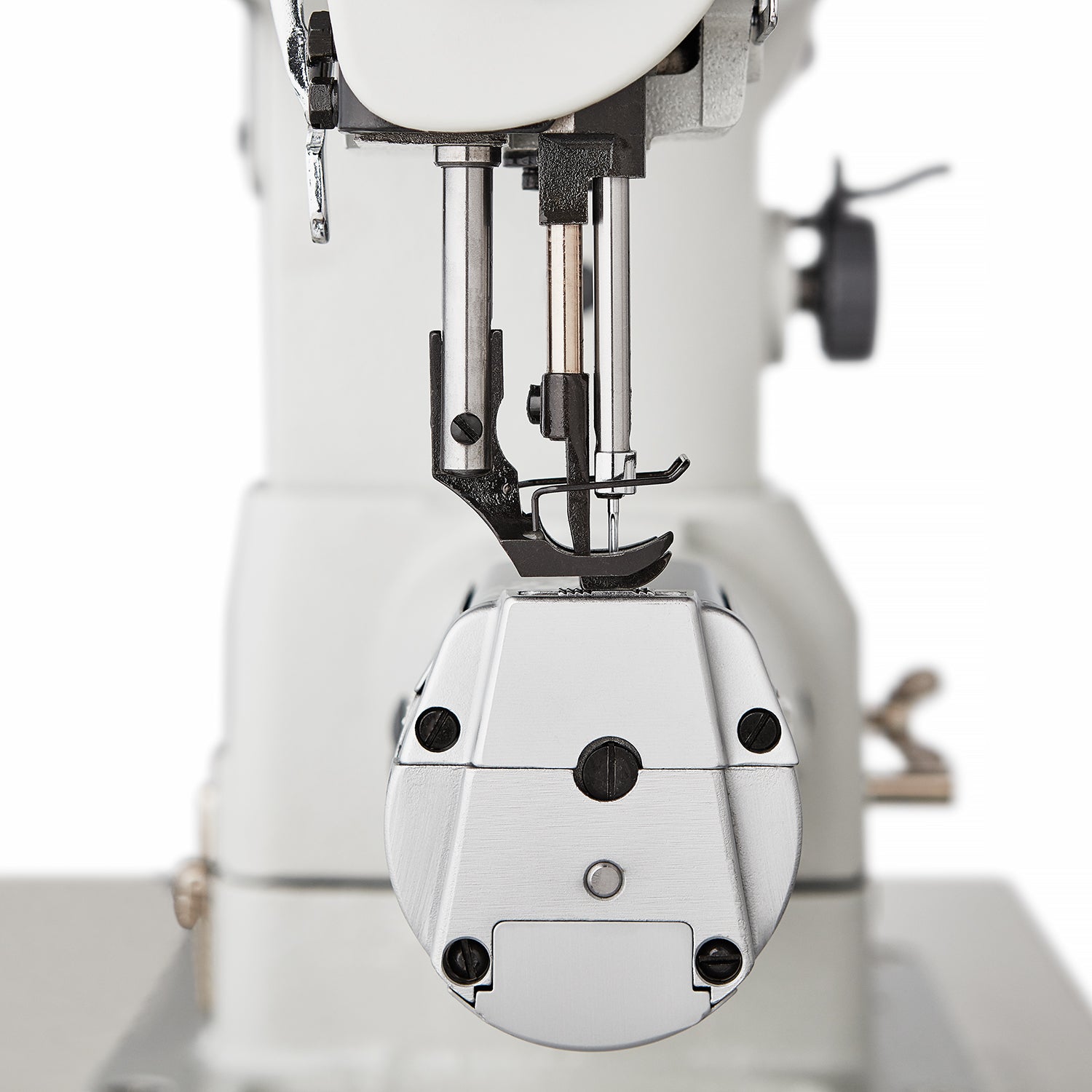

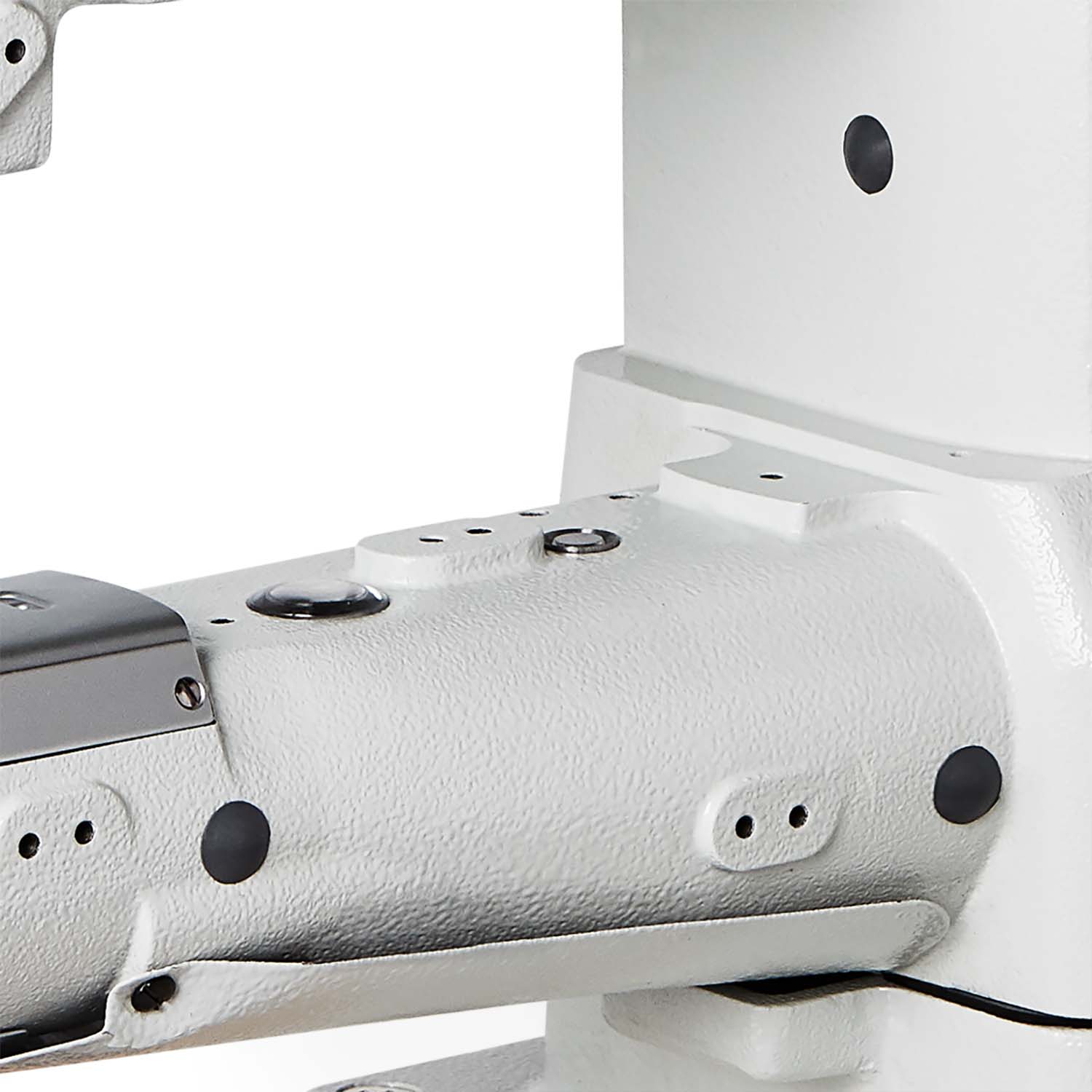

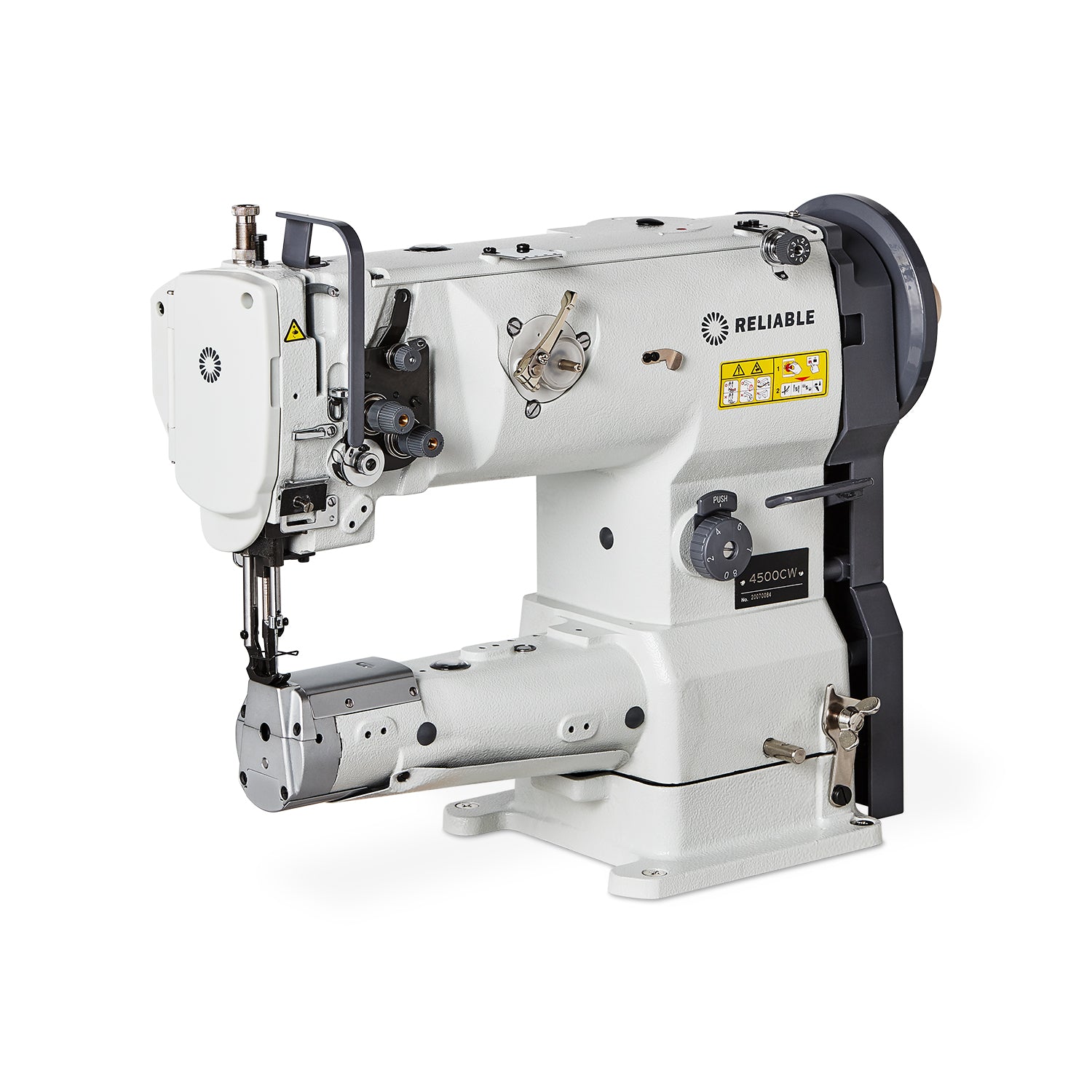

The 4500CW is our new flagship cylinder walking foot, compound feed sewing machine. Whether you’re sewing cushions, bags, heavy-canvas, or a variety of other heavy materials, the 4500CW is built tough. Equipped with a large take-up mechanism with dual tension adjustments and a drop-in bobbin for easy access. We’ve added a synchronizer for the SewQuiet 6000SM motor to make corner stitching easier, a safety clutch mechanism, and a built-in bobbin winder.
QUALITY YOU CAN COUNT ON

For sewing leather, upholstery, canvas, and synthetics, the 4500CW with vibrating binder (to eliminate the “roping” effect) offers the whole package. Low noise and vibration design, outstanding build quality and reliability and the industries #1 DC servomotor.

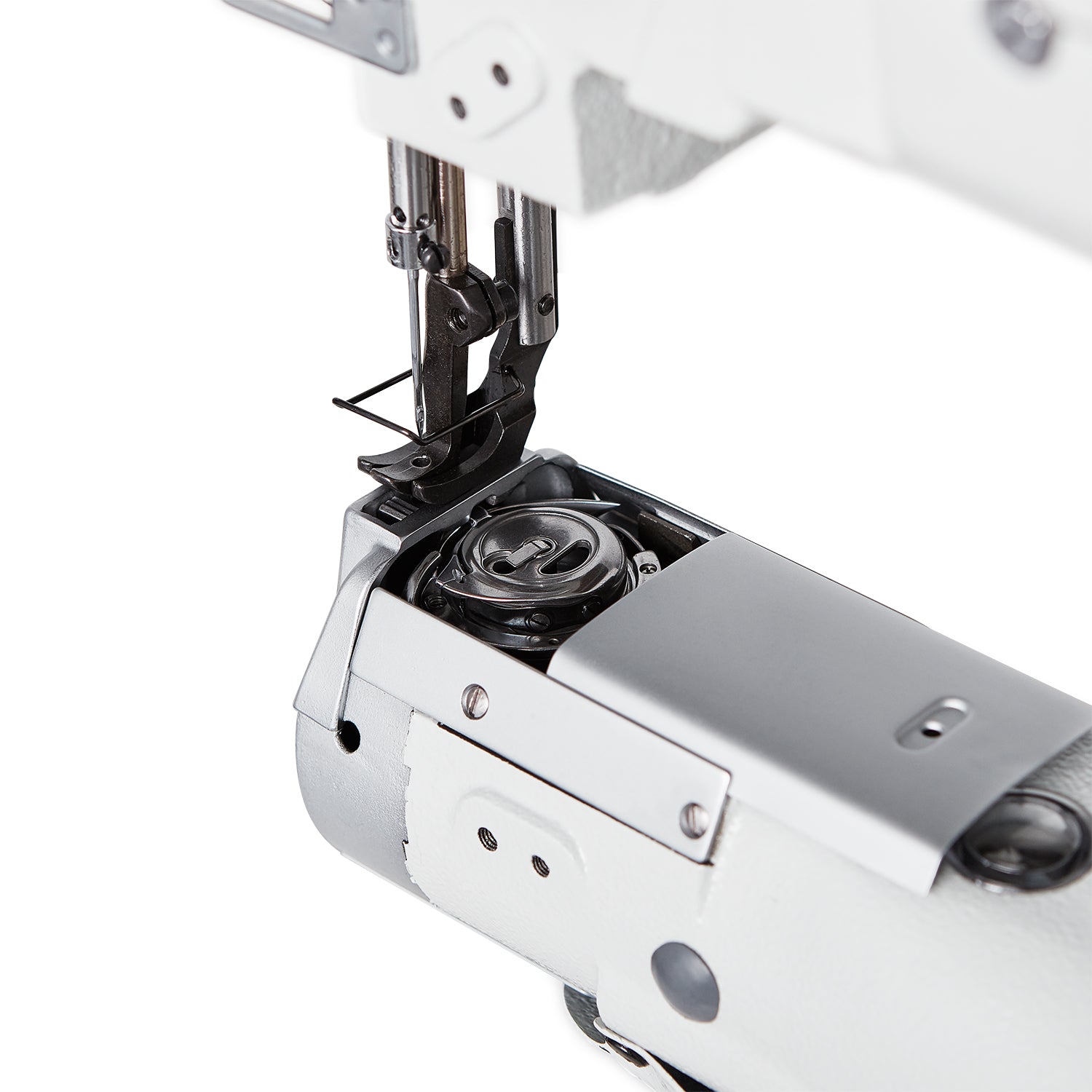

HORIZONTAL BOBBIN LOAD

The 4500CW’s drop-in horizontal bobbin load allows for a smoother, efficient sewing experience.

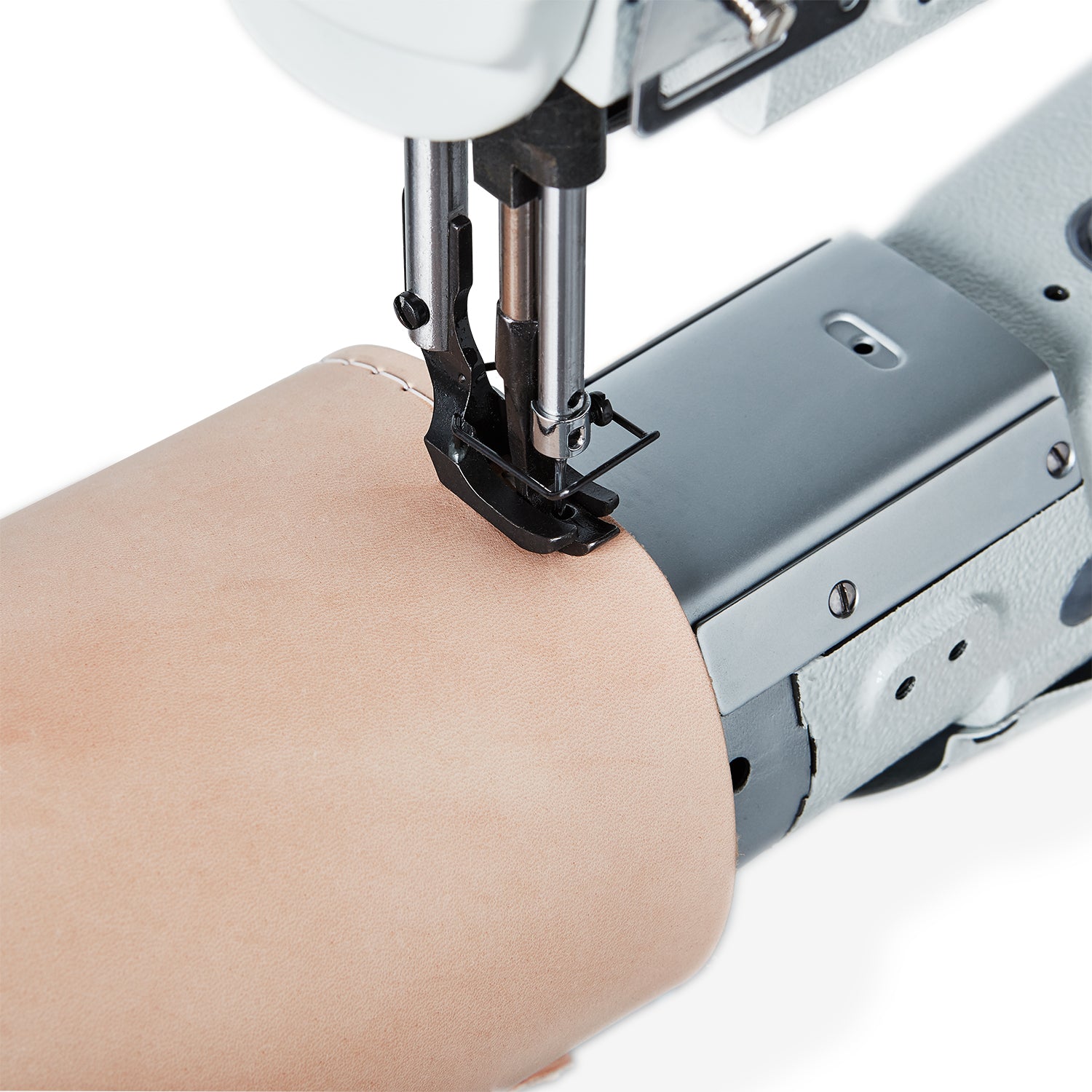

SEW WITH EASE

The 4500CW has ability to sew medium to heavy weight fabrics with ease.

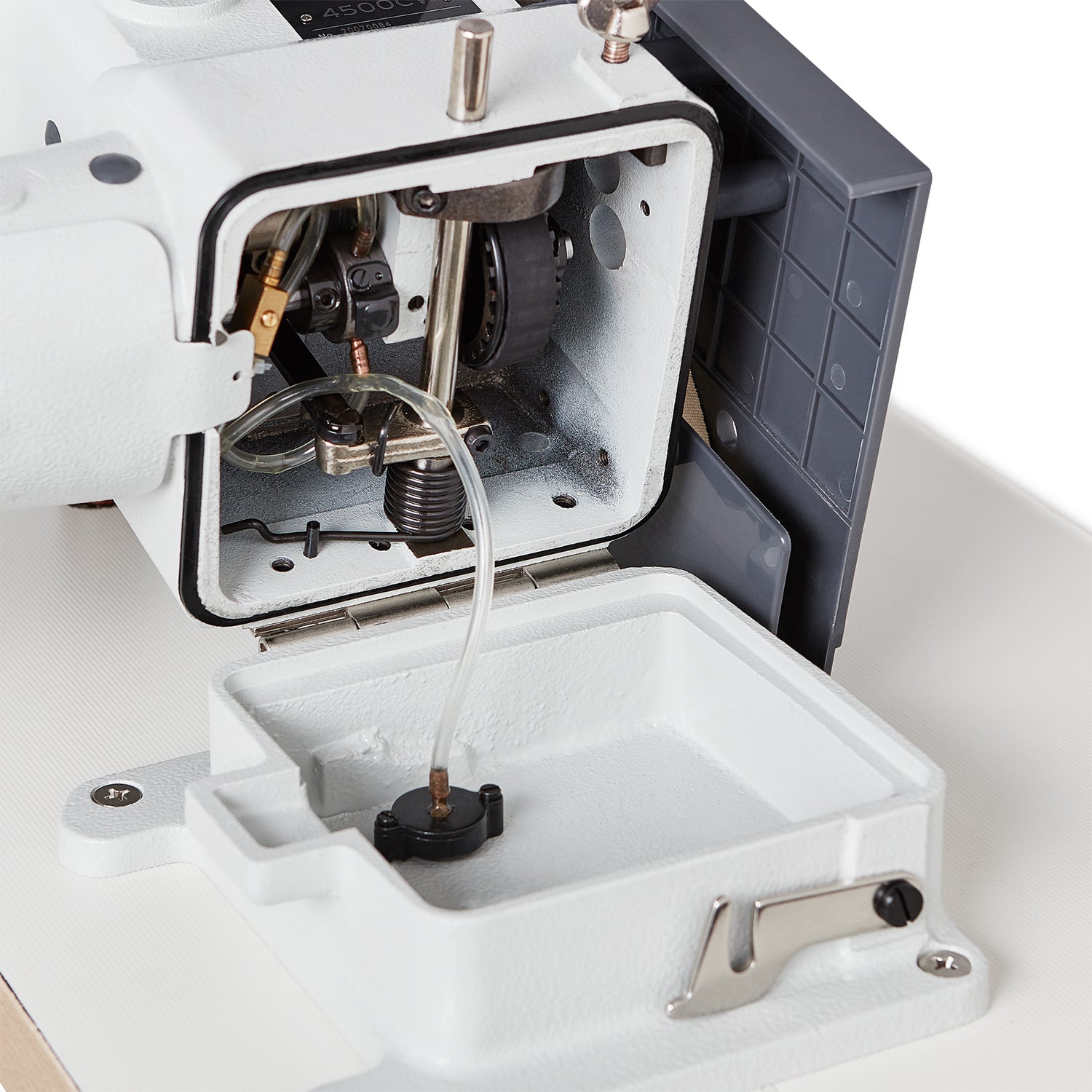

AUTOMATIC LUBRICATION

When running, the oil-window on the top of the head indicates that the machines internal pump system is working.

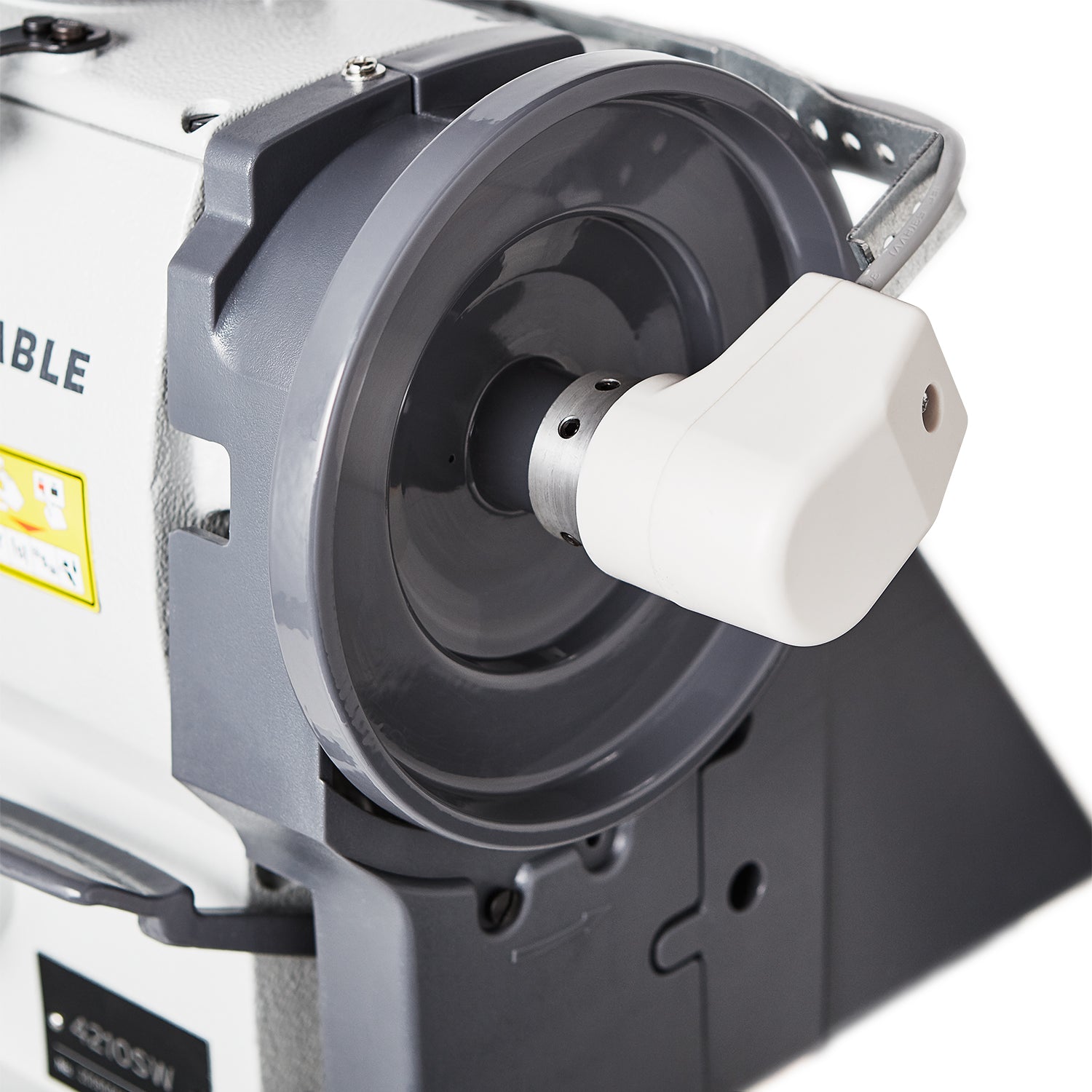

SYNCHRONIZER

The 4500CW includes a synchronizer for ease and functionality. Time saving, the synchronizer can position up or down, and is great for corner stitching.

SEWQUIET SERVOMOTOR

Our SewQuiet 12 coil DC servomotor is the powerhouse behind every 6000SM, providing revolutions up to 6000RPM.

4210SW SINGLE NEEDLE LOCKSTITCH WALKING FOOT SEWING MACHINE - SEWQUIET SERVOMOTOR
AUTOMATIC BOBBIN WINDER

For added convenience, the bobbin winder on the 4500CW is built-in to the front of the machine head.

STITCH DIAL & REVERSE LEVER

The 4500CW has a stitch dial, providing adjustments (0-10 mm) for the length of the stitch as well as a convenient reverse lever for making the perfect back tack.

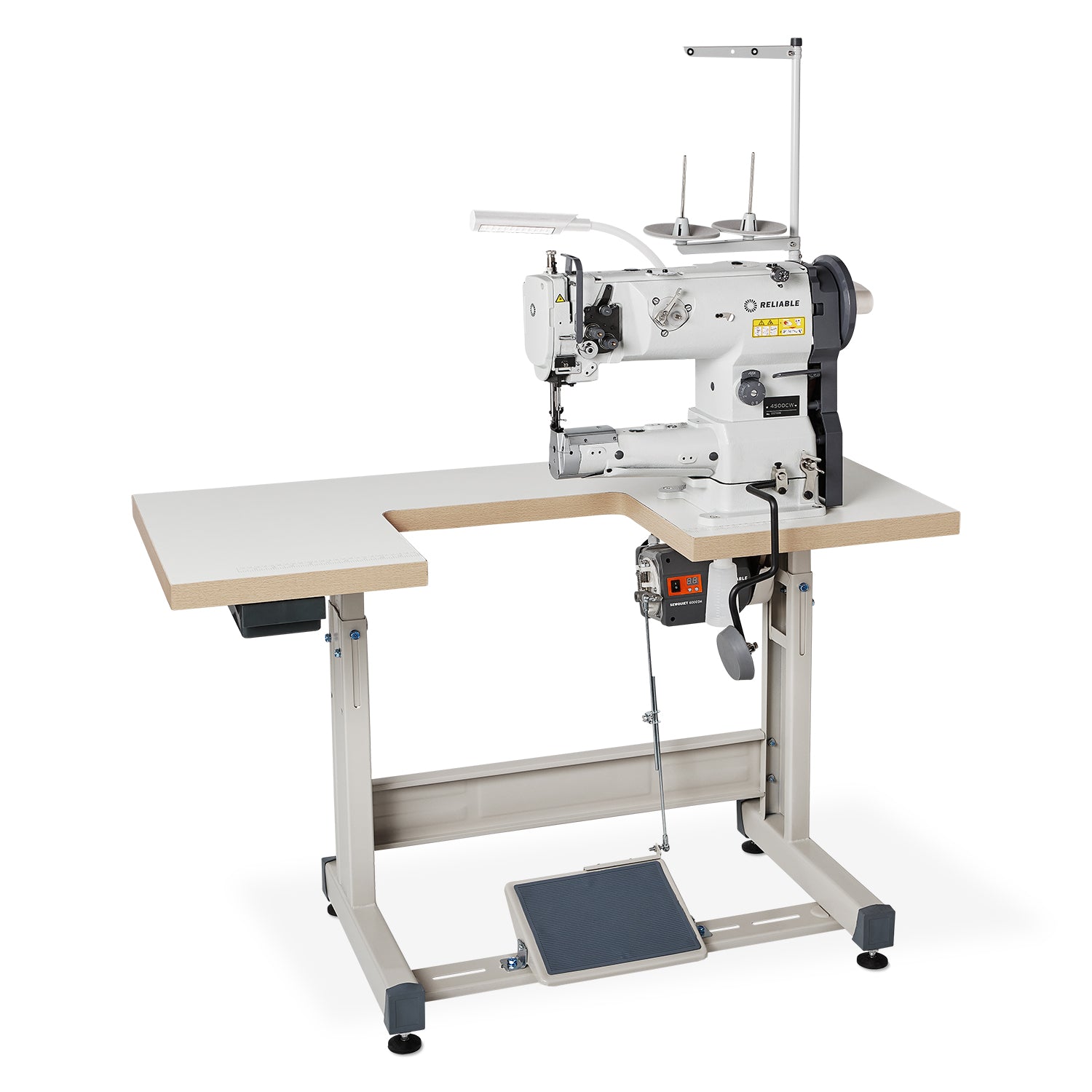

SUPERIOR STAND

Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32" steel.

Boiler
  • Maximum Sewing Speed 2,500 RPM
  • Needle Bar Stroke 1.31” / 33.4 mm
  • Diameter of Bed Size 1.85” / 47 mm
  • Stitch Length 0 - 0.35” / 0 – 10 mm
  • Pressure Foot Lift by Hand 0.33” / 8.5mm by Pedal 0.63” / 16mm
  • Thread Take Up Stroke 2.42” / 61.4mm
4500CW CYLINDER BED LOCKSTITCH WALKING FOOT SEWING MACHINE DIMENSIONS
