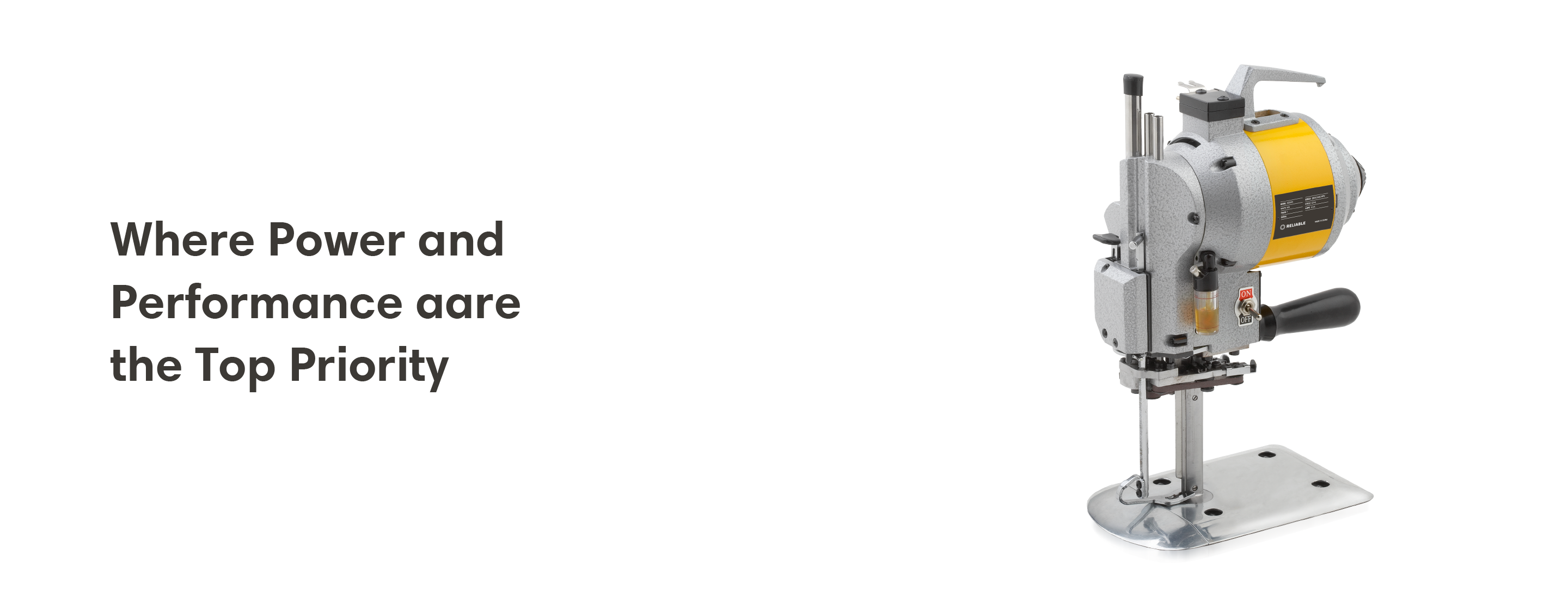

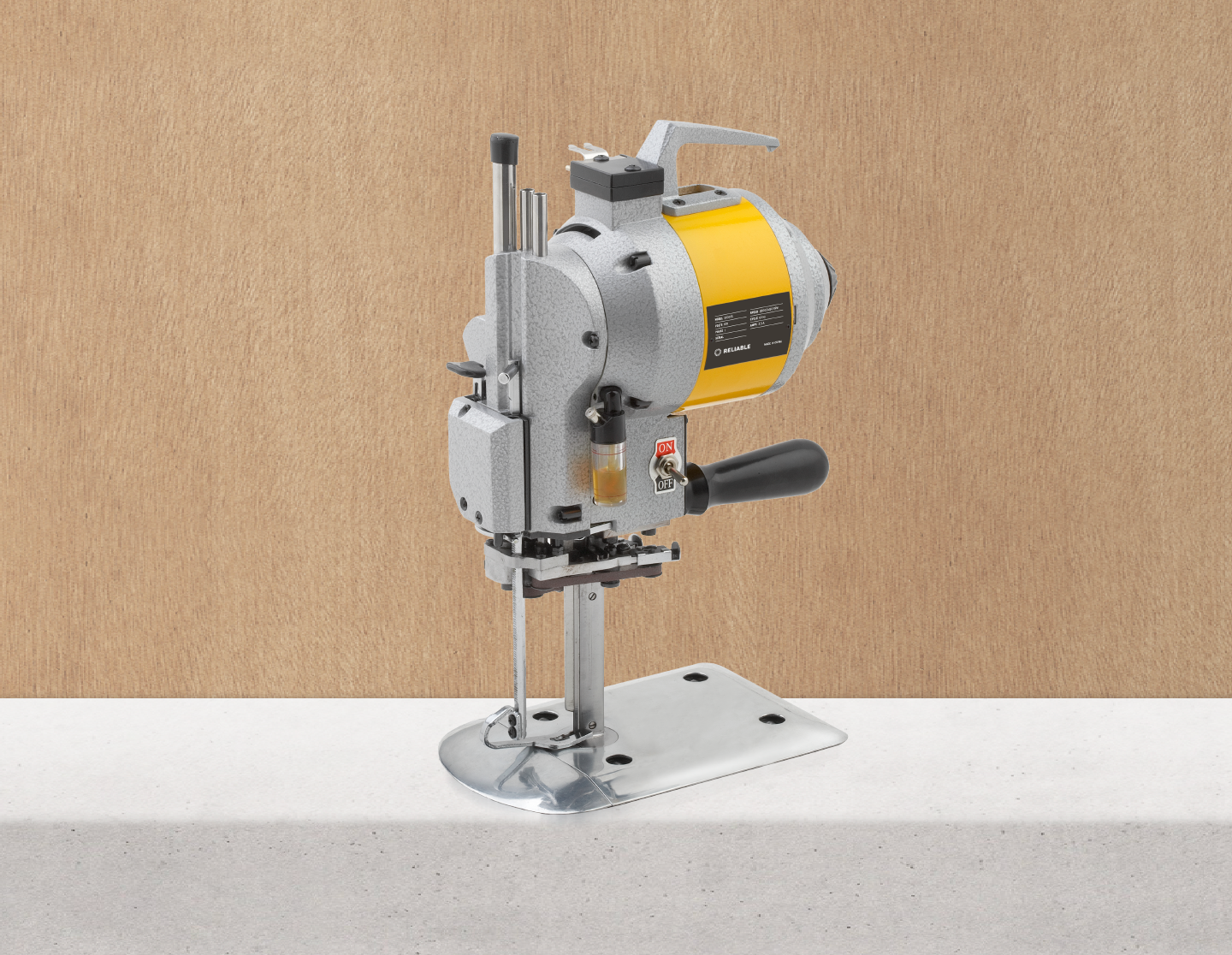

Cloth Cutting 5000FS

Cloth Cutting 5000FS



Equipped with an automatic sharpener.

Sturdy carrying handle.

Convenient oil level indicator for monitoring oil levels.

Large and stable base plate for enhanced stability.

Safety guard for added protection during use.

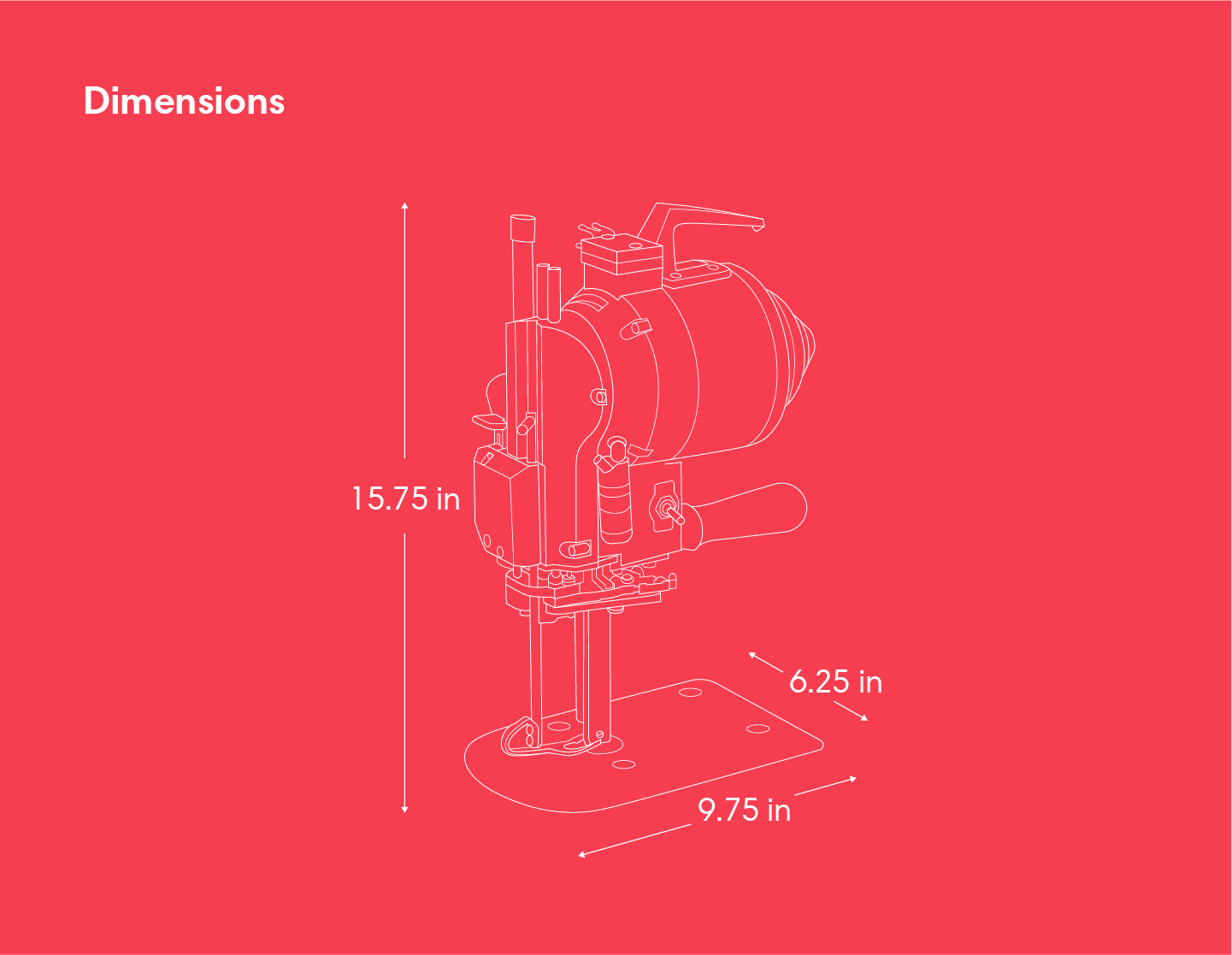

Product Dimensions 6.25" x 15.75" x 9.75"
15.87 x 40 x 24.76 cm

Box Dimensions 9.25" x 20.75" x 11.75"
23.5 x 53 x 30 cm


Electrical 110V

Horsepower 1/3 h.p.

Speed 2,800/3,450 RPM

Stroke 1" / 2.5 cm

Cutting Capacity 1" (2.54 cm) minimum / 4" (10.16 cm)

Warranty Limited 1 Year

Net Weight 20.5 lb / 9.5 kg

Shipping Weight 25 lb / 11.3 kg

Lubrication Manual

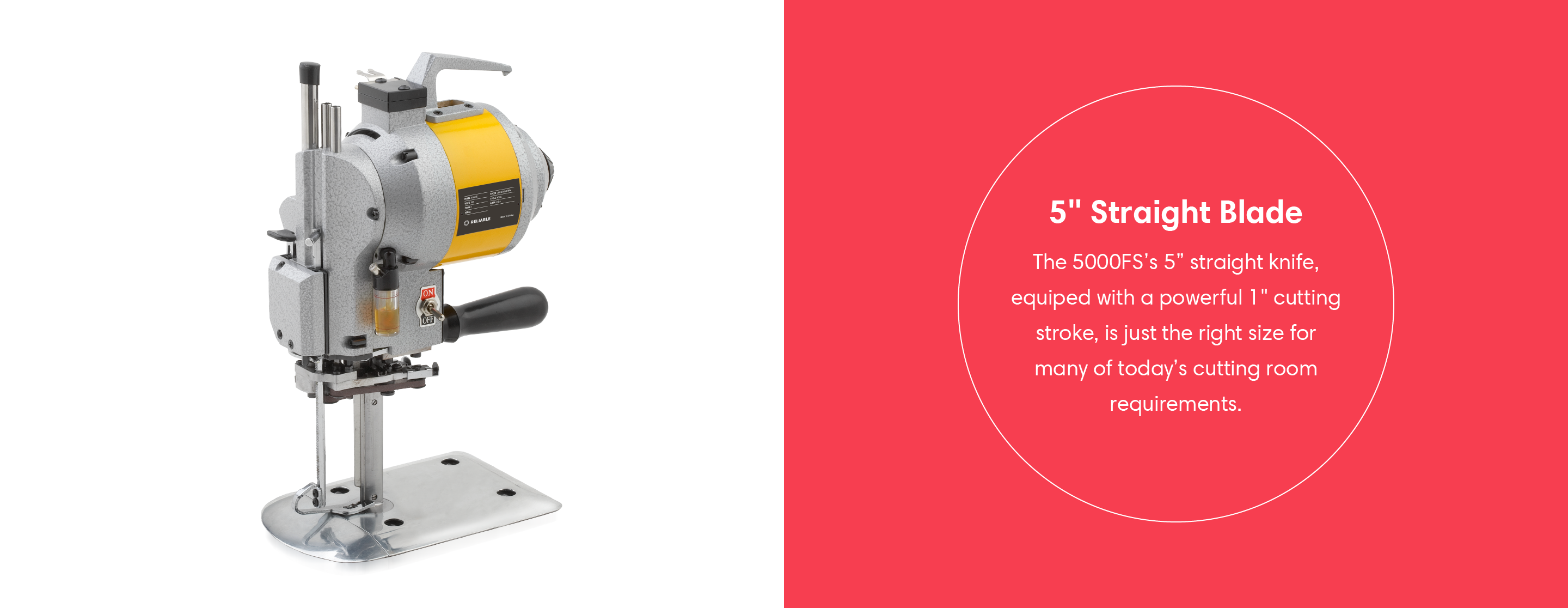

5" Straight Knife Cloth Cutting Machine

The perfect choice for cutting jobs that require a straight knife, but where the height of the lay is less than 4”. The 5000FS has a lower overall profile, and a lower center of gravity than larger machines, making it easier and safer to use. For small to medium size lays, where both straight and curved patterns are needed to be cut the 5000FS offers an easy to use machine that is perfect for every level of cutter.
