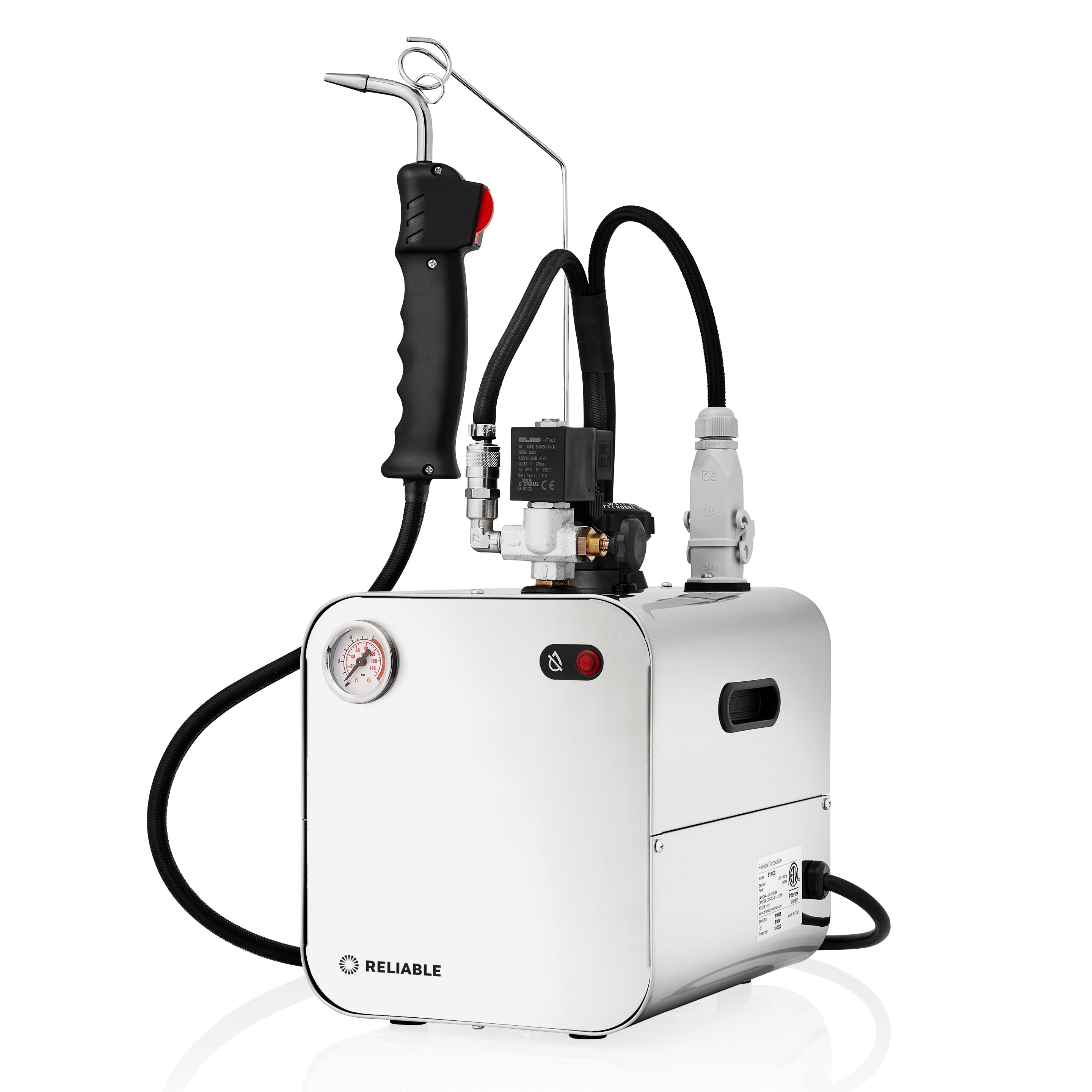

Dental Lab 5100CD

Dental Lab 5100CD



Up to 50 PSI / 3.5 BAR Steam Pressure

Energy-Efficient Design: Eco Mode for up to 33% Energy Savings

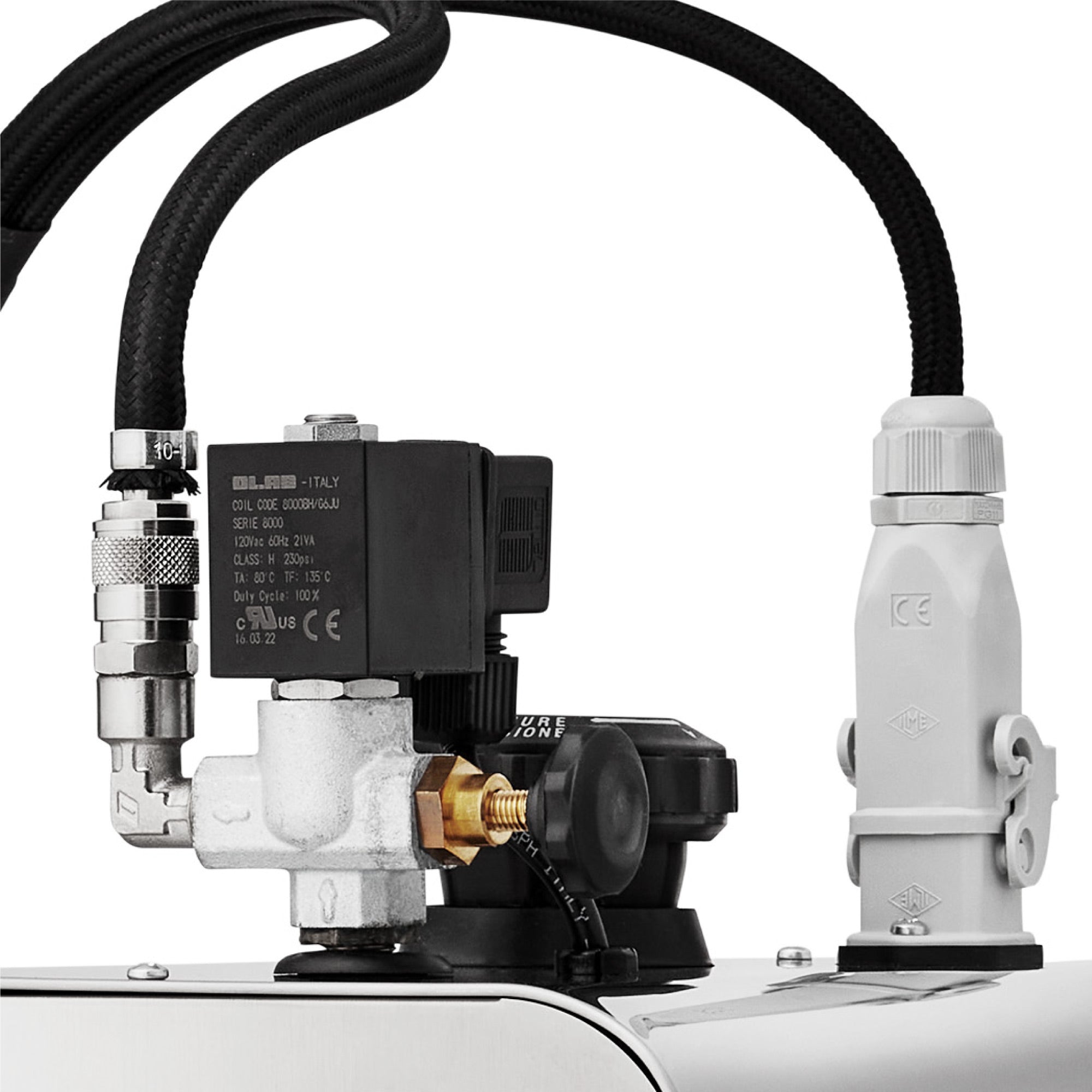

Utilizes External Solenoid with Variable Steam Dial

Equipped with External Long Life Element

Enhanced Safety with 4 Safety Systems

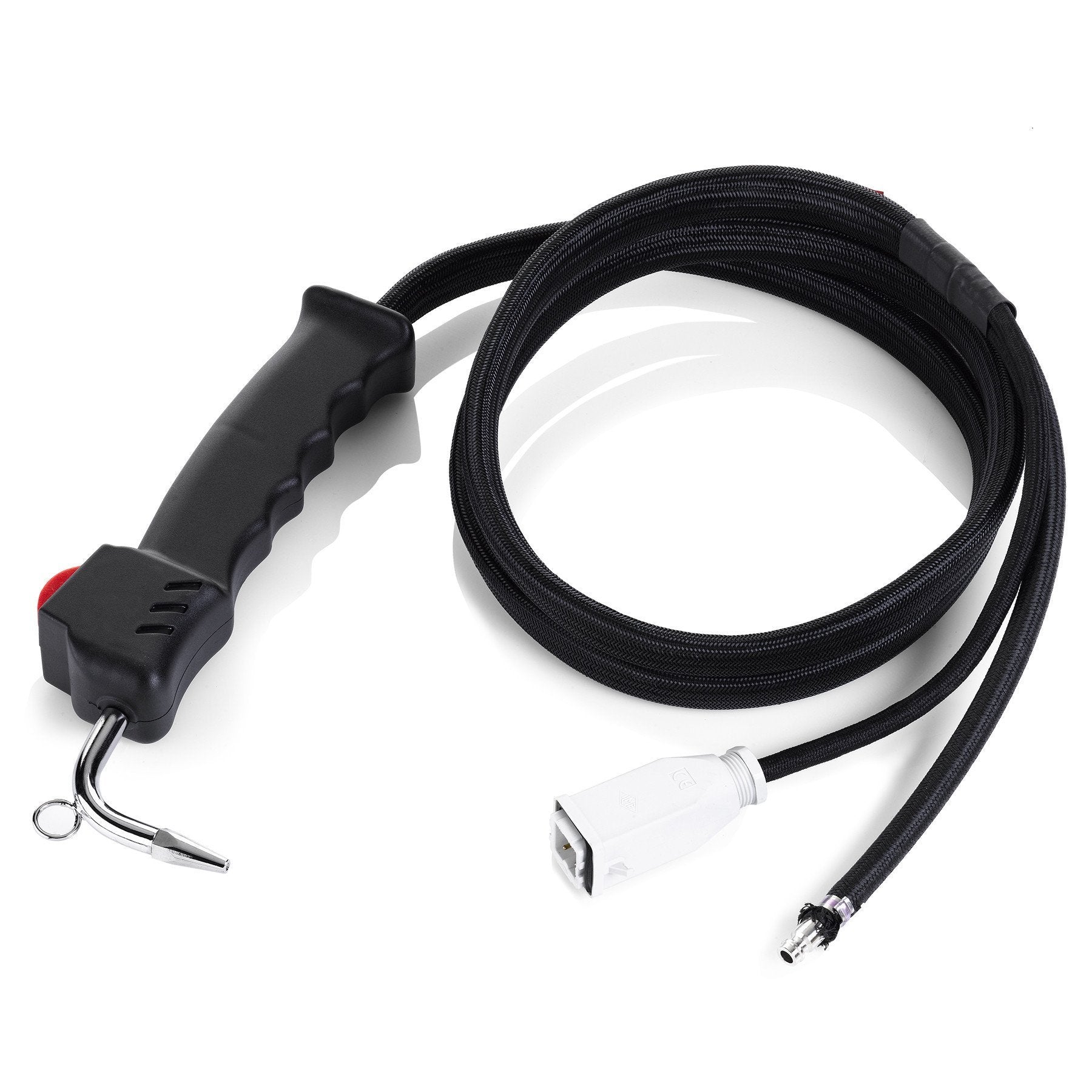

3000DA Steam Gun Complete with a 6’ Steam Hose and Quick Connect Fittings

Features Low Water Indicator Light and Pressure Gauge

Extended Steam Operation: Up to 4 Hours Continuously

Convenient Carrying Handles for Portability

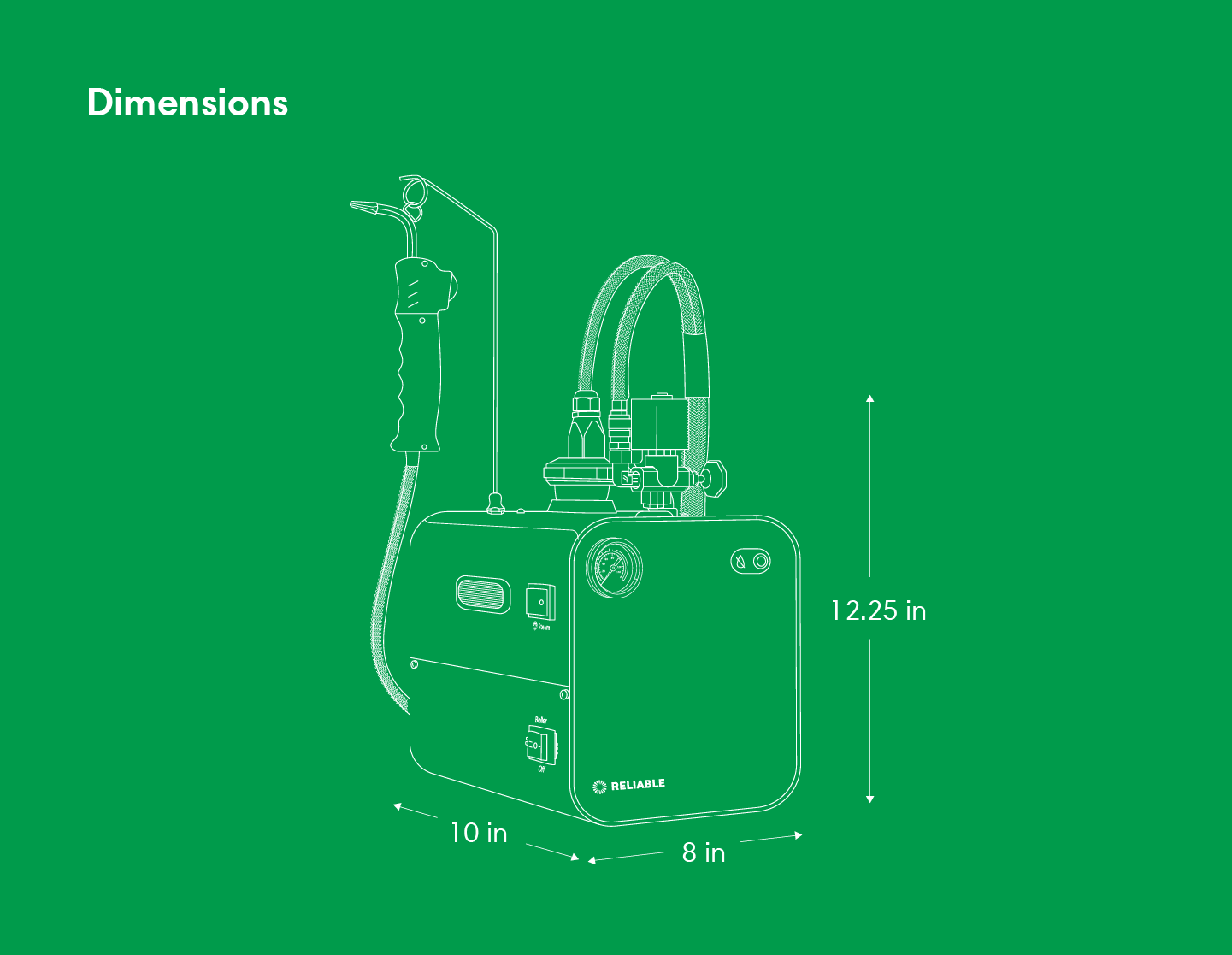

Product Dimensions 8" x 12.25" x 10"
20.3 x 31.1 x 25.4 cm

Box Dimensions 16" x 17" x 12"
40.64 x 43.18 x 30.5 cm


Electrical 120 V / 10 amps / 60mhz

Boiler Capacity 0.58 GAL / 2.2 L

Water Capacity 0.5 GAL / 1.9 L

Operating Pressure Up to 50 PSI / 3.5 BAR

Steam Temperature 200°F / 93°C

Wattage 1000W

Tank Construction Stainless Steel

Net Weight 12.85 lb / 5.8 kg

Shipping Weight 17.2 lb / 7.8 kg

Electrical Approval cETLus

Warranty Limited 1 year, 2 year boiler tank

Country of Origin Italy


2.2L Dental Lab Steam Cleaner

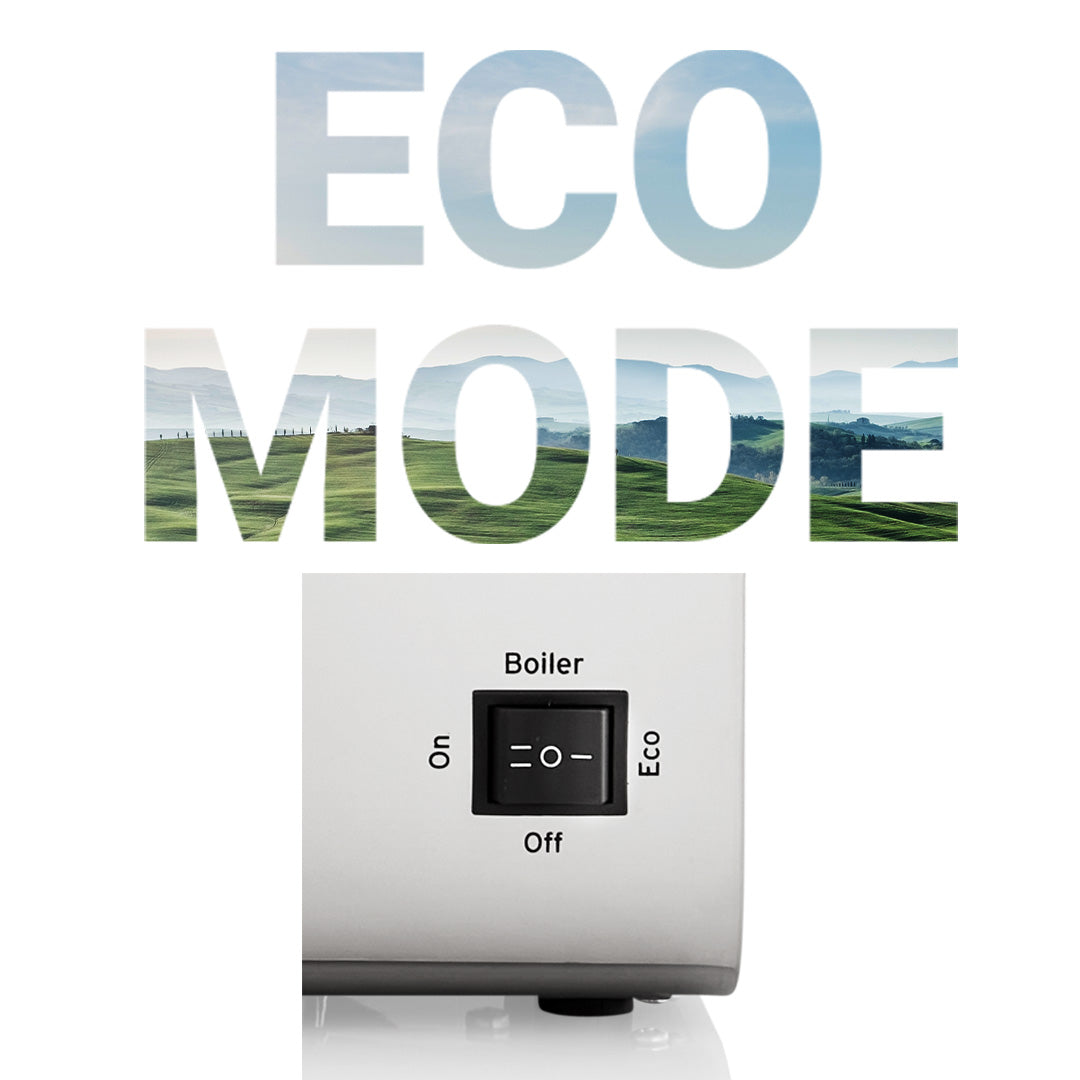

Introducing Eco-Mode in the all new 5100CD dental lab steam cleaner. Eco-Mode will save you up to 33% in energy costs by reducing the energy consumption when the boiler is not being used. Smart for your wallet and smart for the planet.

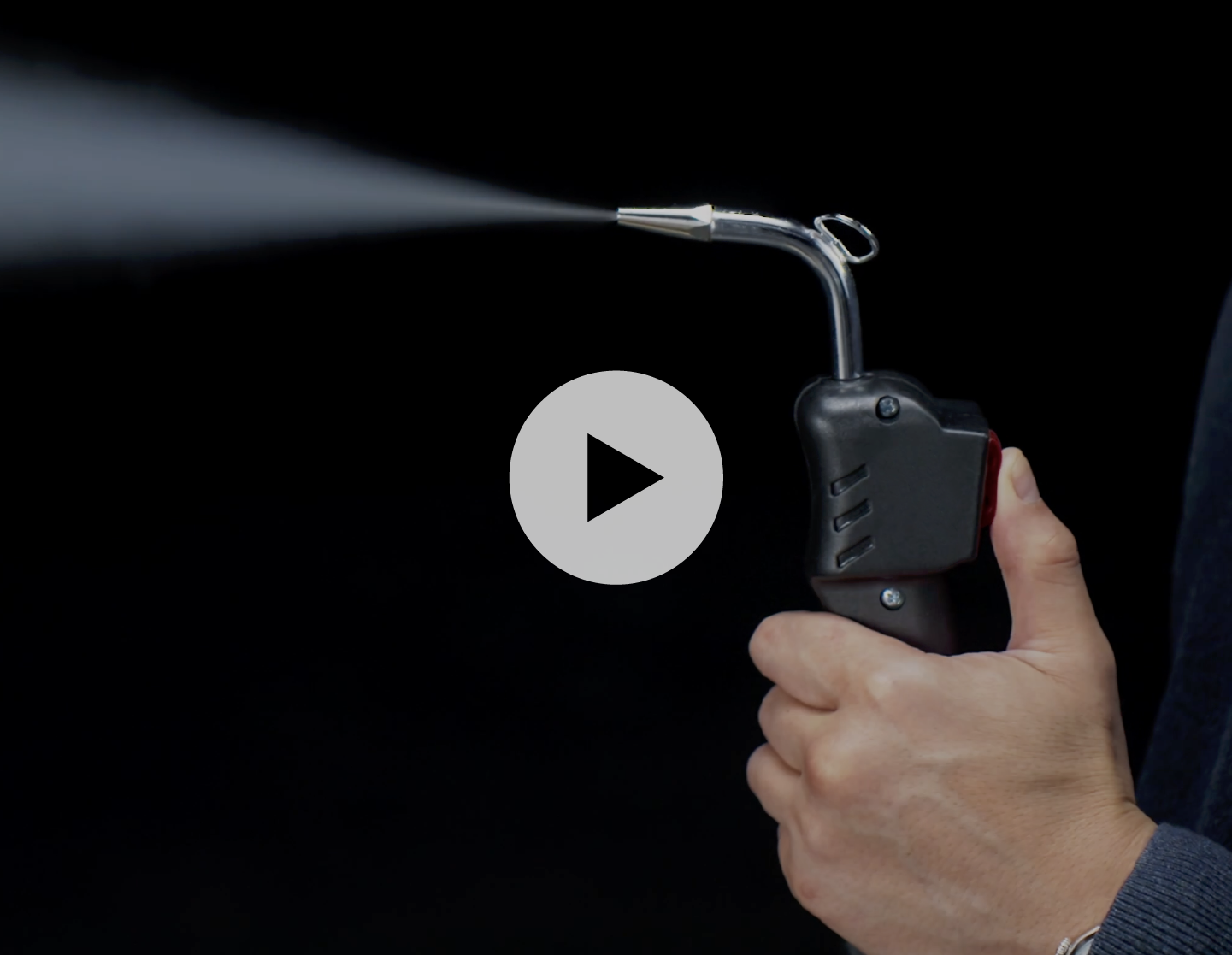

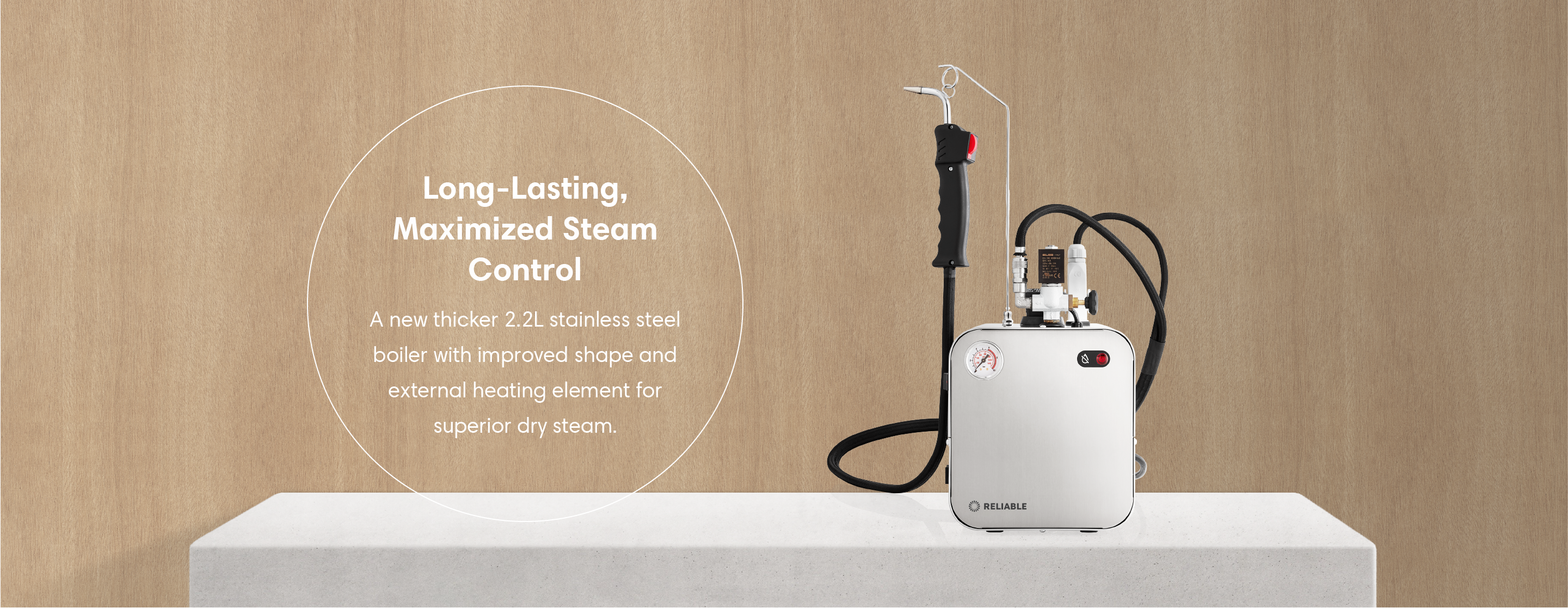

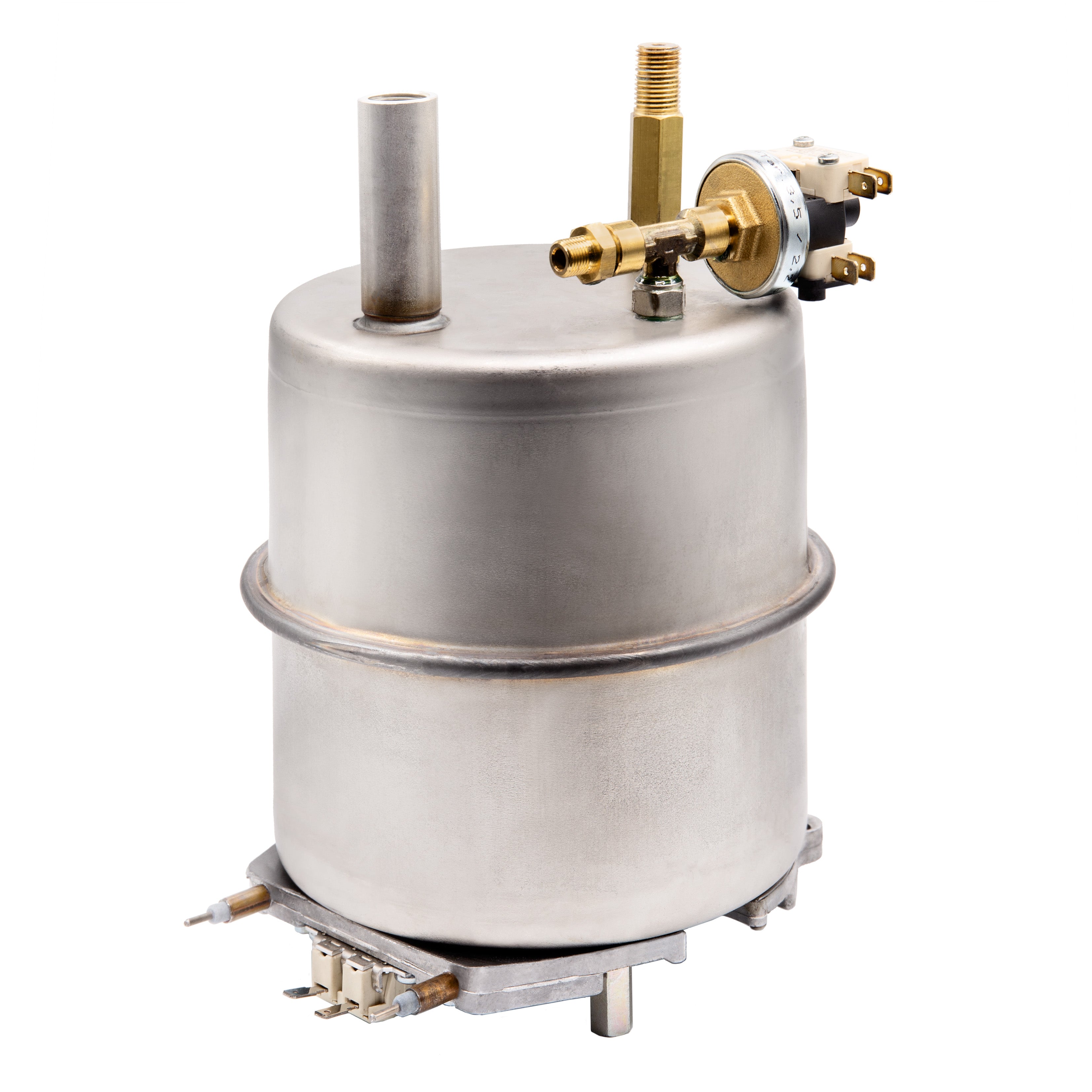

The 5100CD has an absolute capacity of 2.2L, uses our new external heating element system to maximize the amount of steam available to use and has an operating pressure of 3.5 bar / 50 P.S.I. for maximum cleaning efficiency. The supplied #3000DA steam gun with quick connect functionality and variable steam control provides optimum, focused cleaning power for the toughest jobs.
