Specifications
Foot height adjuster permits you to raise and lower the walking foot.
Features a drop-in bobbin for heavier materials.
SewQuiet Servomotor with Synchonizer
Optional 1/4" Roll Edge Guide
Includes UberLight Flex Sewing Light
Ships fully assembled, tested, and sewn-off
Includes a high-quality stand and table top.

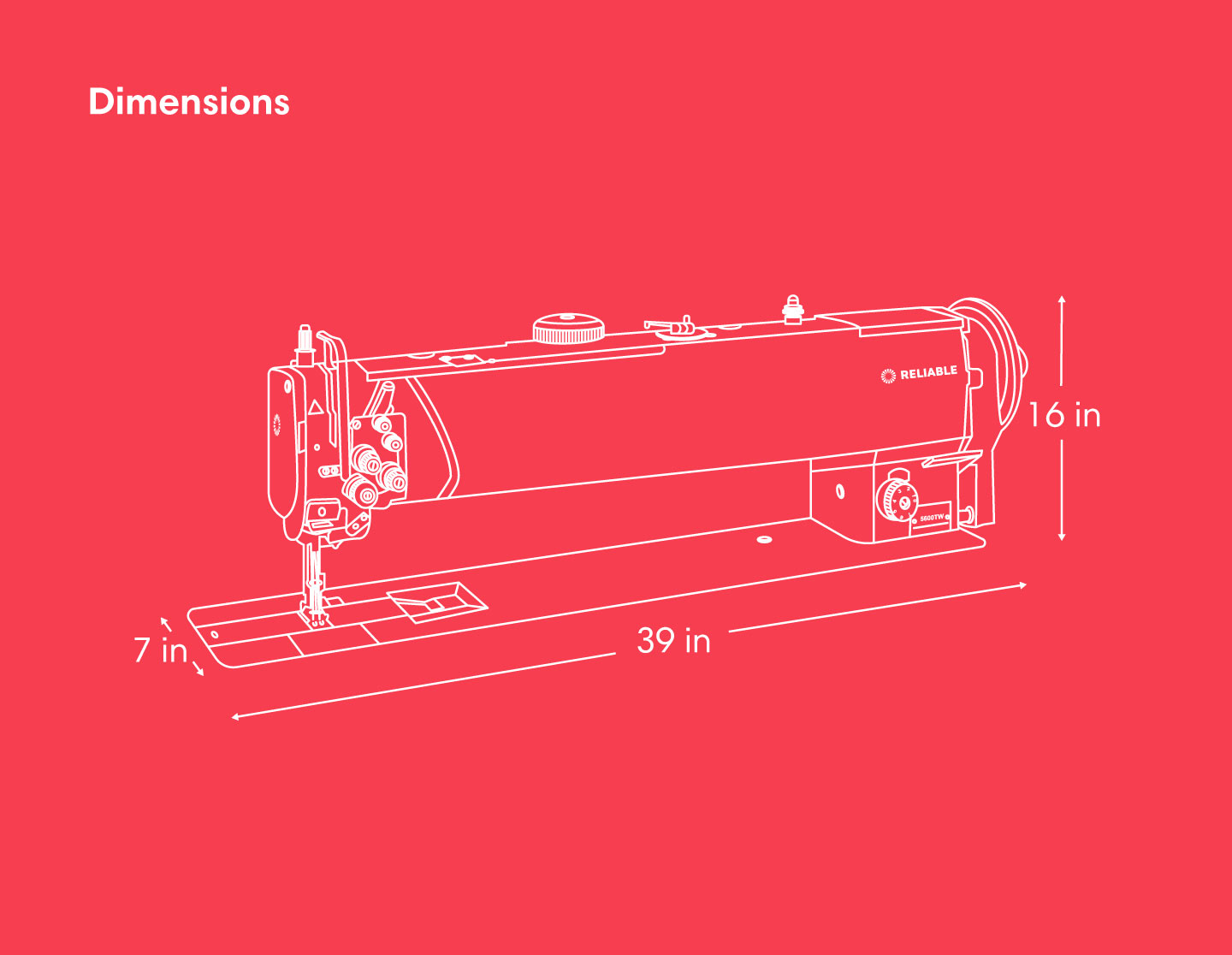

Dimensions

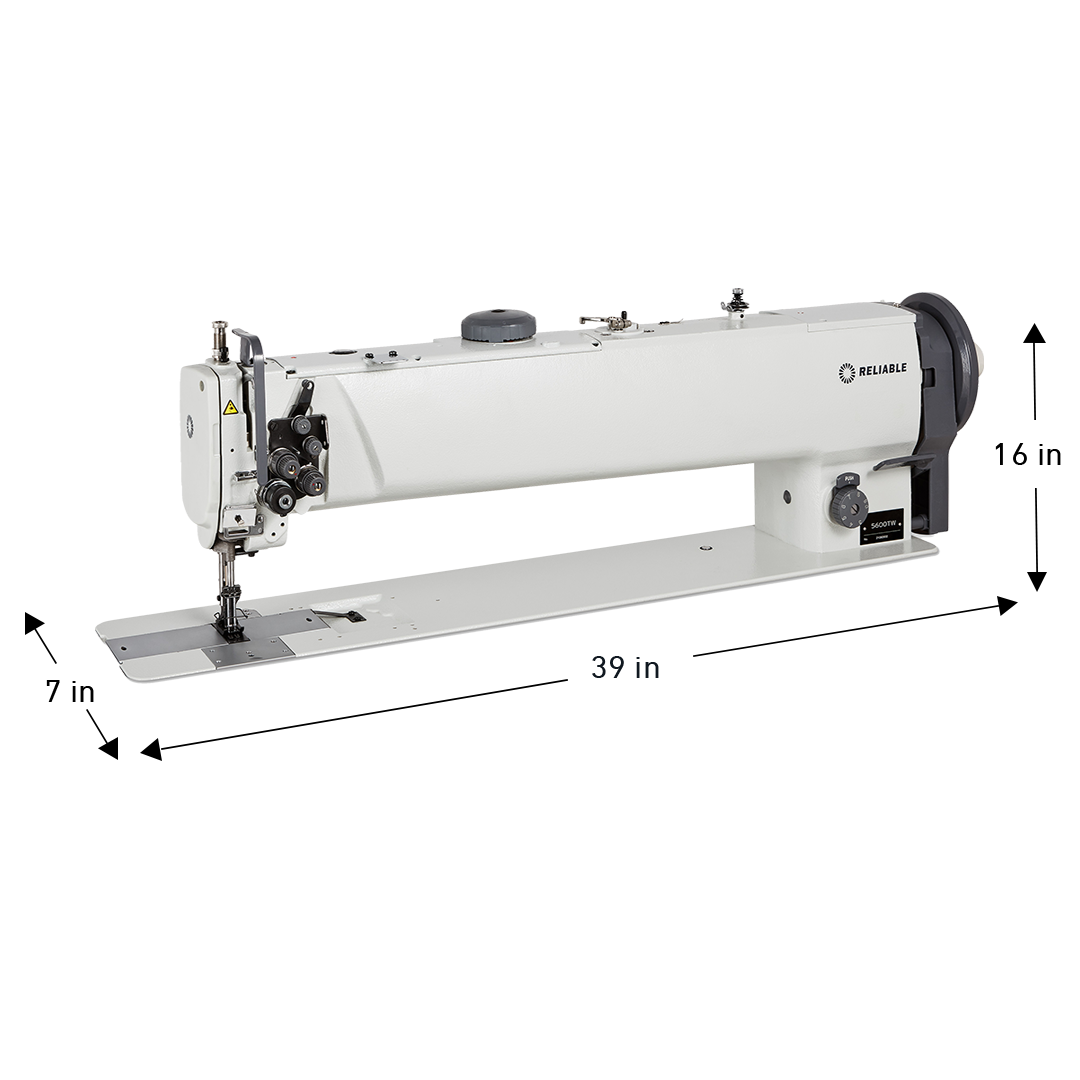

Head Dimensions 39" x 7" x 16"
99.1 x 17.8 x 40.6cm
Pallet Dimensions 48" x 40" x 46"
121.9 x 101.6 x 116.8cm
Operation
Stitch Length 0 - 9mm
Needle Bar Stroke 36mm
Needle System # 135 x 17

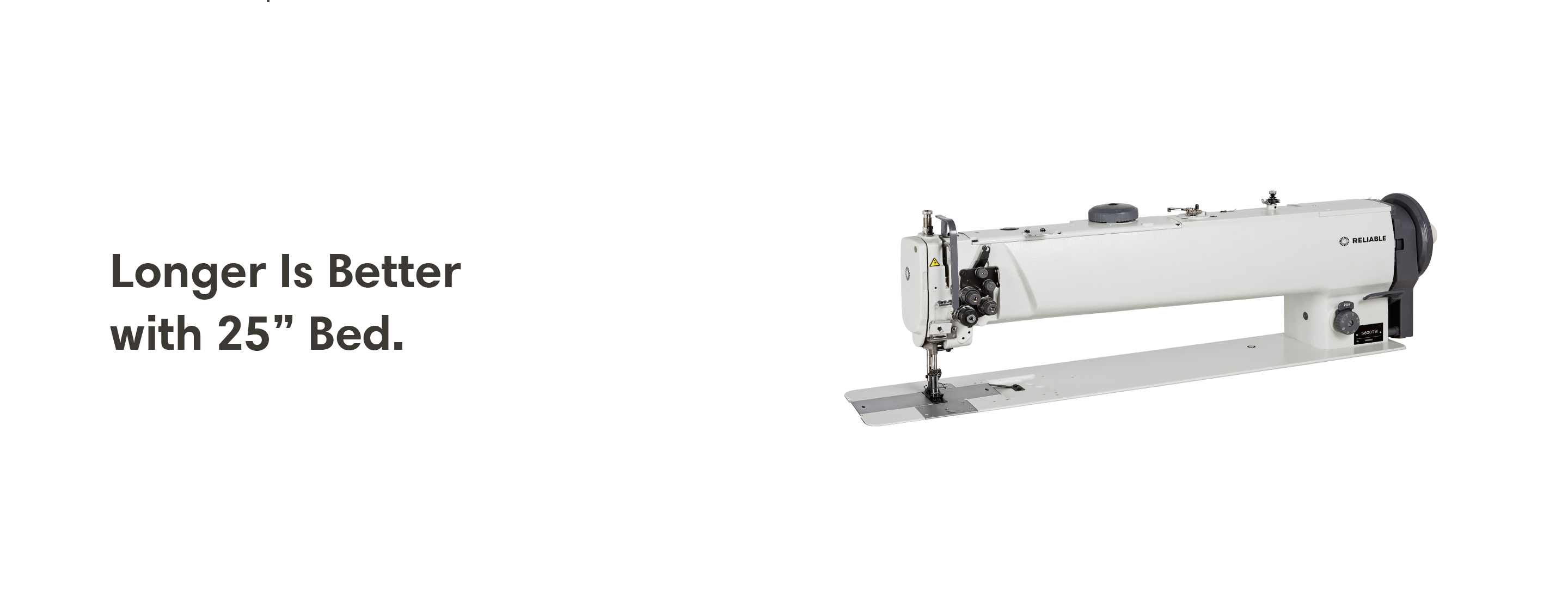

Work Space 25" / 63.5cm
Foot Lift 9mm
RPM 1800
Needle Gauge 1/4" Standard, other options available
Electrical 110V / 120V 60 Hz
Specifications
Foot height adjuster permits you to raise and lower the walking foot.
Features a drop-in bobbin for heavier materials.

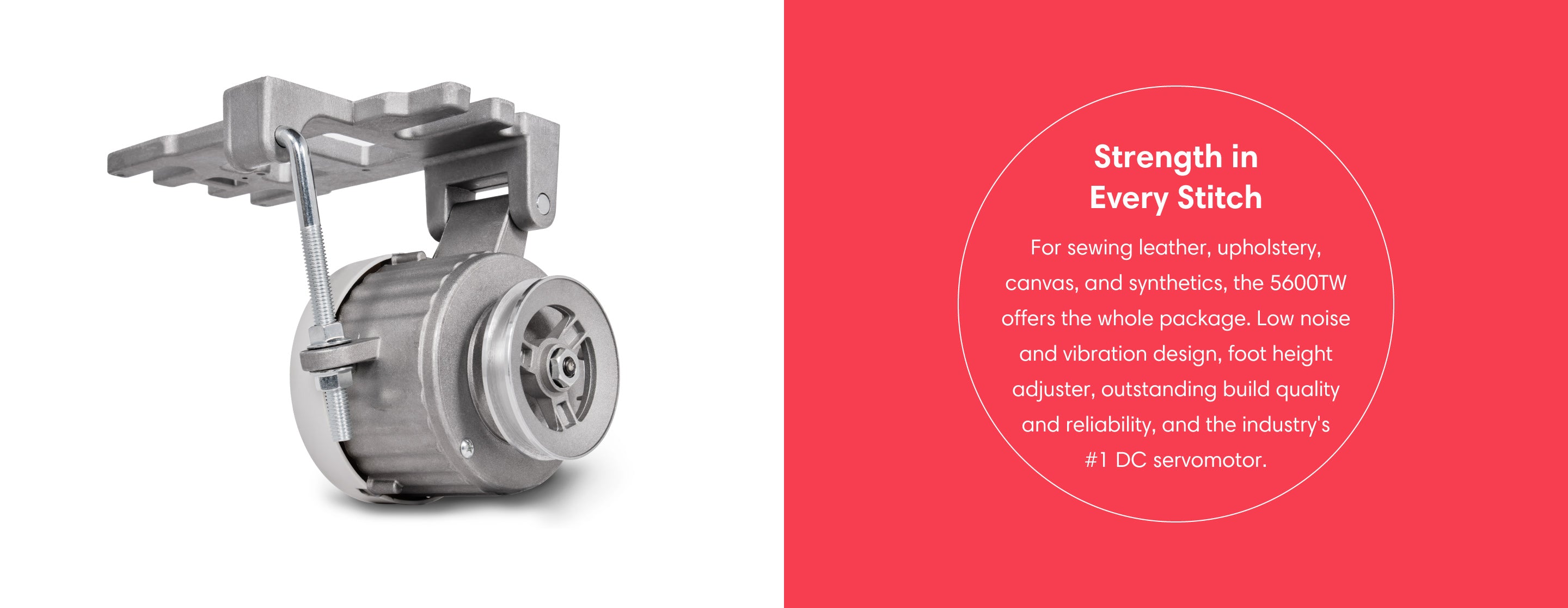

SewQuiet Servomotor with Synchonizer
Optional 1/4" Roll Edge Guide
Includes UberLight Flex Sewing Light
Ships fully assembled, tested, and sewn-off
Includes a high-quality stand and table top.
Dimensions
Head Dimensions 39" x 7" x 16"
99.1 x 17.8 x 40.6cm
Pallet Dimensions 48" x 40" x 46"
121.9 x 101.6 x 116.8cm
Operation
Stitch Length 0 - 9mm
Needle Bar Stroke 36mm
Needle System # 135 x 17
Work Space 25" / 63.5cm
Foot Lift 9mm
RPM 1800
Needle Gauge 1/4" Standard, other options available
Electrical 110V / 120V 60 Hz

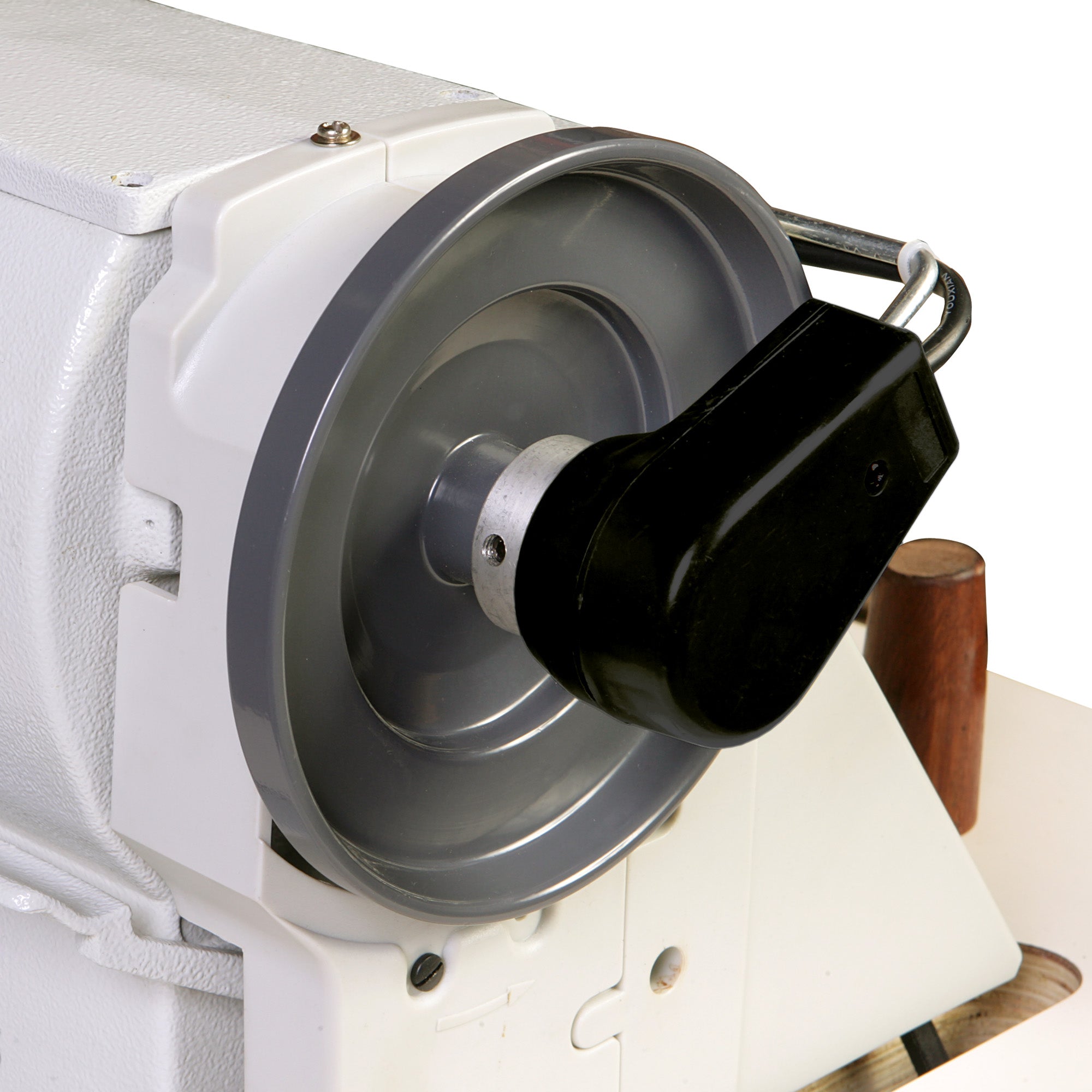

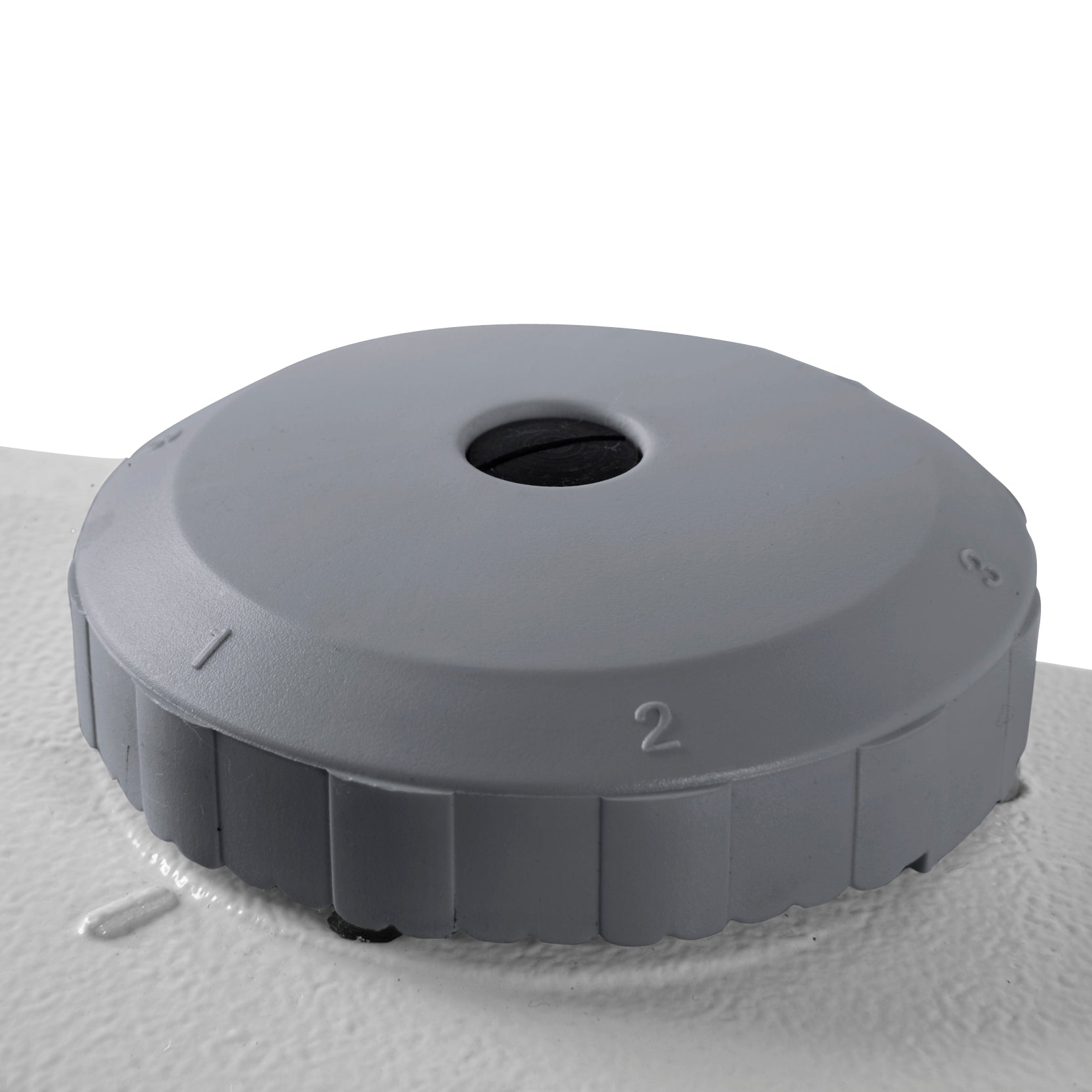

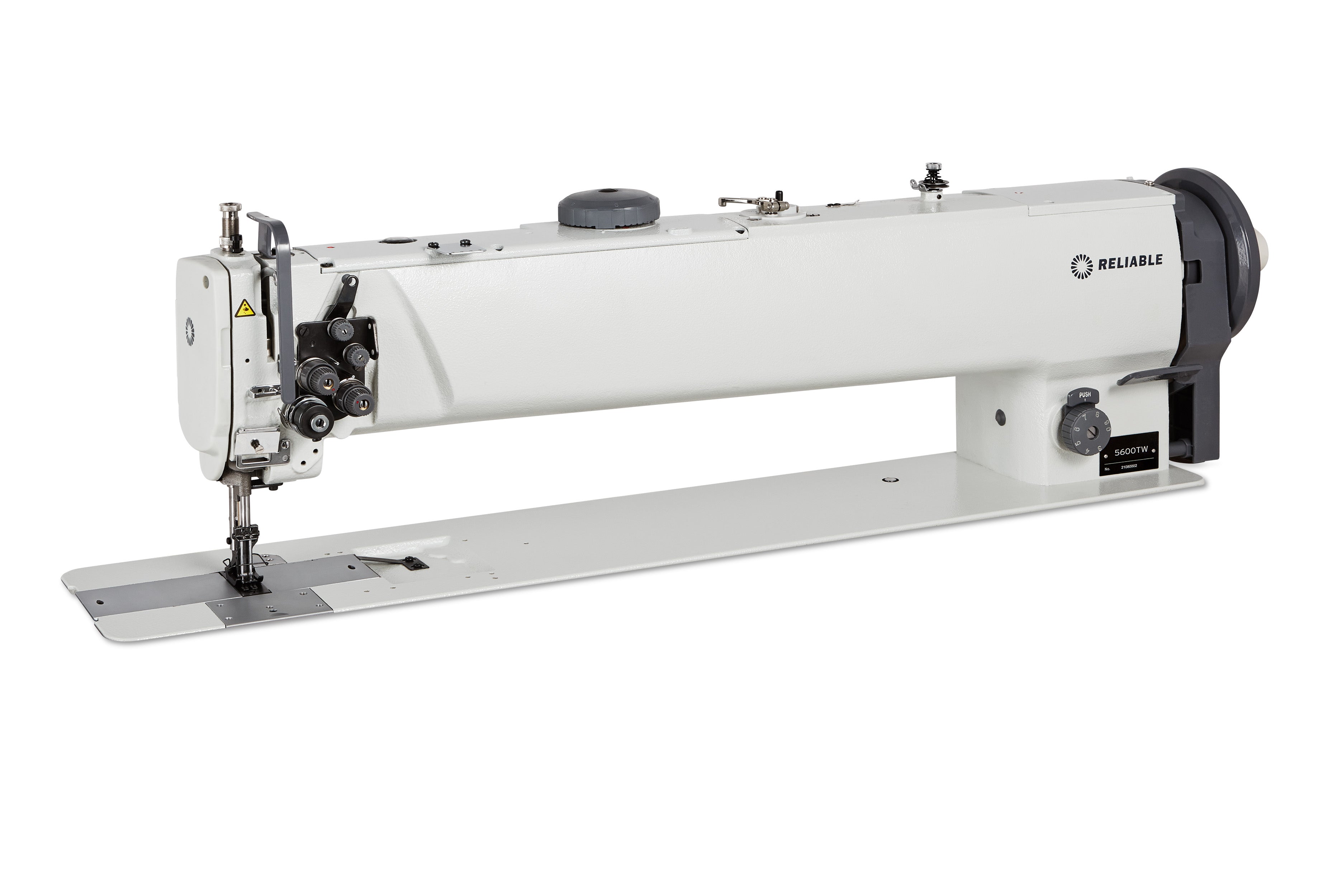

The 5600TW two needles, compound feed machine is a big machine. It’s so large in fact that we’ve added a bit of “Reliable magic” by including our #1 SewQuiet servomotor with synchronizer, so you can have all of the advantages of needle positioning functionality at no extra cost. A safety clutch, upper feed adjustment and a built-in bobbin winder complete this very capable machine for sewing medium to heavy weight leather, upholstery, canvas and synthetics.
The Right Tool for the Right Job
A good quality chair is indispensable for comfortable and supported sewing sessions, particularly during extended periods of sewing. This is why the Reliable SewErgo line of sewing chairs is a perfect choice.
Features
Needle Positioner
The needle positioning feature saves time by automatically stopping the needle in the up or down position, eliminating the need for the operator to manually reach over to turn the handwheel.
Top Load Large-Bobbin
To assist with long seams and frequent bobbin changes, the 5600TW is equipped with a top-loading large-bobbin.

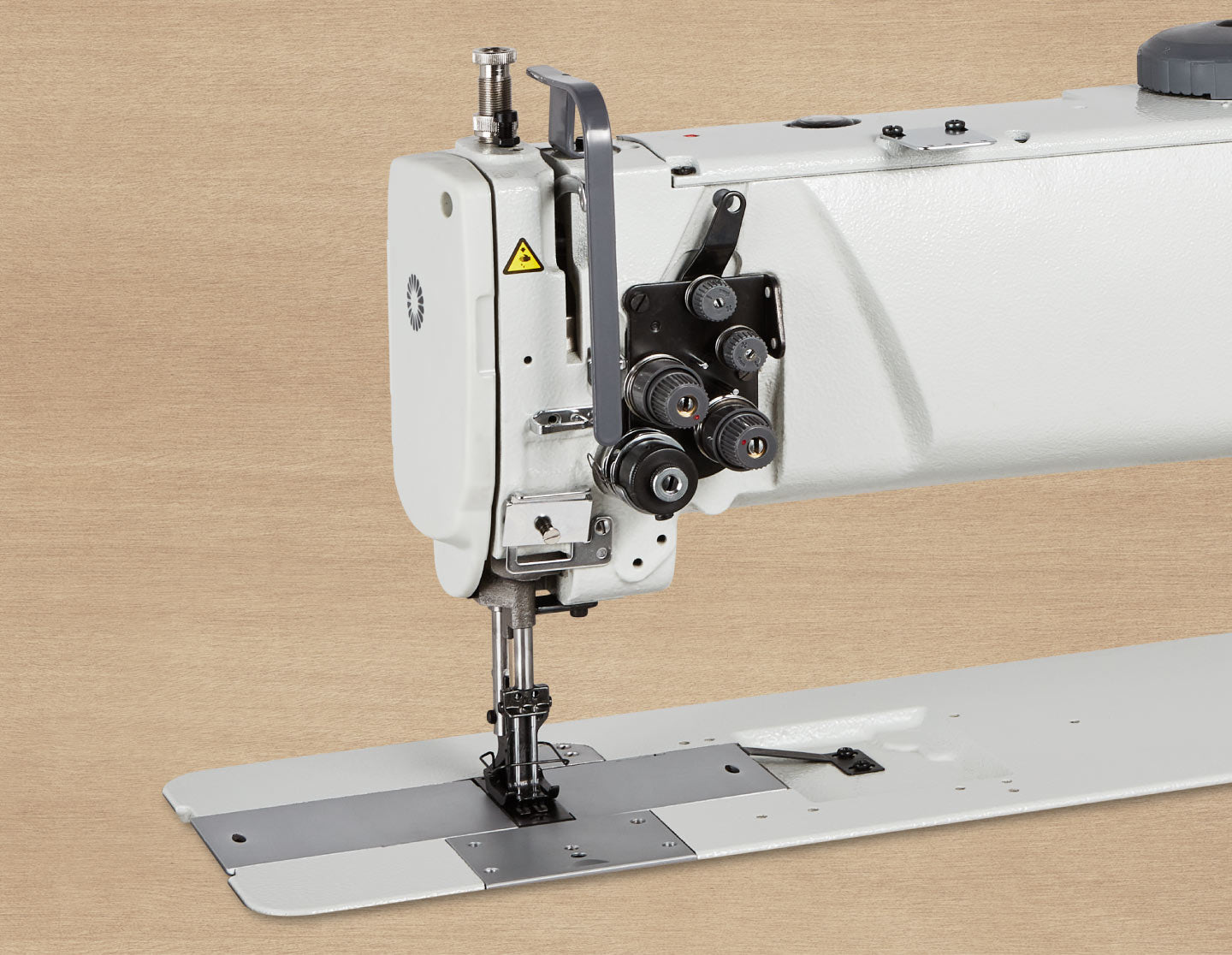

Foot Height Adjuster
The 5600TW’s foot height adjuster allows users to raise and lower the walking foot with ease for an efficient, smoother operation and complete control.

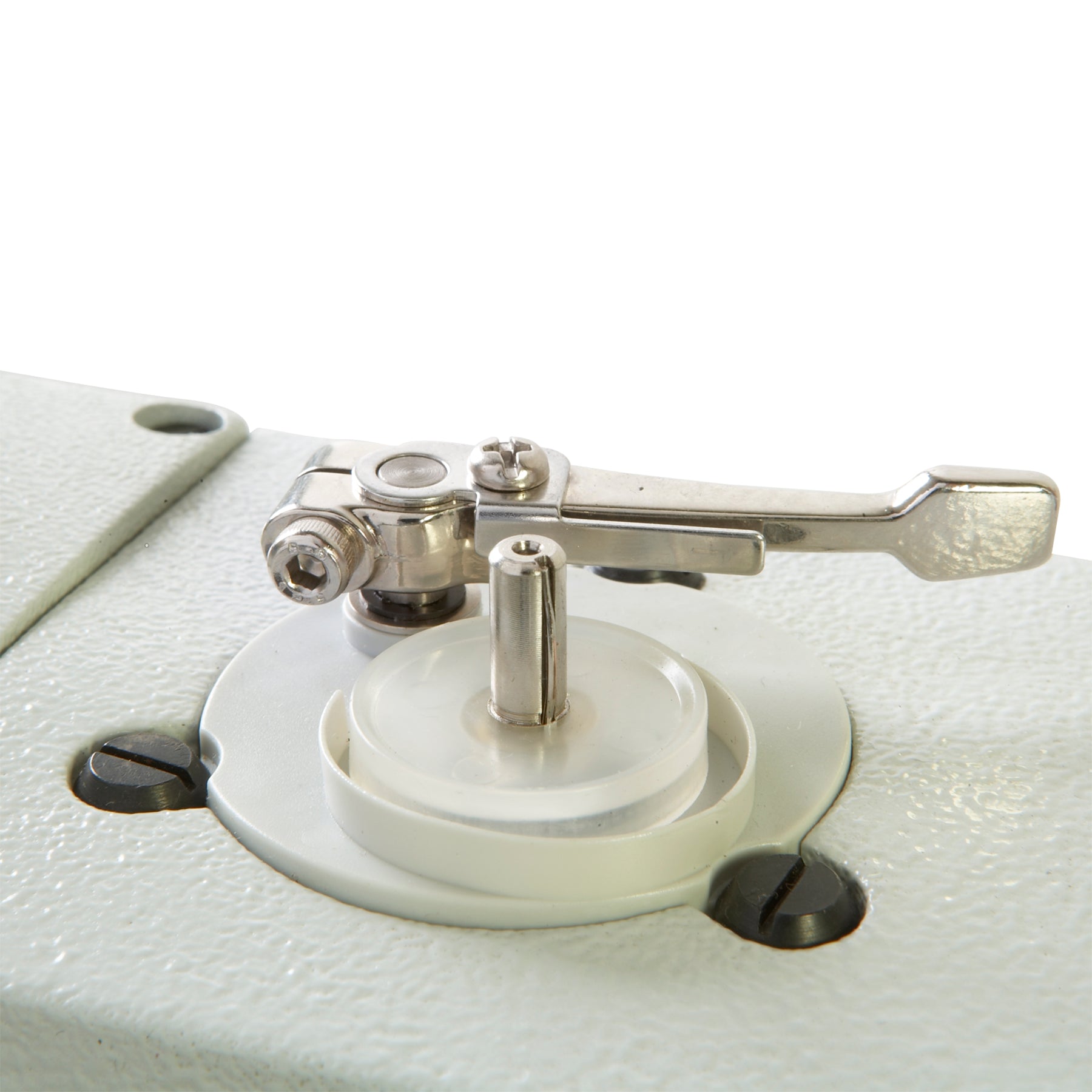

Built-in Bobbin Winder
For added convenience, the bobbin winder on the 5600TW is built-in to the front of the machine head.
UberLight 120TL
UberLight 120TL Light is included at no extra charge.

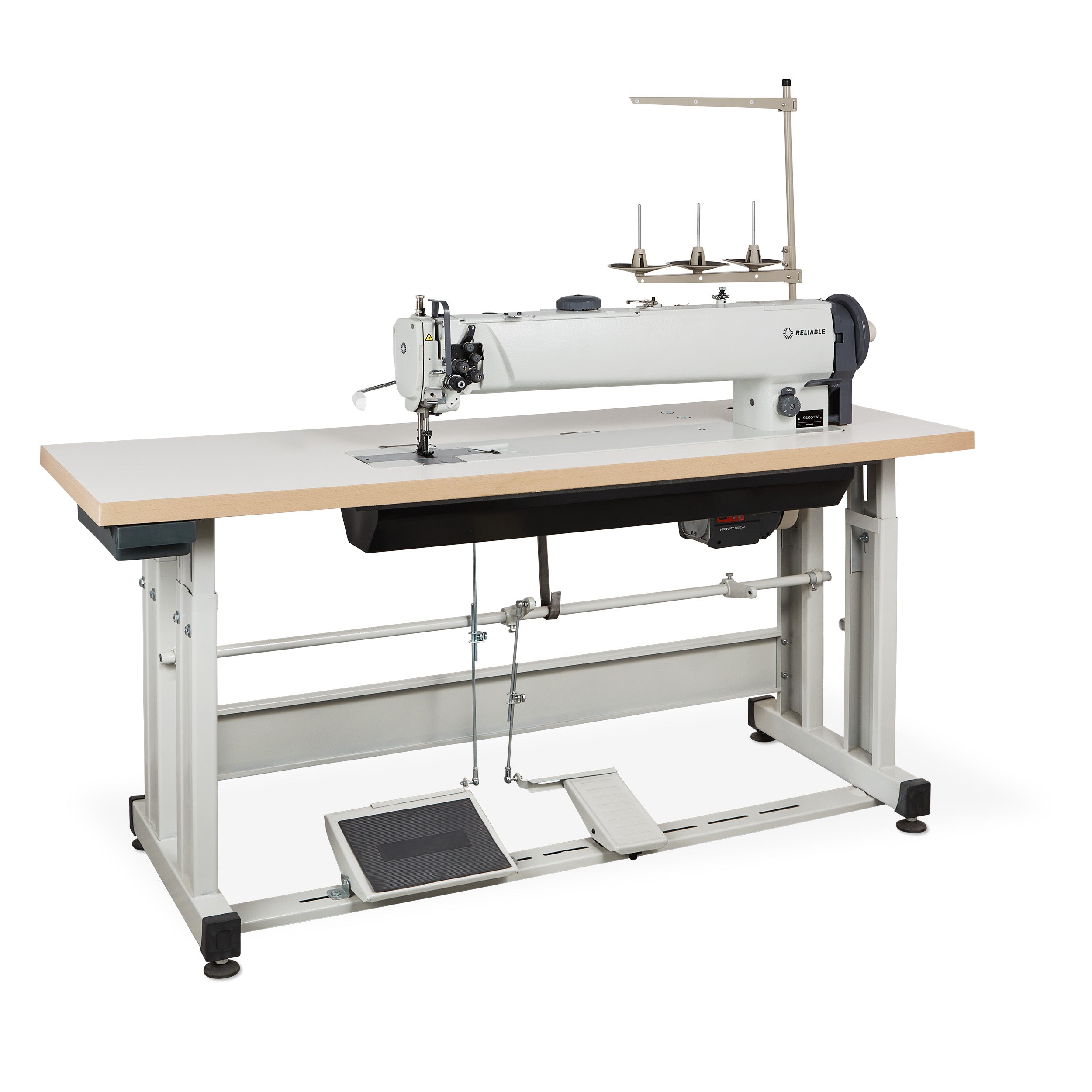

Superior Stand
Others skimp on the stand components, we don’t. We only use 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32” steel.
