Specifications
Equipped with a direct-drive motor.
Features index stitching for precise and controlled sewing.
Automatic Bobbin Winder
Optional 1/4" Roll Edge Guide
Includes UberLight Flex Sewing Light
Ships fully assembled, tested, and sewn-off
Includes a high-quality stand and table top.
Dimensions
Head Dimensions 21" x 7" x 10.5"
53.3 x 17.8 x 26.7cm
Pallet Dimensions 48" x 40" x 40.5"
121.9 x 101.6 x 102.9cm
Operation
Stitch Length 0 - 9mm
Needle Bar Stroke 36mm
Needle System # 135 x 17
Work Space 10" / 25.4cm
Lubrication Semi-automatic
Foot Lift 9mm
RPM 2000
Electrical 110V / 120V 60 Hz
Specifications
Equipped with a direct-drive motor.
Features index stitching for precise and controlled sewing.
Automatic Bobbin Winder
Optional 1/4" Roll Edge Guide
Includes UberLight Flex Sewing Light
Ships fully assembled, tested, and sewn-off
Includes a high-quality stand and table top.
Dimensions
Head Dimensions 21" x 7" x 10.5"
53.3 x 17.8 x 26.7cm
Pallet Dimensions 48" x 40" x 40.5"
121.9 x 101.6 x 102.9cm
Operation
Stitch Length 0 - 9mm
Needle Bar Stroke 36mm
Needle System # 135 x 17
Work Space 10" / 25.4cm
Lubrication Semi-automatic
Foot Lift 9mm
RPM 2000
Electrical 110V / 120V 60 Hz

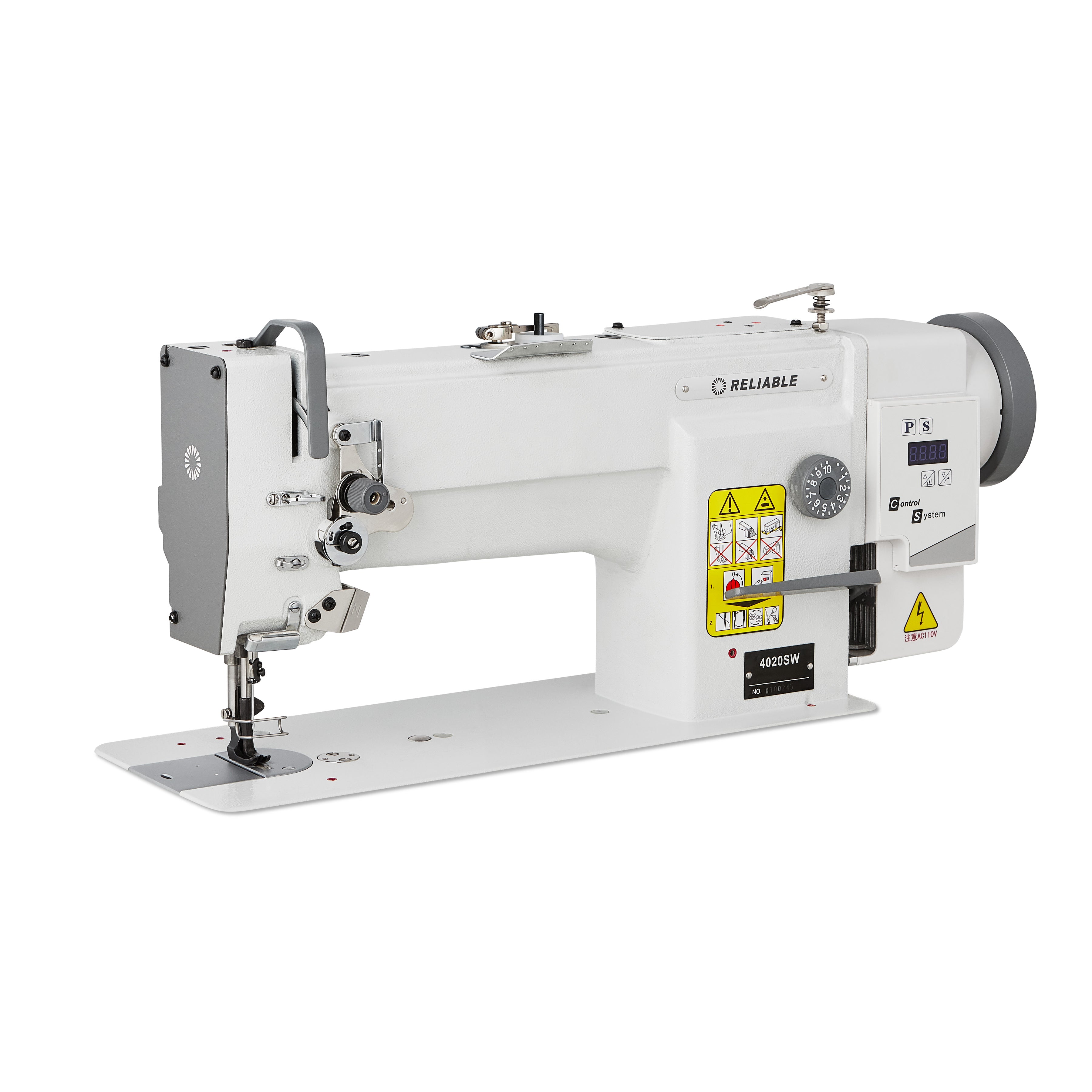

If you are looking for a tough, well-engineered, and well-made compound feed walking foot machine that won’t break the bank, we present the 4020SW. All the good things you need to get the job done including a large capacity hook, upgraded thread tension assembly, 12mm foot lift, and a Direct Drive servomotor.
Direct Drive offers the best user experience. From index stitching to programmable needle positioner to digital speed control, the 4020SW is the Walking Foot Sewing machine you have been waiting for. Ideal for sewing medium to heavyweight leather, upholstery, canvas, and synthetics.
Needle up or Needle Down
Are you tired of stopping your work to move the handwheel? The 4020SW includes a programmable needle positioner to stop the needle in the up or down position. This eliminates the need to pause your work and turn the handwheel.
Features

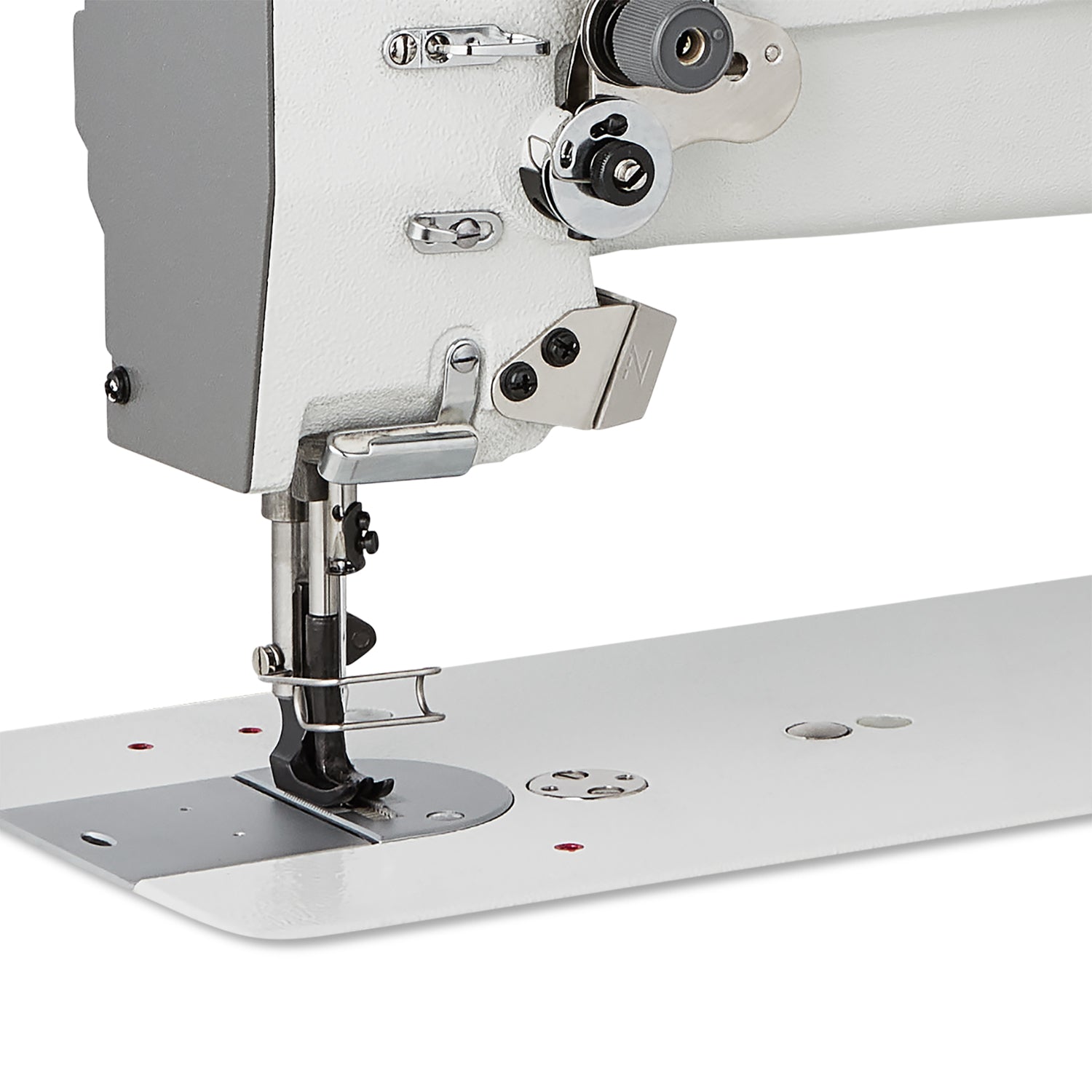

A Half Stitch at a Time
With a simple press of a button, the 4020SW allows for index stitching. Perform a simple half stitch for precision stitch control.

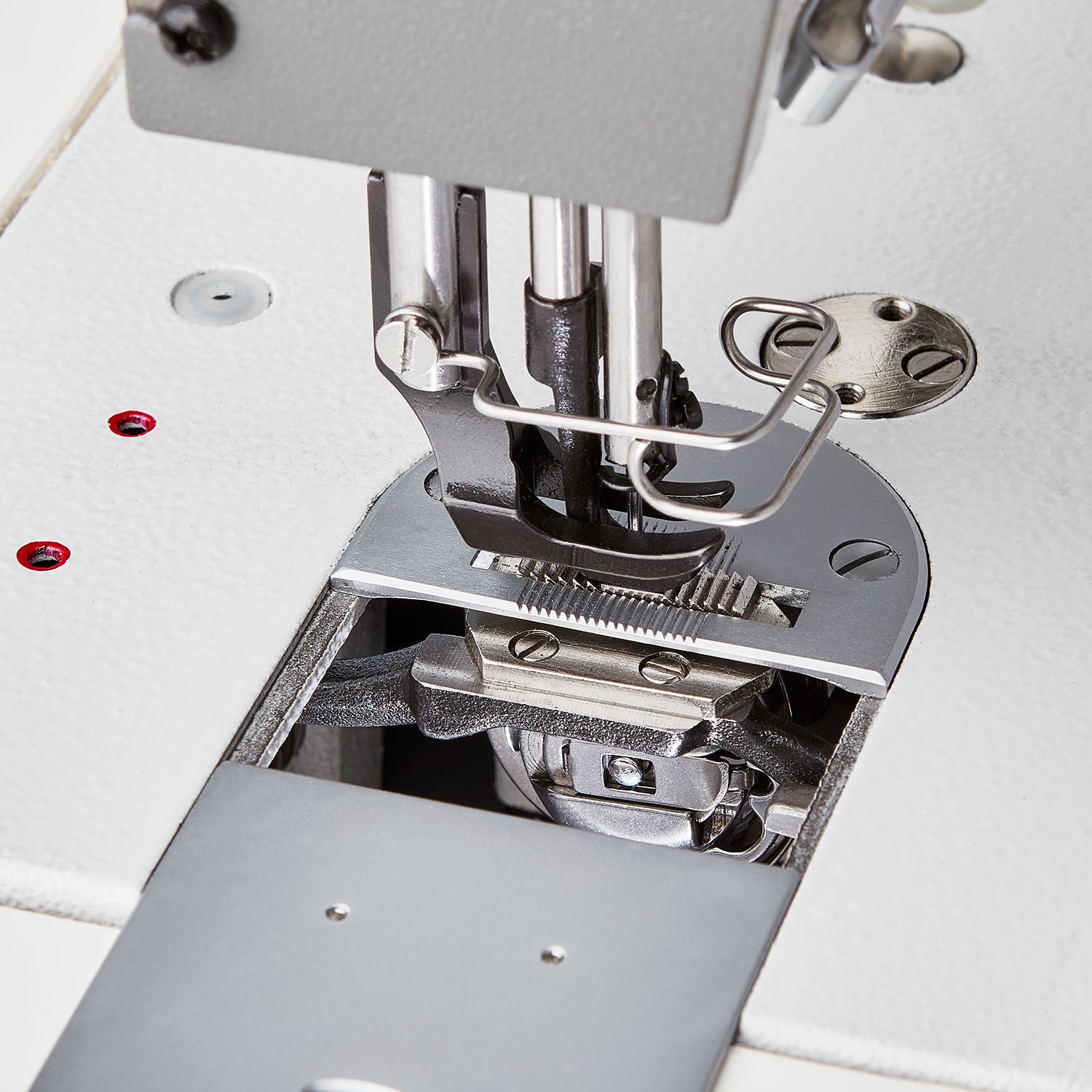

Side Load Bobbin
The 4020SW’s vertical hook allows for a side load for a smoother, more efficient sewing experience.

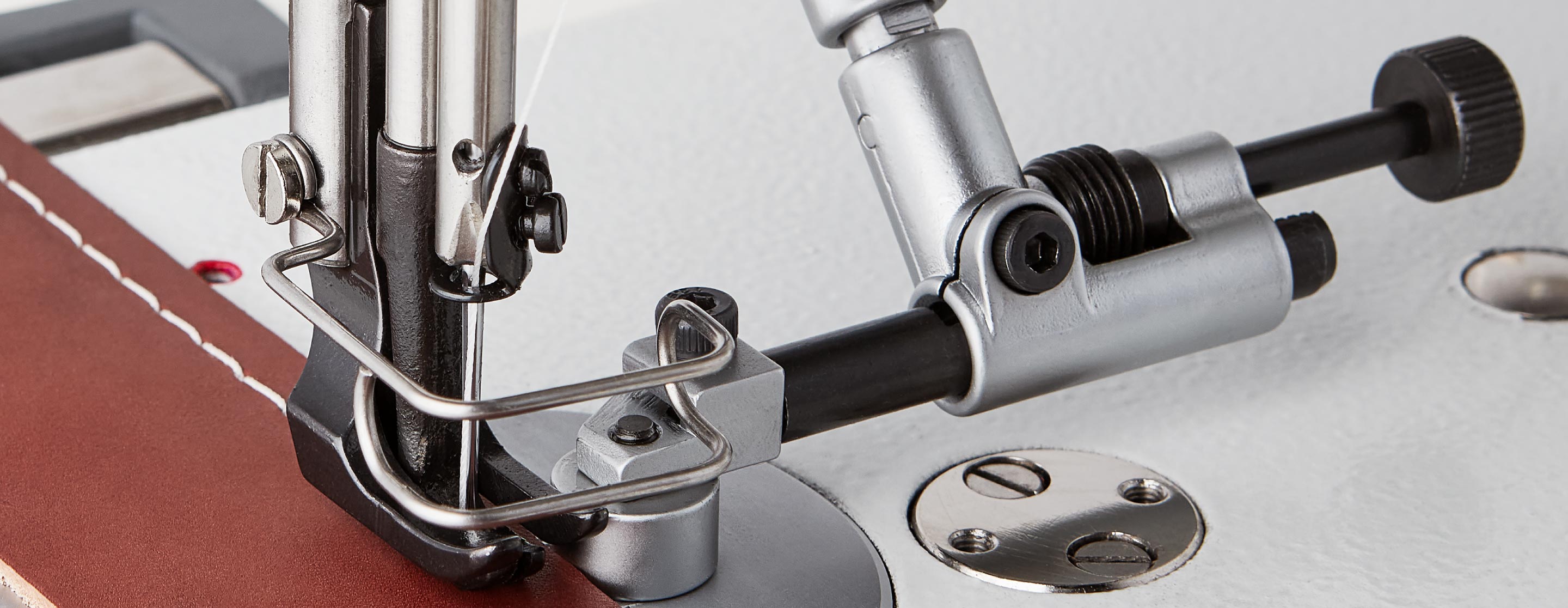

Edge Roll Guide
The adjustable edge roll guide is a very handy device for ensuring a straight seam and will help speed up the sewing process.
Built in Bobbin Winder
For added convenience, the bobbin winder on the 4020SW is built on top of the machine head.
UberLight™ Flex Led Light
The perfect add on light is included at no extra charge for the 4020SW making it both, a great sewing machine, and a great value.
Superior Stand
Competitors typically choose to cut corners when it comes to the stand components - we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32" steel.
