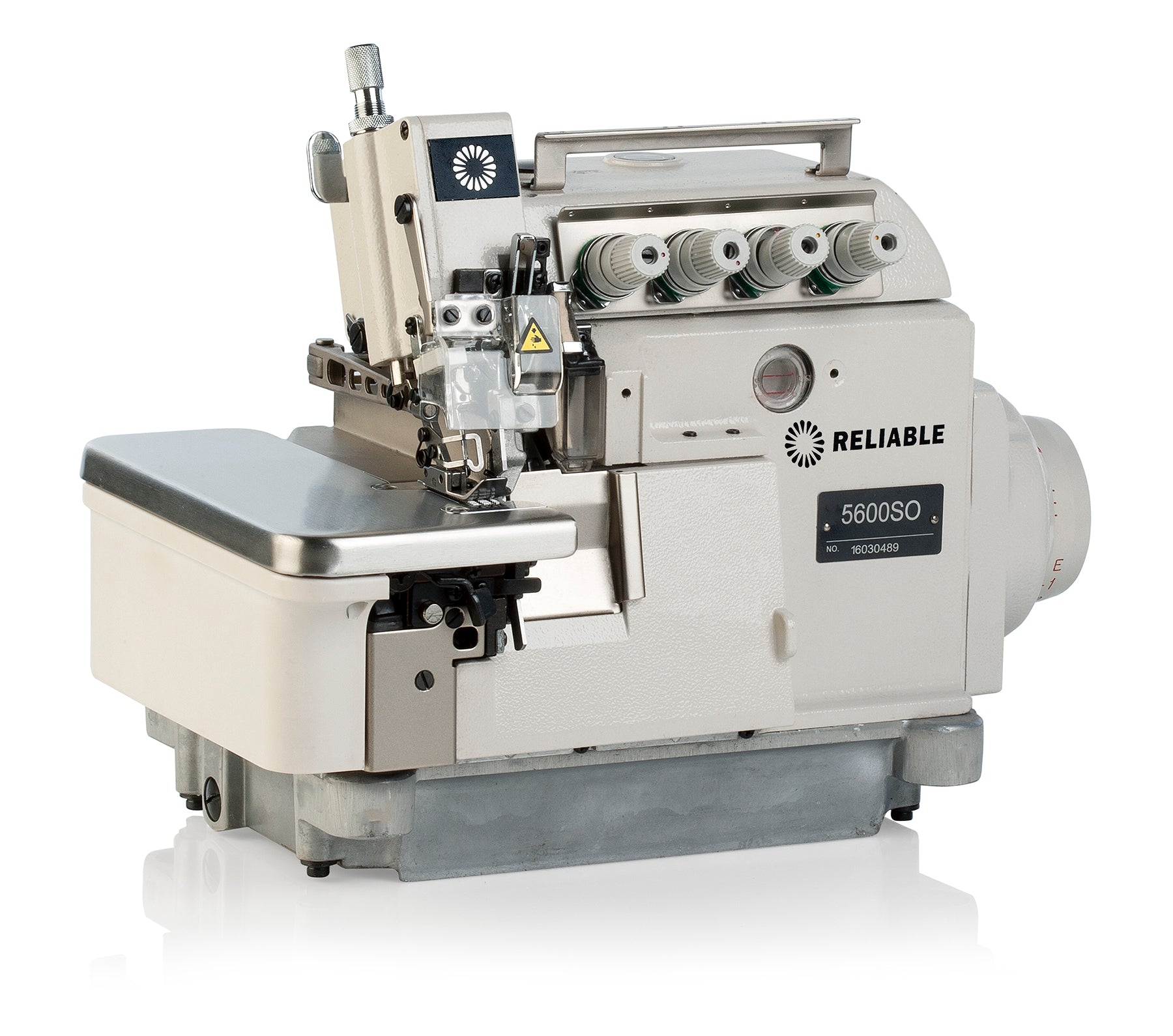

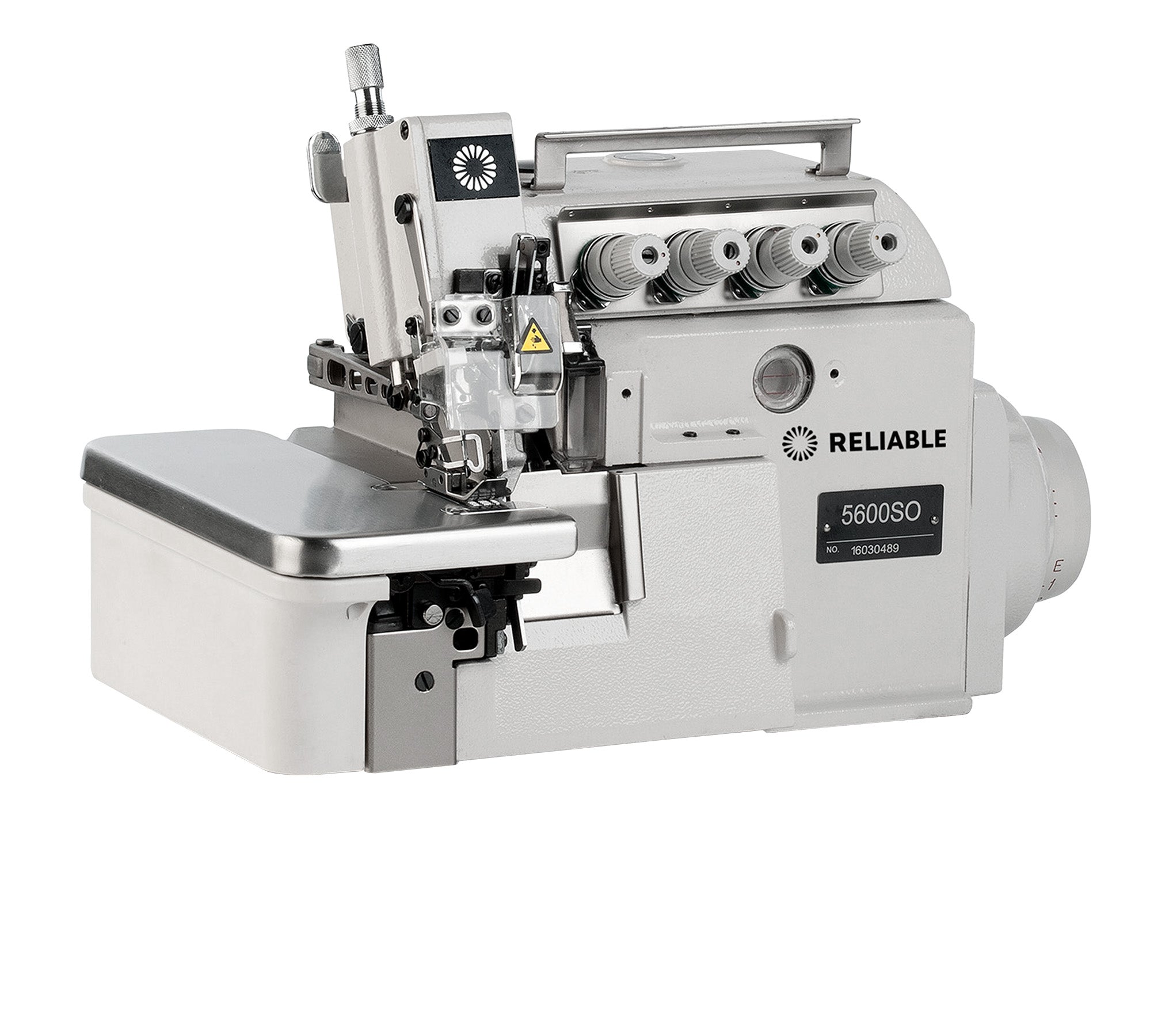

For sewing all kinds of woven and knit fabrics, the 5600SO with differential feed, stitch length regulator and fully automatic lubrication offers the whole package. Low noise and vibration design, outstanding build quality and reliability.

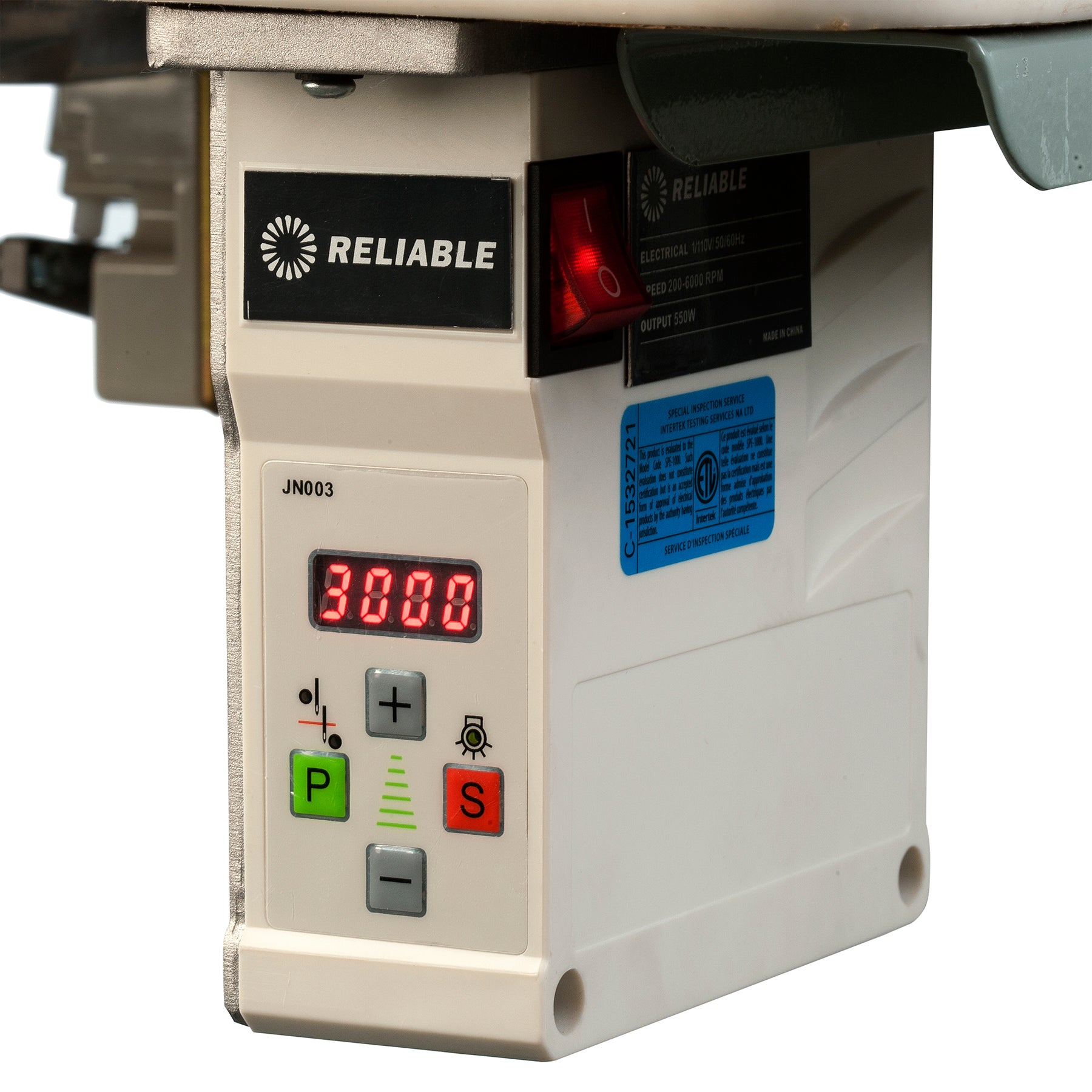

Programming your 5600SO is simple with the digital control panel. Situated within reach, the motor can be programmed for your required speed.

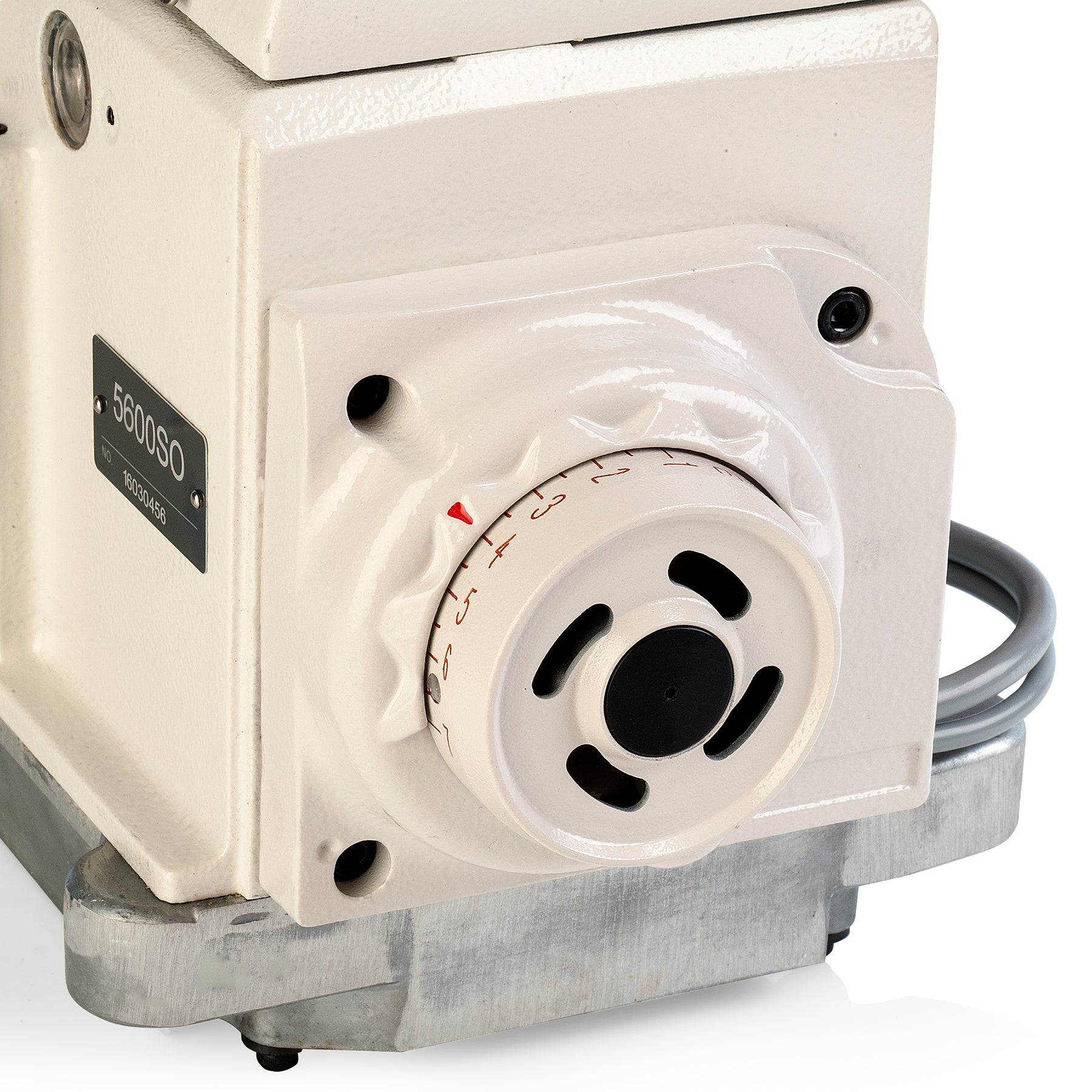

The 5600SO harnesses the latest technology with a built-in servo motor. This motor allows for quiet and smooth operation.

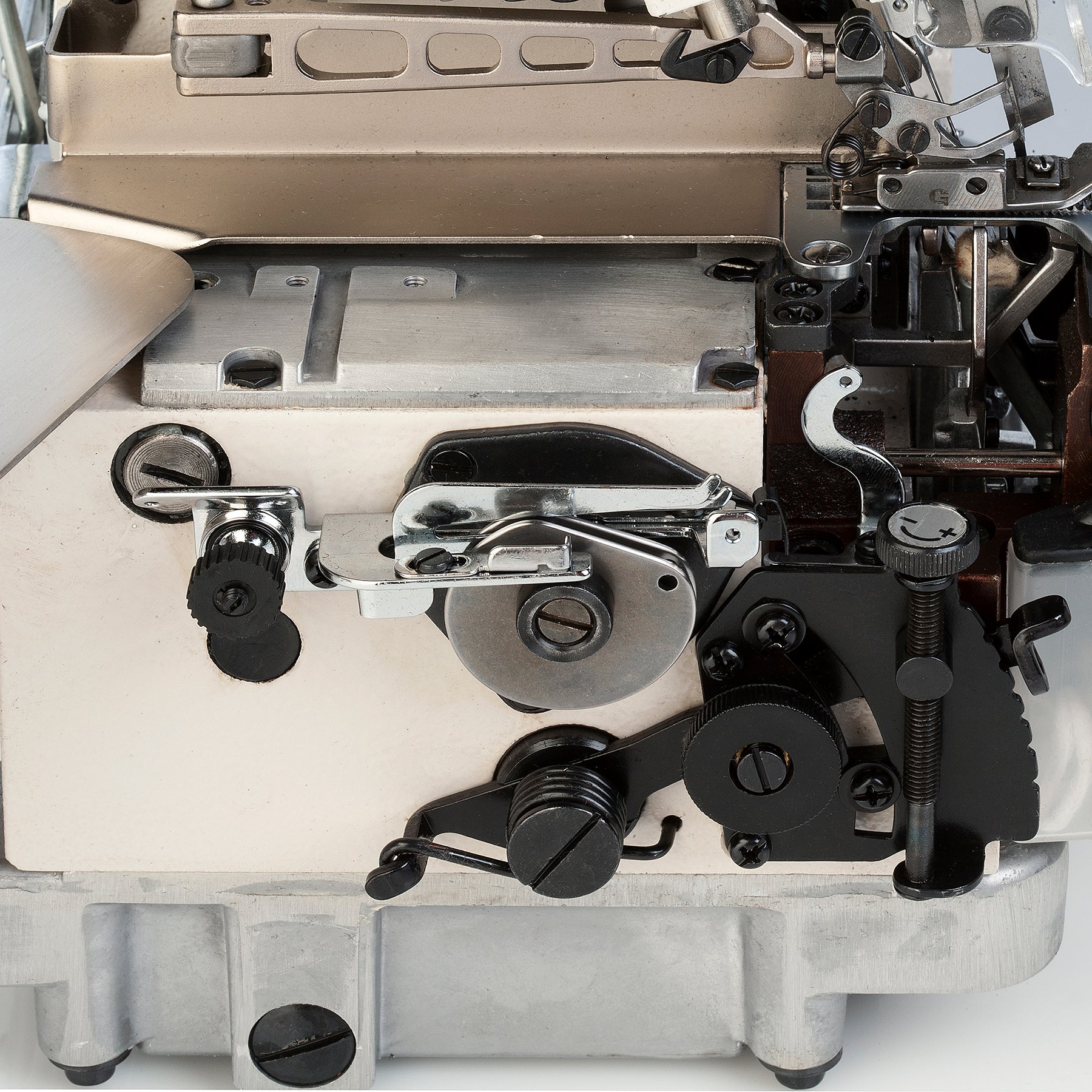

The 5600SO is equipped with a differential feed to allow for sewing stretchy (knit) fabrics.

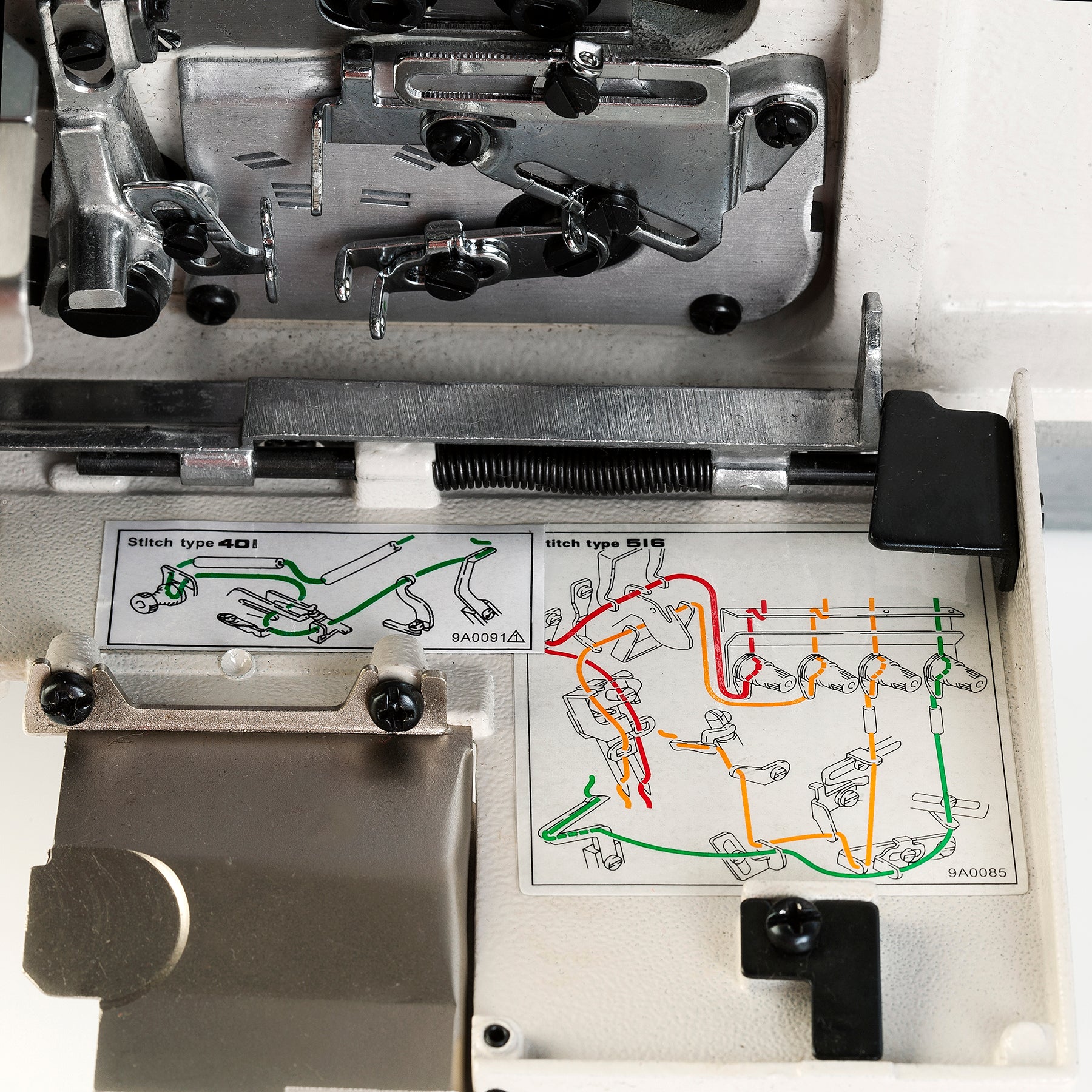

Flipping open the front cover reveals the color-coded threading diagram.

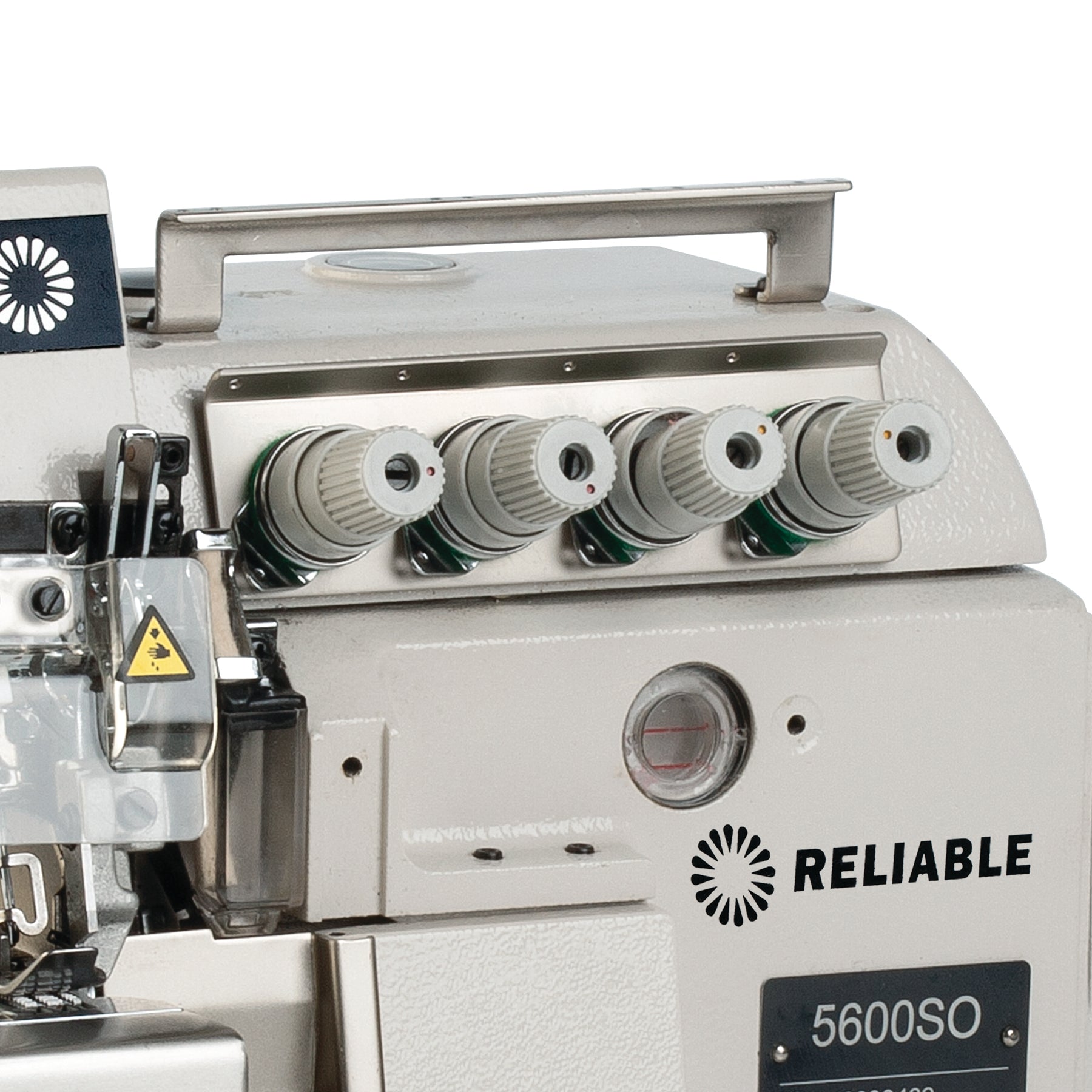

Tension dials are mounted on the front of the 5600SO so you can easily adjust for the ideal stitch.

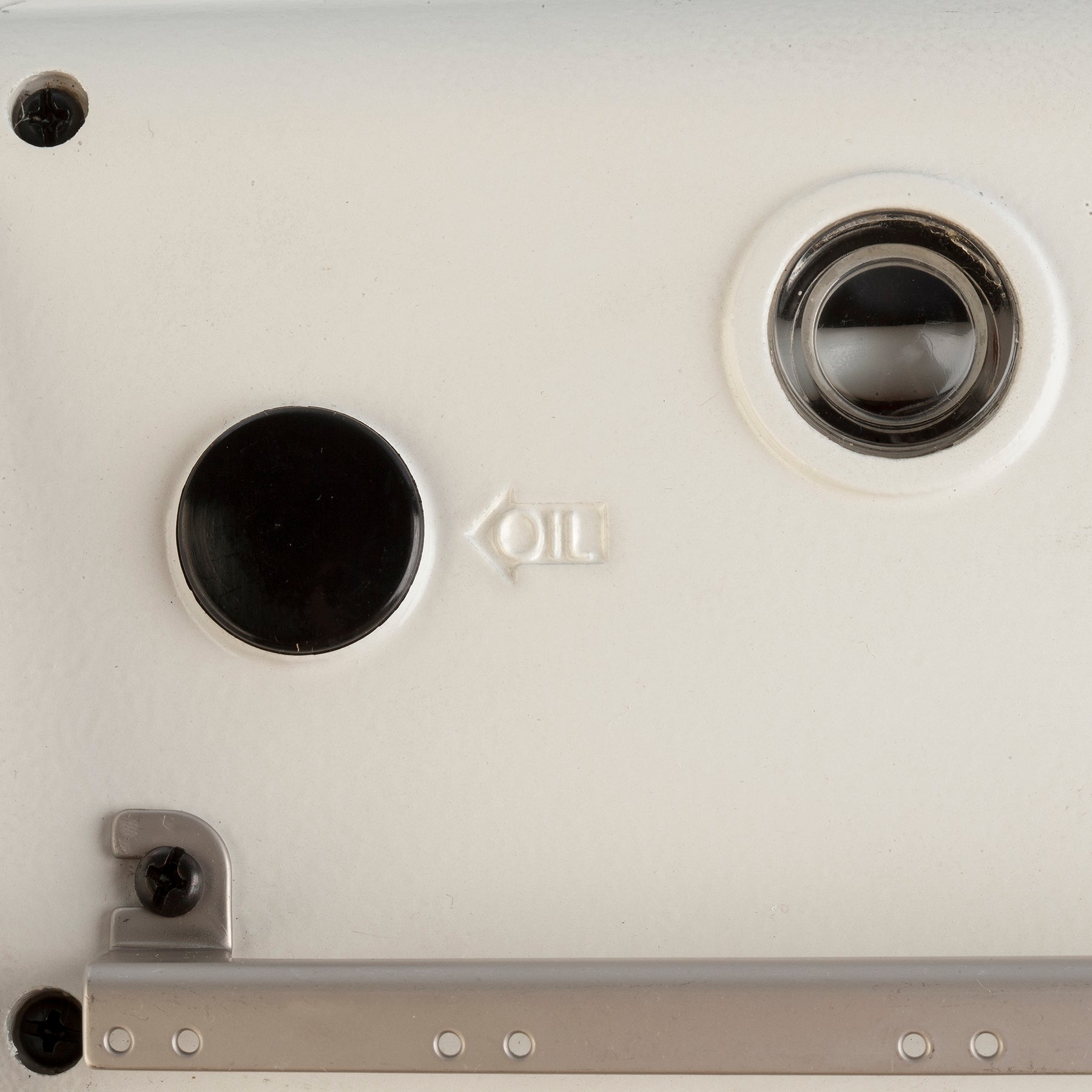

When running, the oil-window on the top of the head indicates that the machines internal pump system is working.
Others skimp on the stand components, we don’t. We use only 100% plywood in our tabletops (not cheap particle board) and our legs are made from heavy-duty 3/32" steel.
Maximum sewing speed 6,000 rpm
Presser foot lift 0.22” / 5.5 mm
Max stitch length 0.15” / 3.8 mm
Needle gauge 0.12” / 3 mm
Overedging width 0.20” / 5 mm
Overall seam bite 0.31” / 8 mm
Differential ratio 1:08 – 1:19
Needle bar stroke 0.93” / 23.7 mm
Needle system #b27
