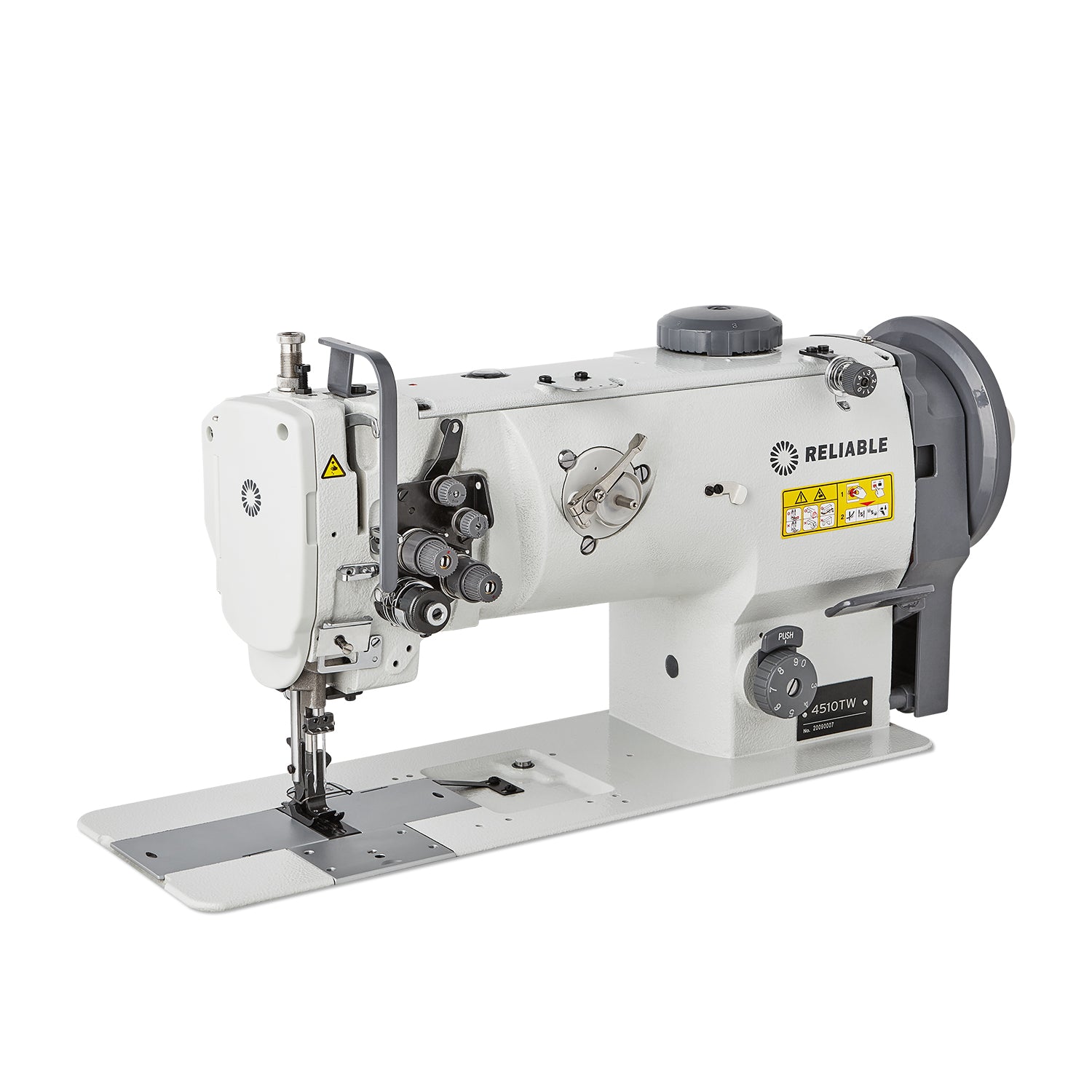

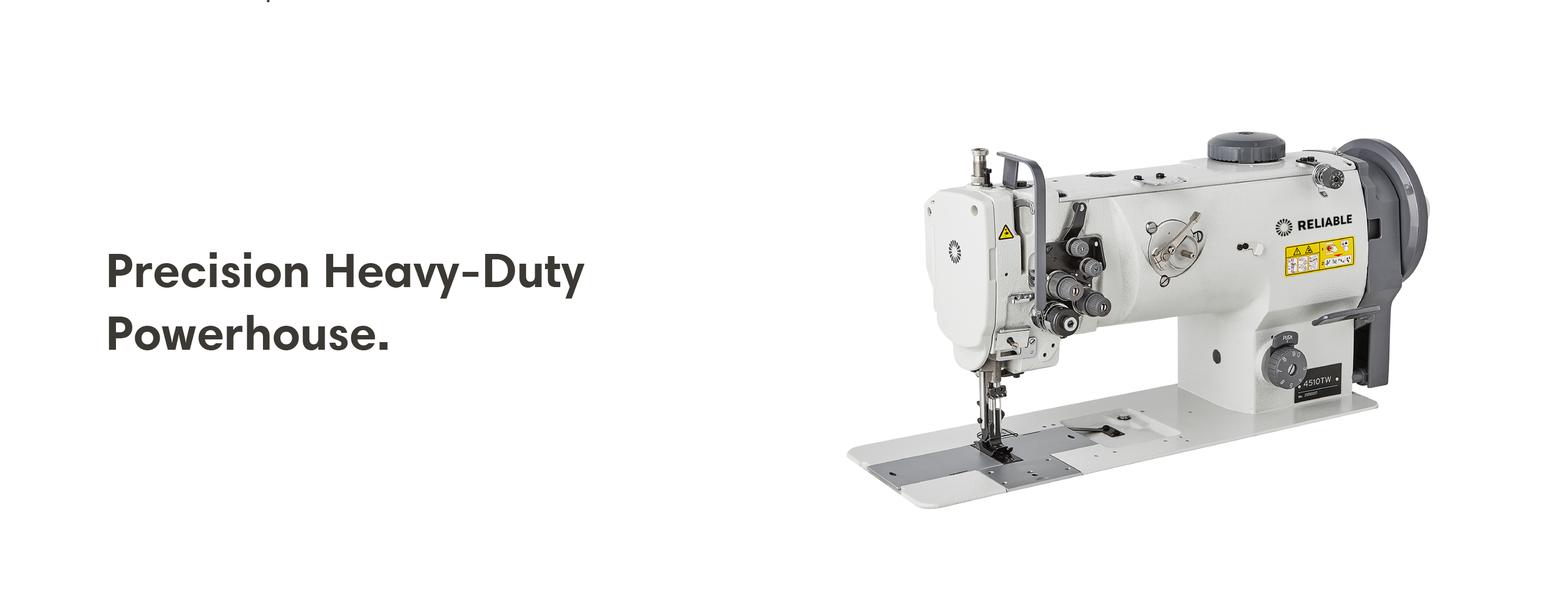

Lockstitch 4510TW

Lockstitch 4510TW

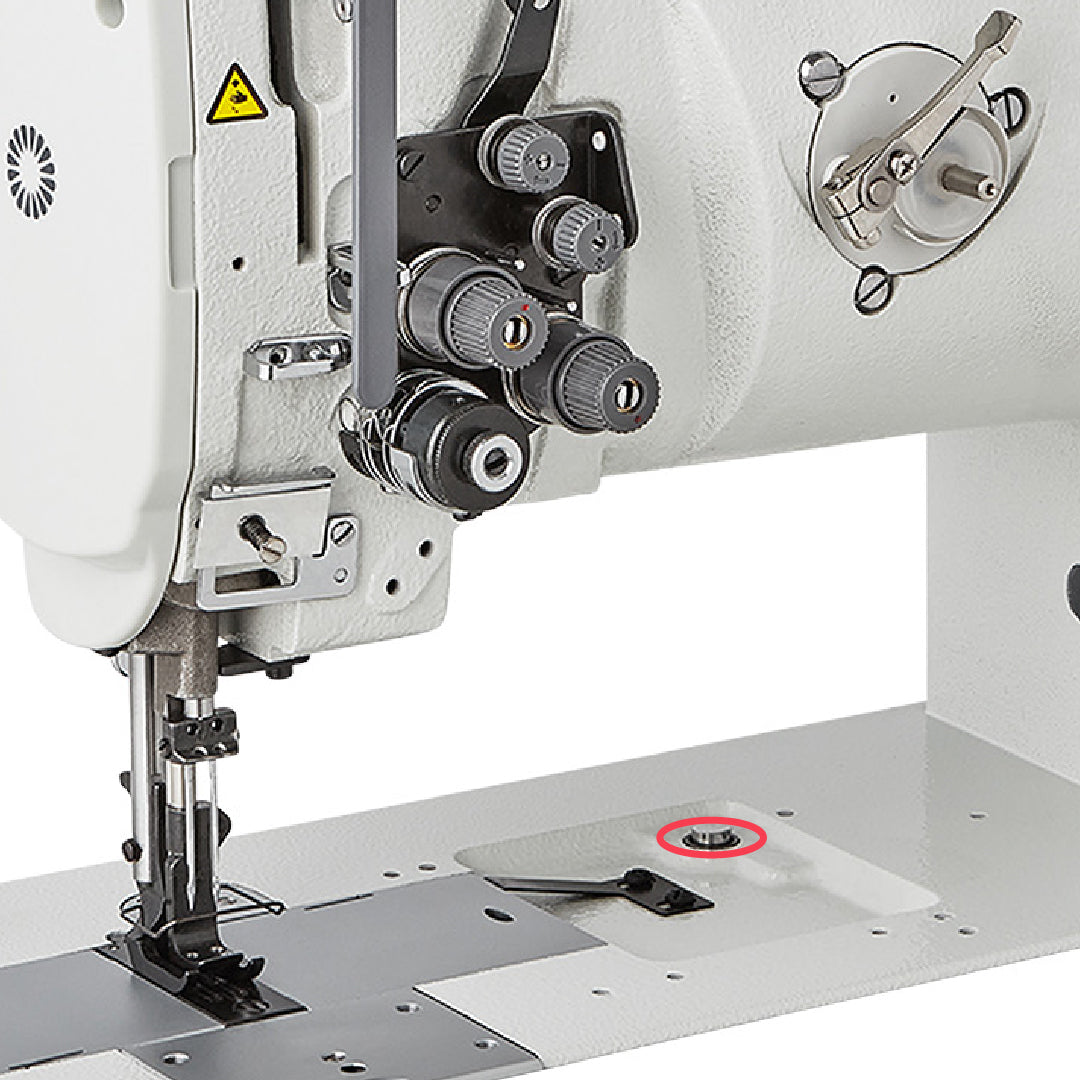

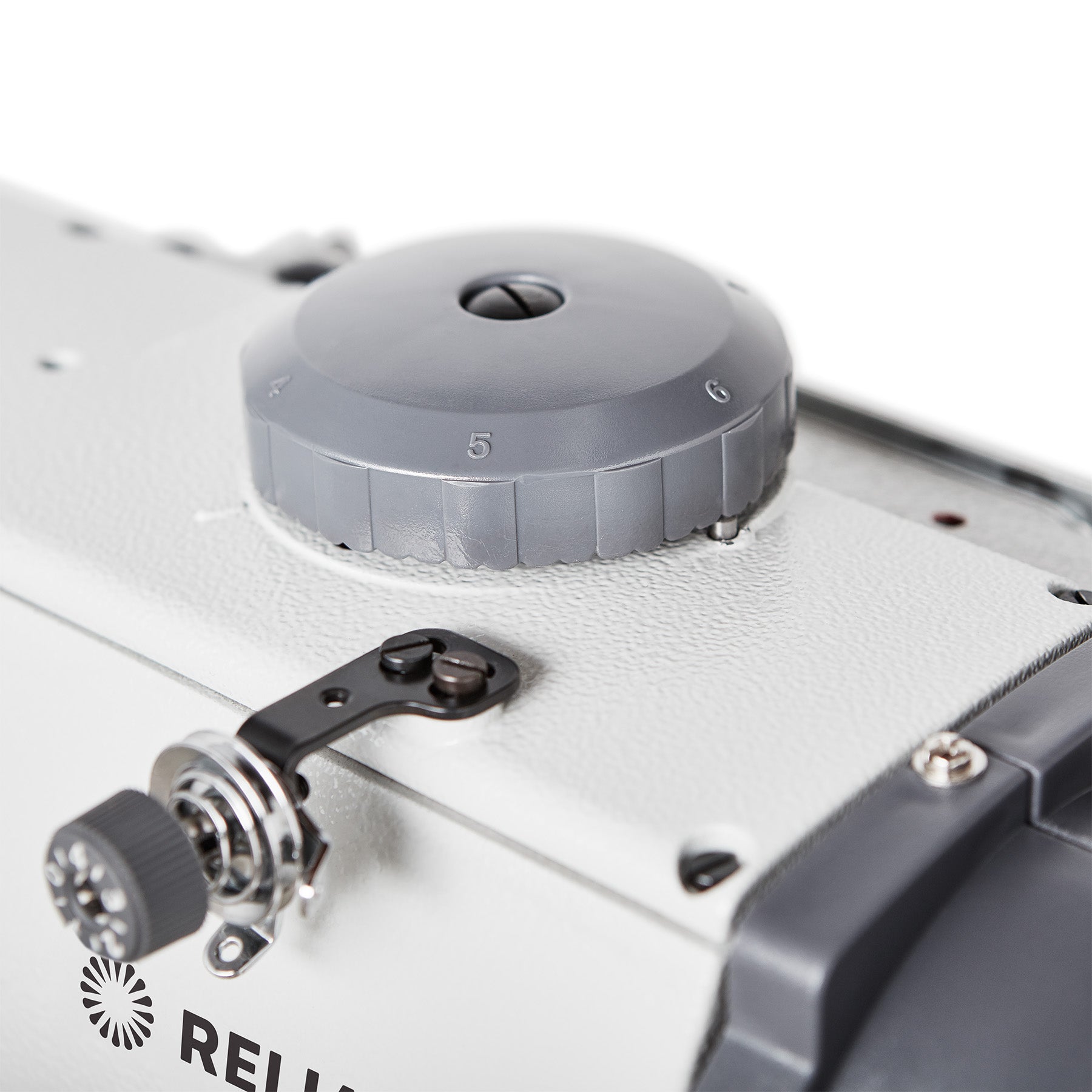

Foot height adjuster permits you to raise and lower the walking foot.

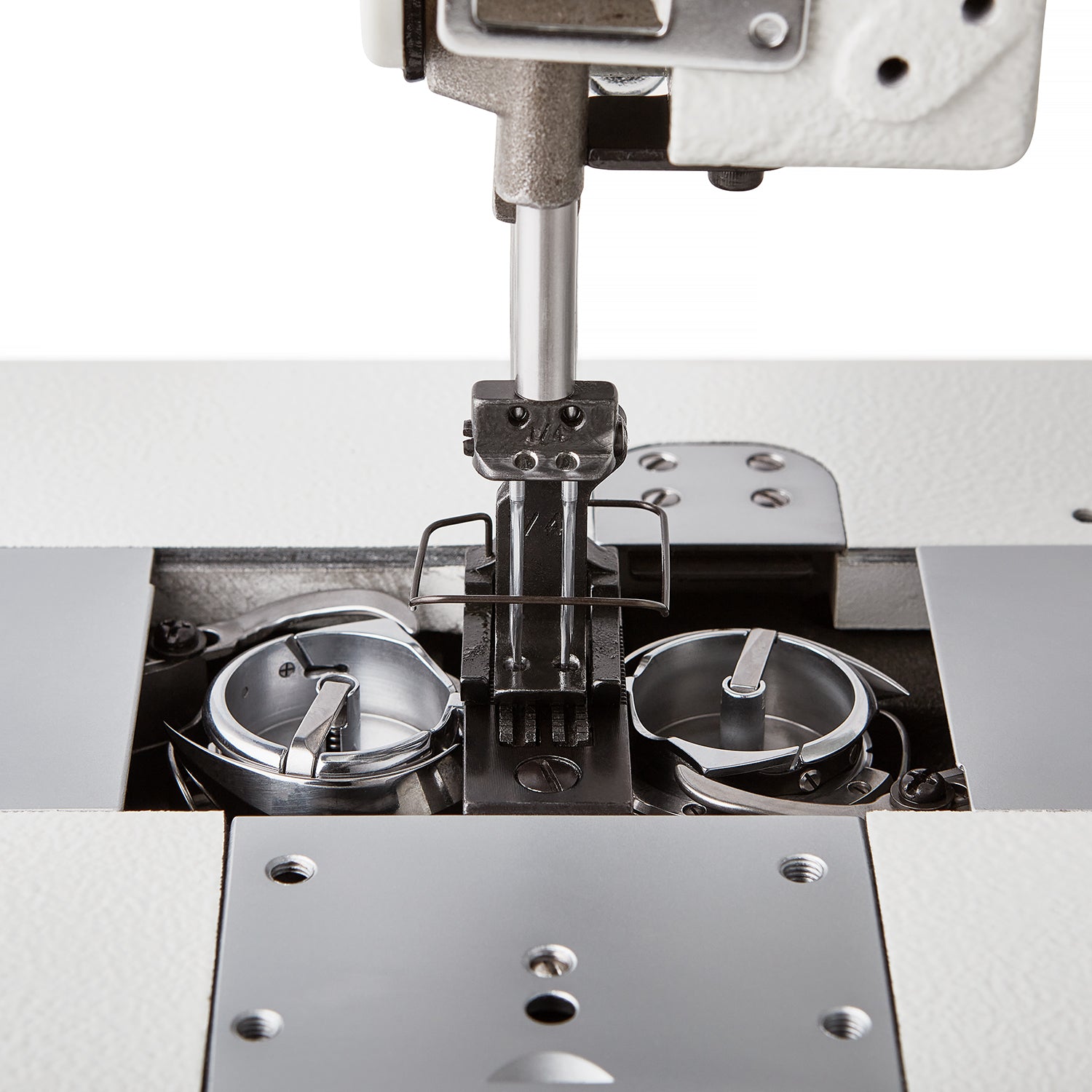

Features a drop-in bobbin for heavier materials.

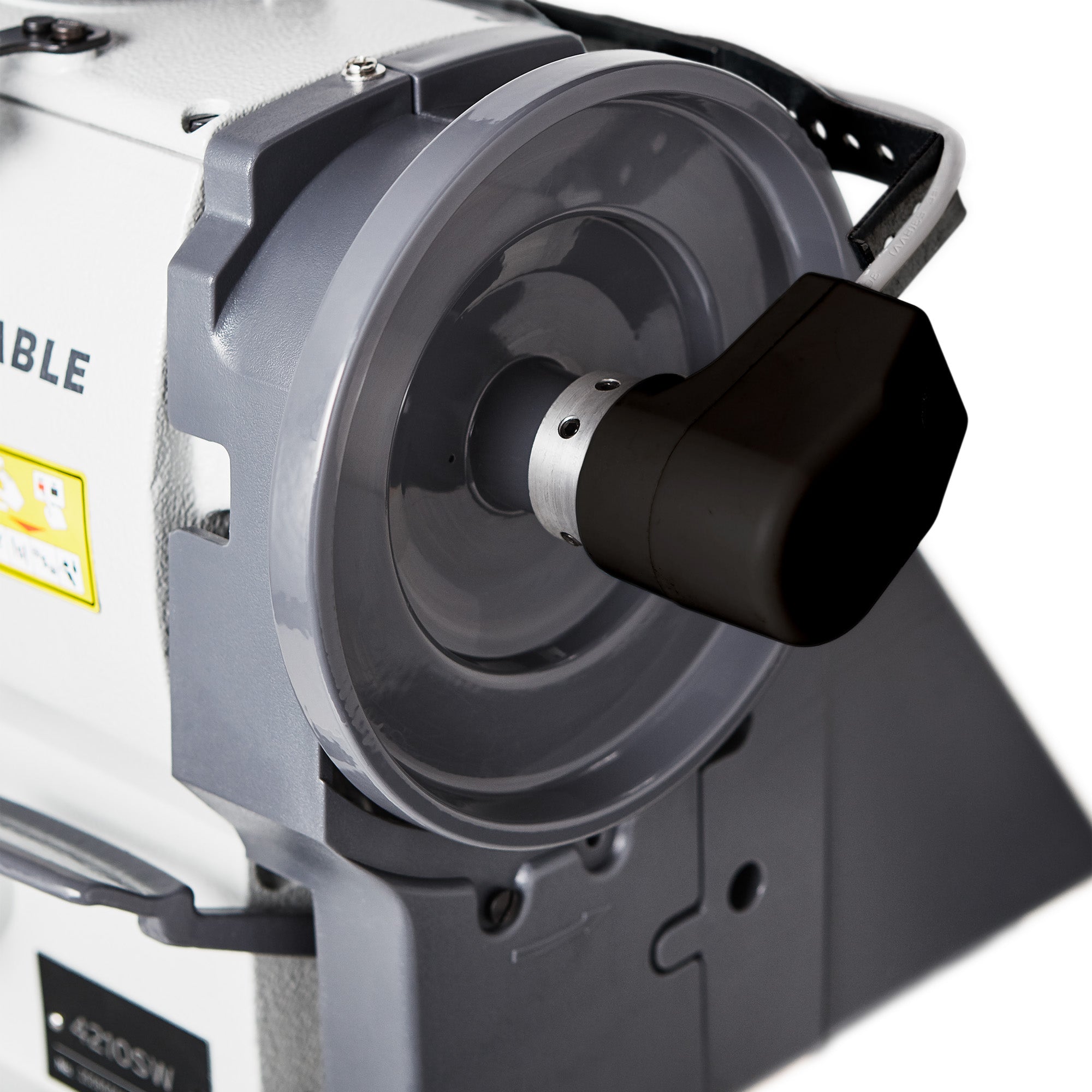

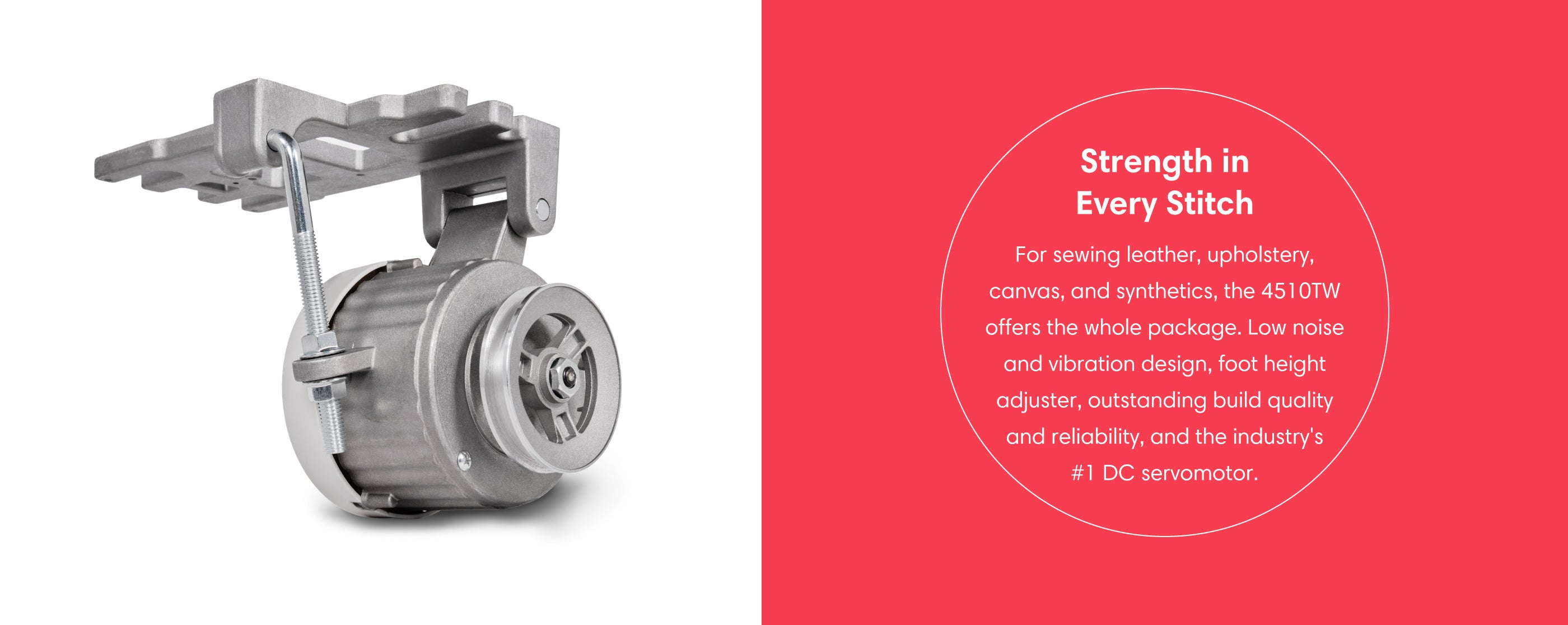

SewQuiet Servomotor with Synchonizer

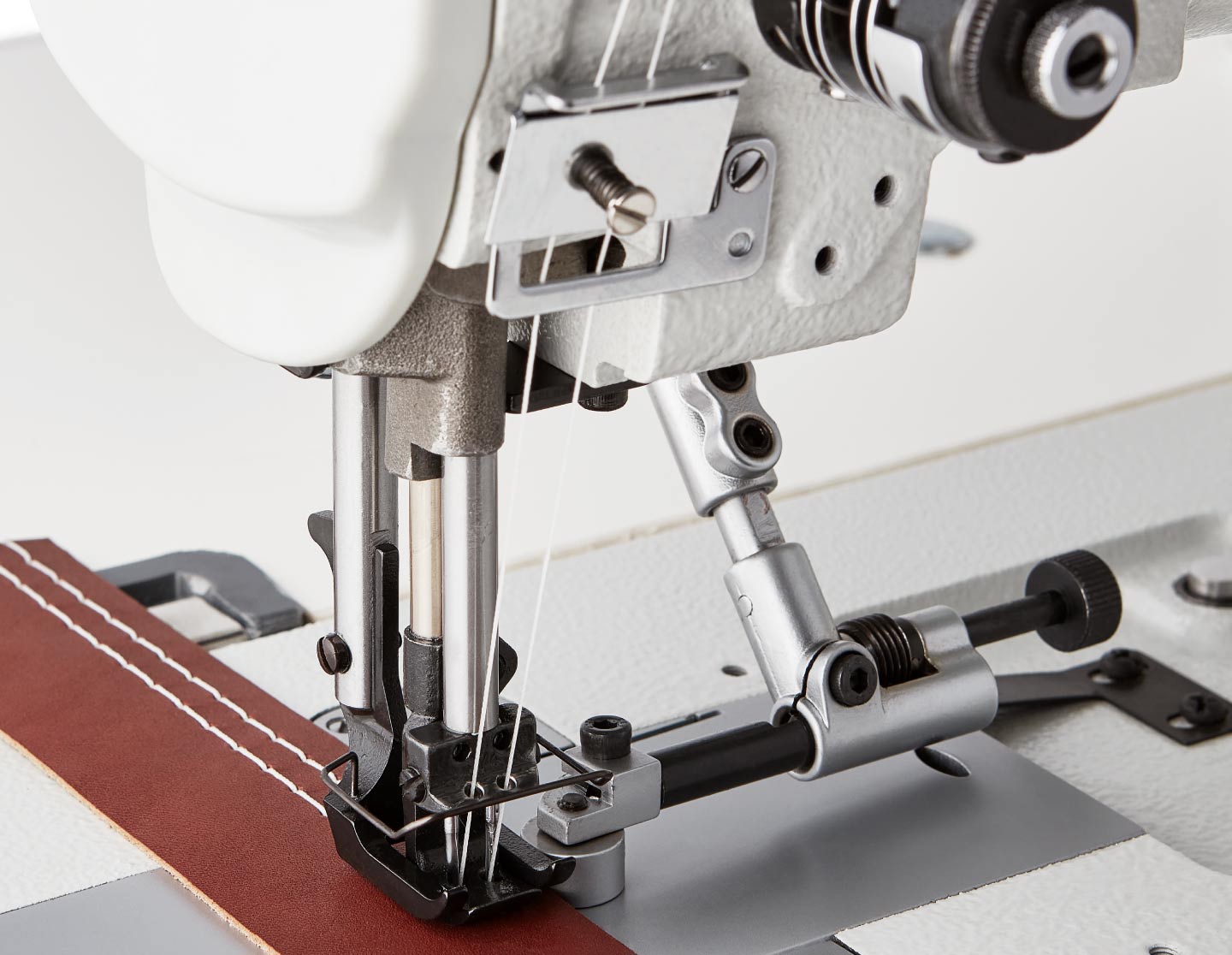

Optional 1/4" Roll Edge Guide

Includes UberLight Flex Sewing Light

Ships fully assembled, tested, and sewn-off

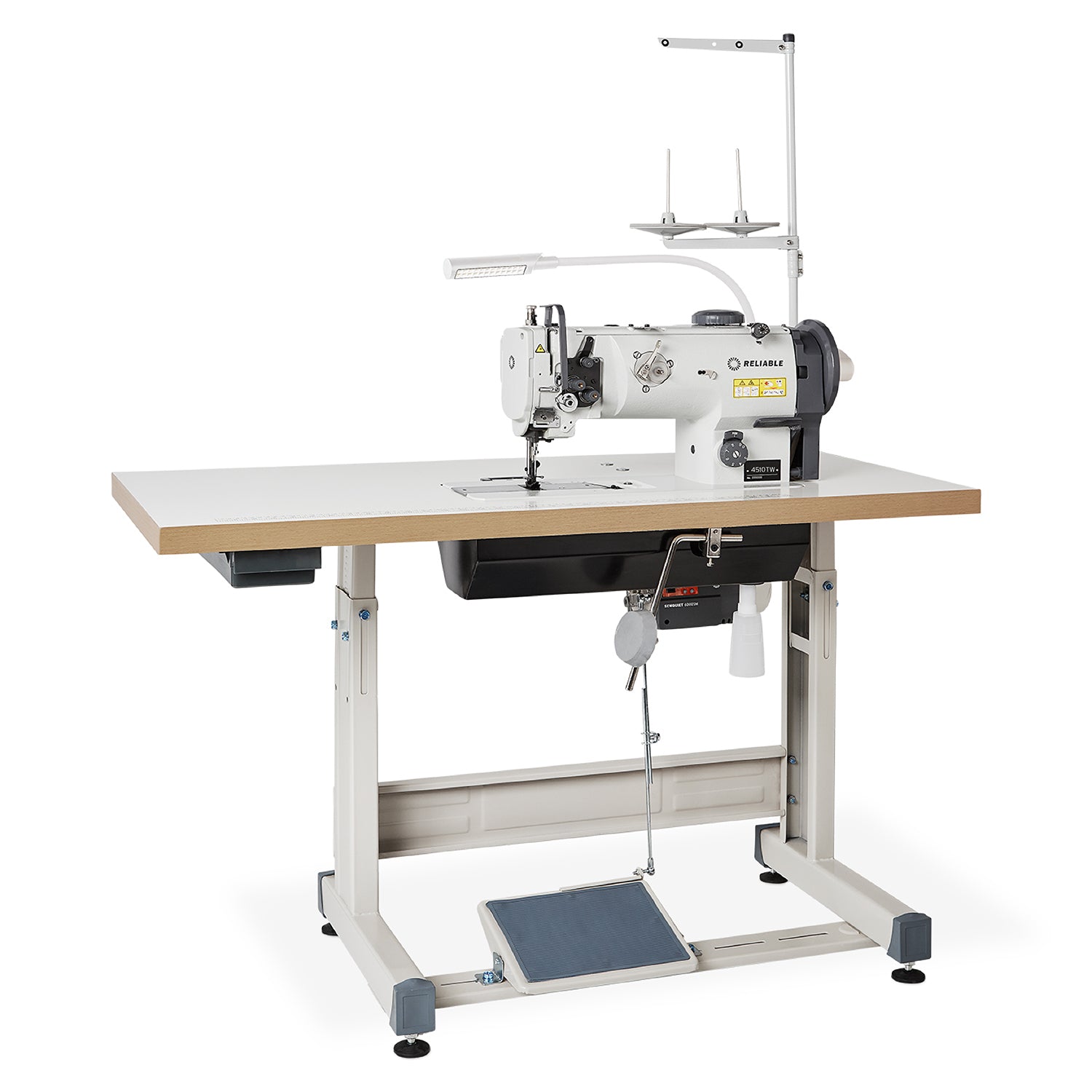

Includes a high-quality stand and table top.

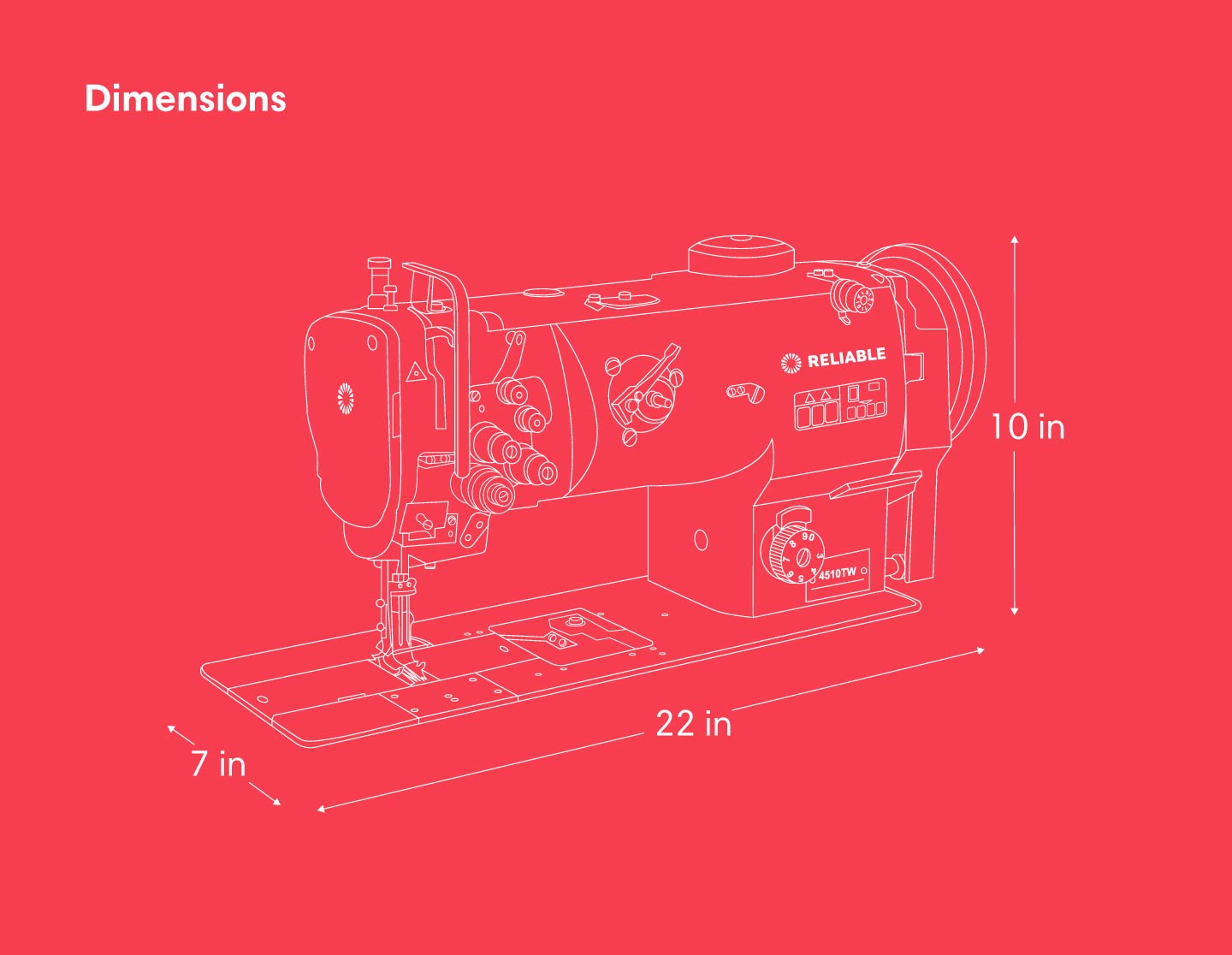

Head Dimensions 22" x 7" x 10"
55.9 x 17.8 x 25.4cm

Pallet Dimensions 48" x 40" x 40"
121.9 x 101.6 x 101.6cm


Stitch Length 0 - 9mm

Needle Bar Stroke 36mm

Needle System # 135 x 17

Work Space

Foot Lift 8mm

Needle Gauge 1/4" Standard, other options available

RPM 2000

Electrical 110V / 120V 60 Hz


Twin Needle Lockstitch, Walking Foot W/step Height Adjuster

For heavier work, where two needles are required; we recommend the 4500TW walking foot lockstitch machine. Top and bottom feed and a higher foot lift allow it to sew from medium to heavyweight fabric.

For sewing leather, upholstery, canvas, and synthetics, the 4510TW offers the whole package. Low noise and vibration design, outstanding build quality and reliability, and the industry's #1 DC servomotor.


The Right Tool for the Right Job

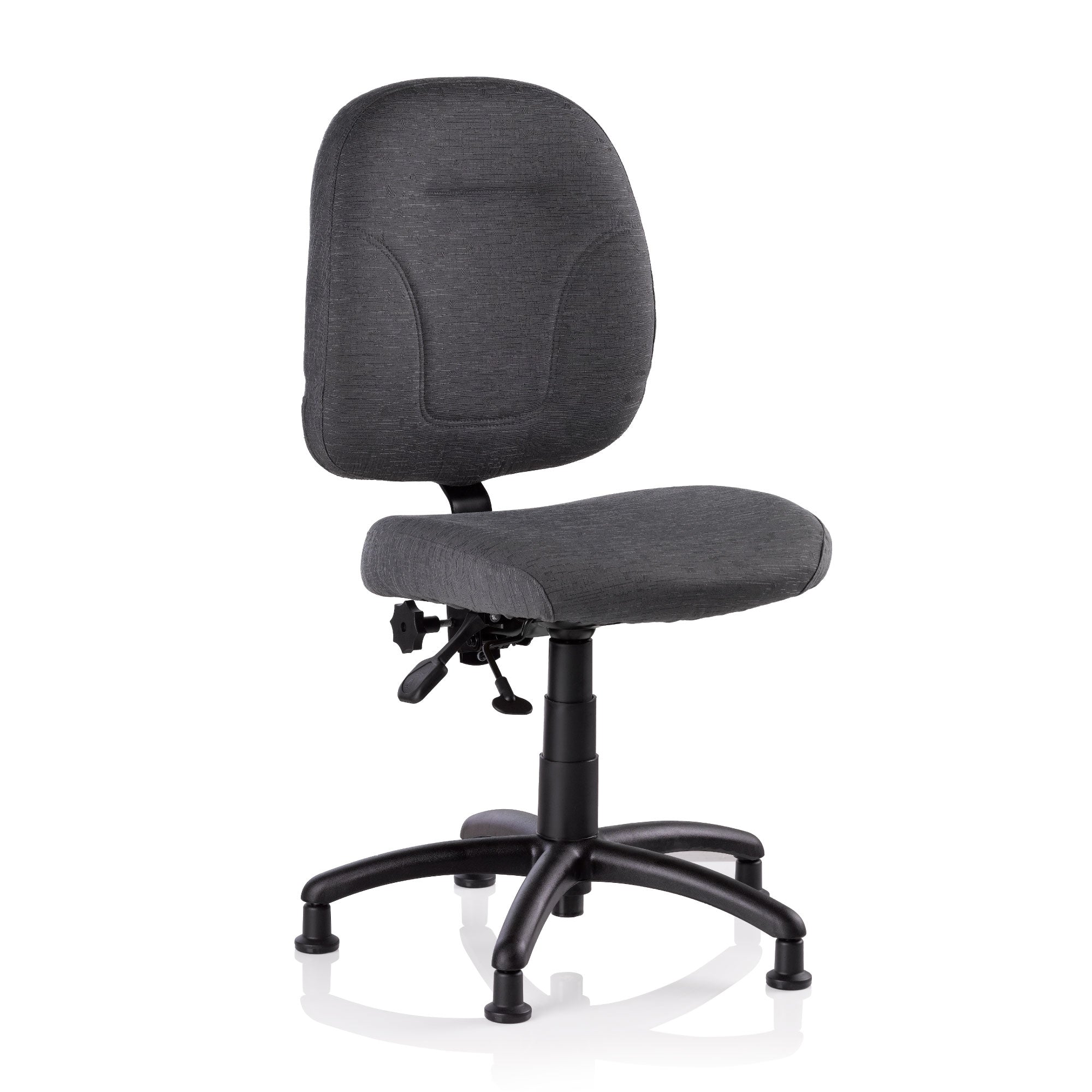

A good quality chair is indispensable for comfortable and supported sewing sessions, particularly during extended periods of sewing. This is why the Reliable SewErgo line of sewing chairs is a perfect choice.
