Specifications
Utilizes a 12-coil design for increased torque for heavier work.
Offers variable speed control for customizable operation.
Digital Speed Control up to 6000RPM
Built-in overload protection to prevent damage.
Allows clockwise and counterclockwise directions.
Includes a built-in light receptacle for added visibility.
Optional synchronizer available .
Dimensions
Product Dimensions 10" x 9.25" x 6"
25.4 x 23.5 x 15.24 cm
Box Dimensions 13.2" x 11.4" x 8"
33.5 x 29 x 20 cm
Operation
Electrical 120V / 550W / 4.6 amps
H.P. 3/4
Pulley Type Aluminum
Pulley Size 60 mm
Drive Shaft Diameter 12 mm
Warranty Limited 1 year
Specifications
Utilizes a 12-coil design for increased torque for heavier work.
Offers variable speed control for customizable operation.
Digital Speed Control up to 6000RPM
Built-in overload protection to prevent damage.
Allows clockwise and counterclockwise directions.
Includes a built-in light receptacle for added visibility.
Optional synchronizer available .
Dimensions
Product Dimensions 10" x 9.25" x 6"
25.4 x 23.5 x 15.24 cm
Box Dimensions 13.2" x 11.4" x 8"
33.5 x 29 x 20 cm
Operation
Electrical 120V / 550W / 4.6 amps
H.P. 3/4
Pulley Type Aluminum
Pulley Size 60 mm
Drive Shaft Diameter 12 mm
Warranty Limited 1 year

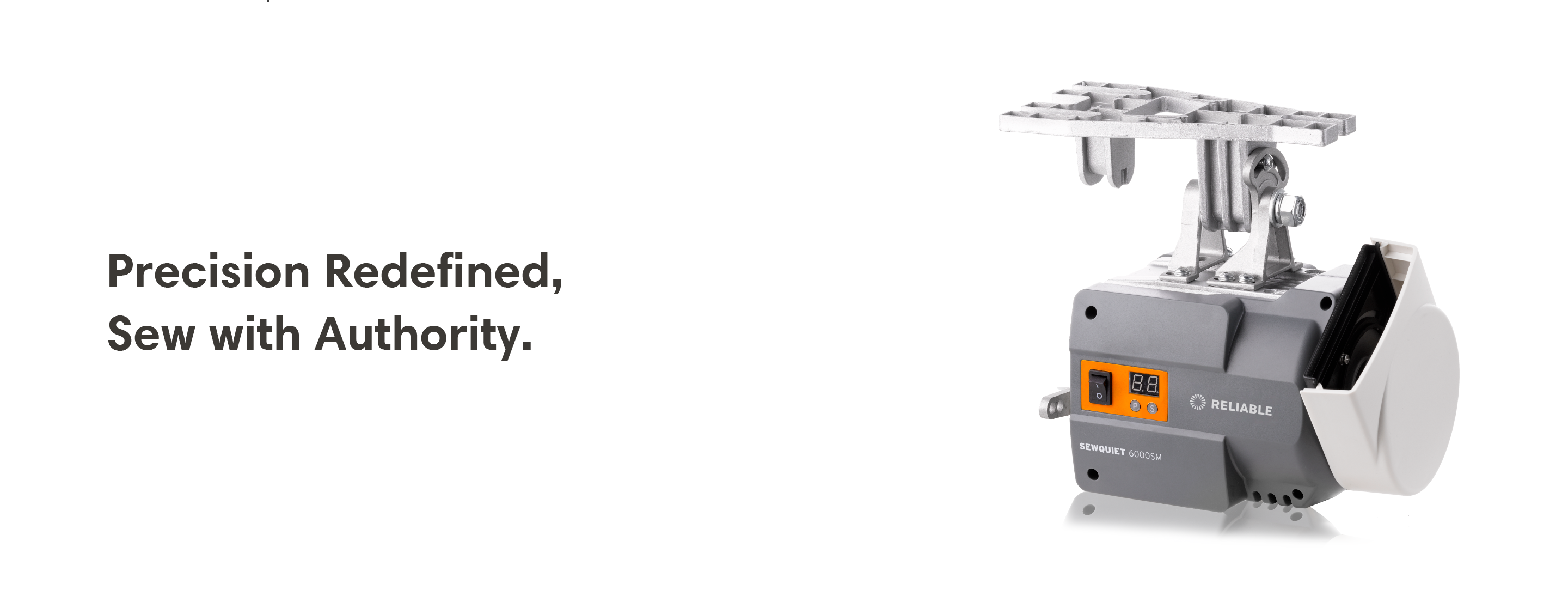

The SewQuiet 6000SM brushless DC servo motor is the only servo motor to incorporate a full 12-coil (vs. 6 or 9) design. This provides unparalleled power and torque, the kind of torque that's needed to work with the toughest materials. (Synchronizer is optional).
Features

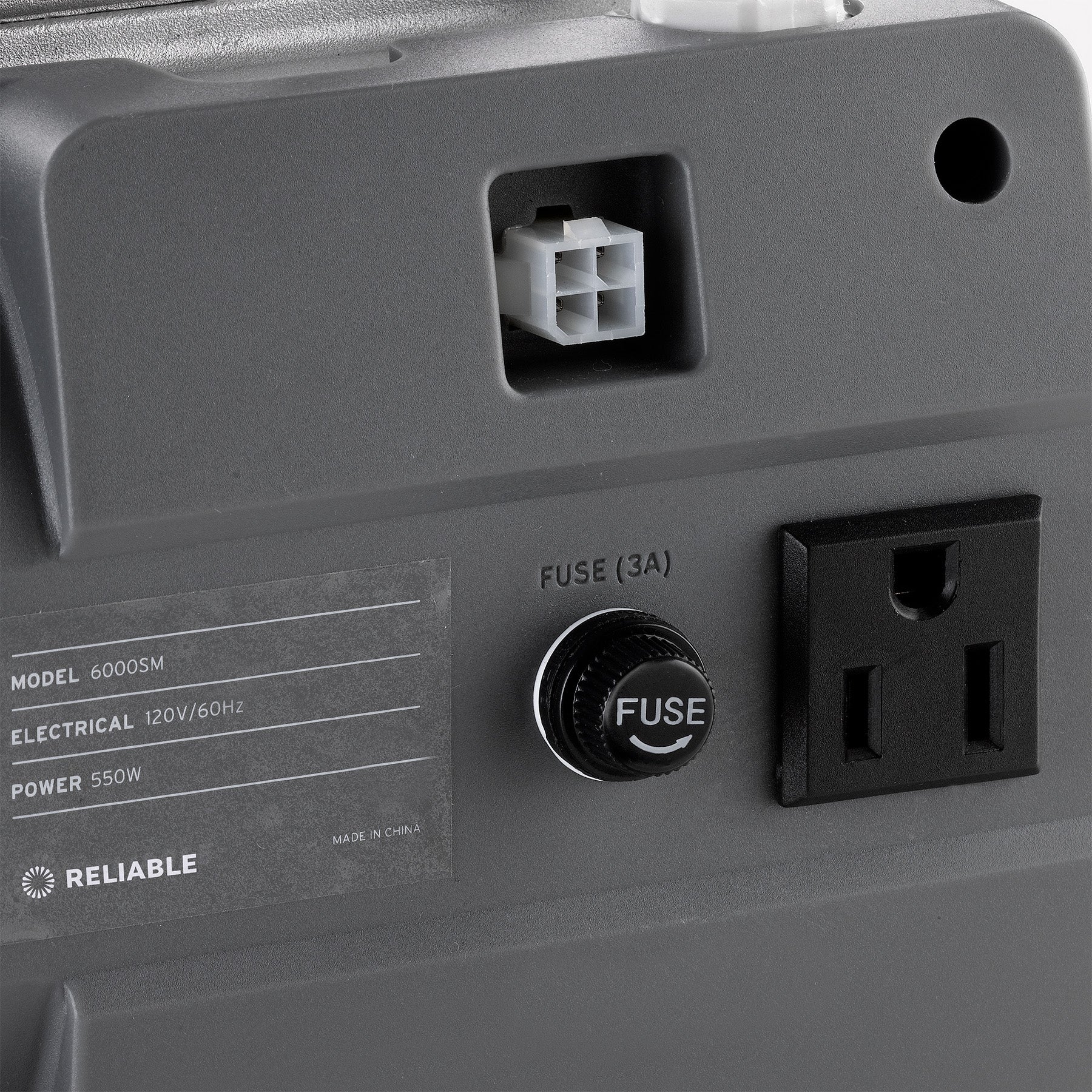

Built-In Light Receptacle
The 6000SM is equipped with a fused and grounded receptacle to plug in an UberLight LED light or a light of your choice.
Note: Not available on 6050SM 220V model. 110V only.
PCB Insulation
PCB insulation houses and protects the internal electrical components of the motor.

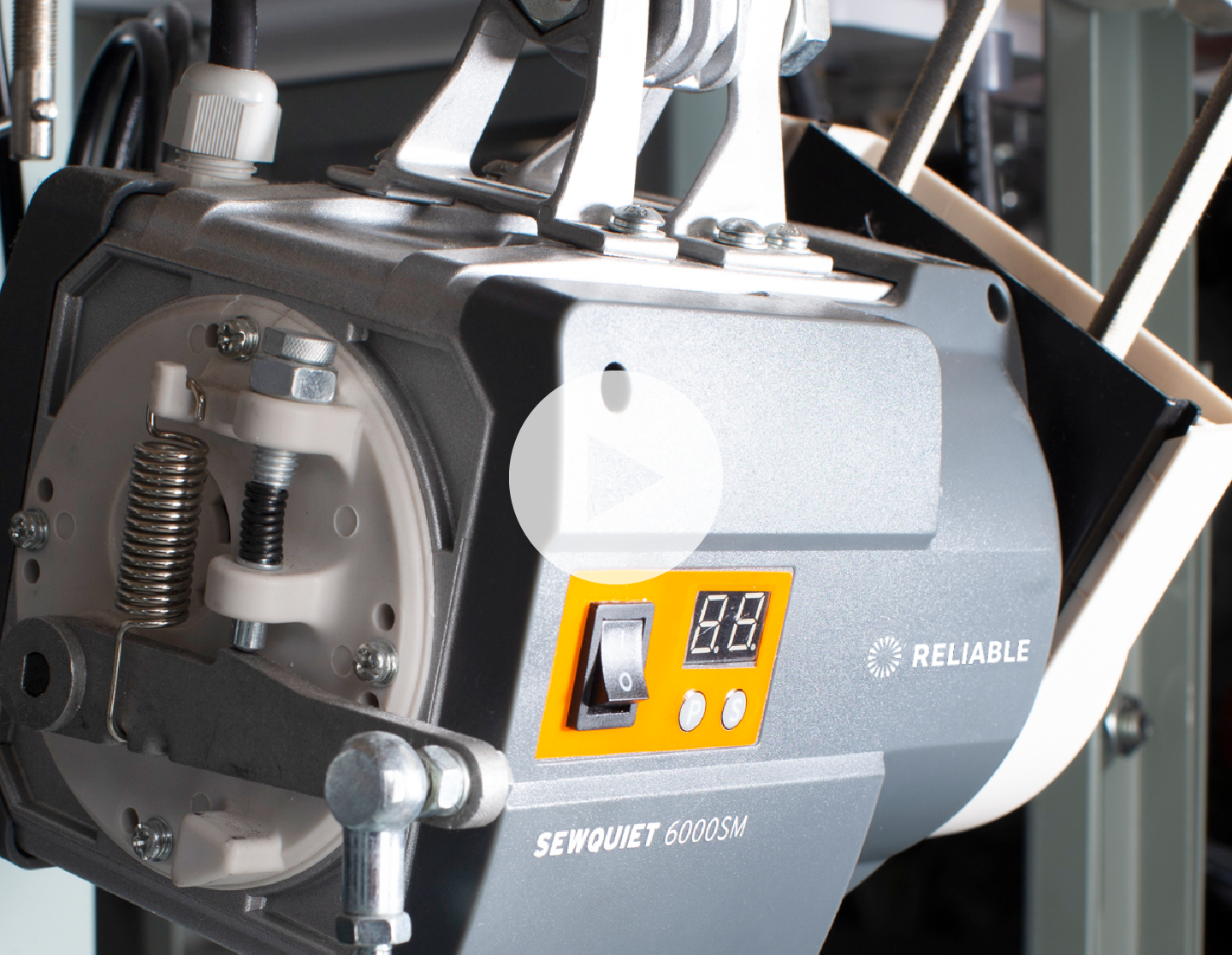

Belt Adjustment
Belt tensioning device is simple and easy to set-up on all sewing machine brands.
